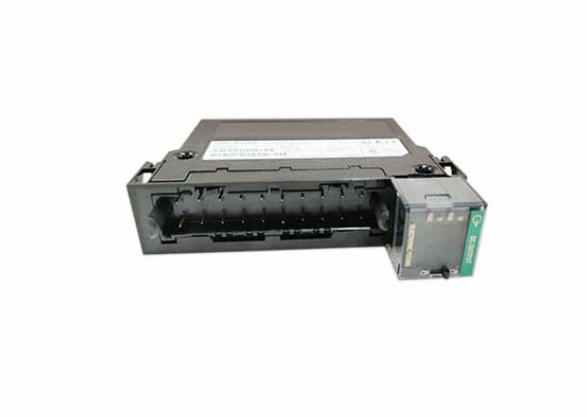

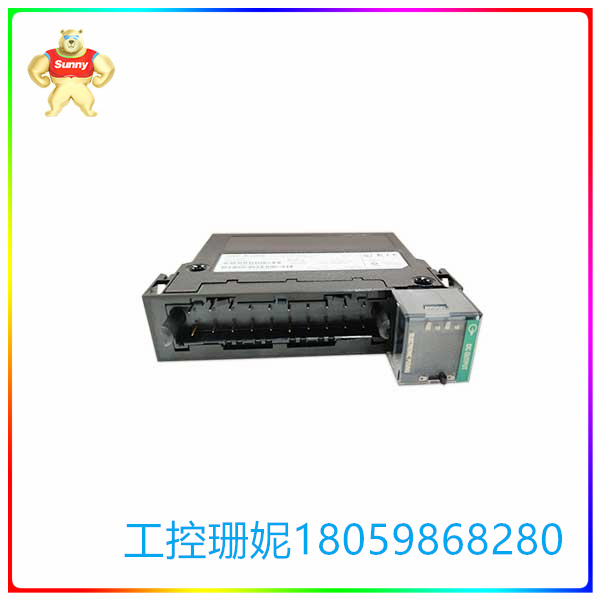

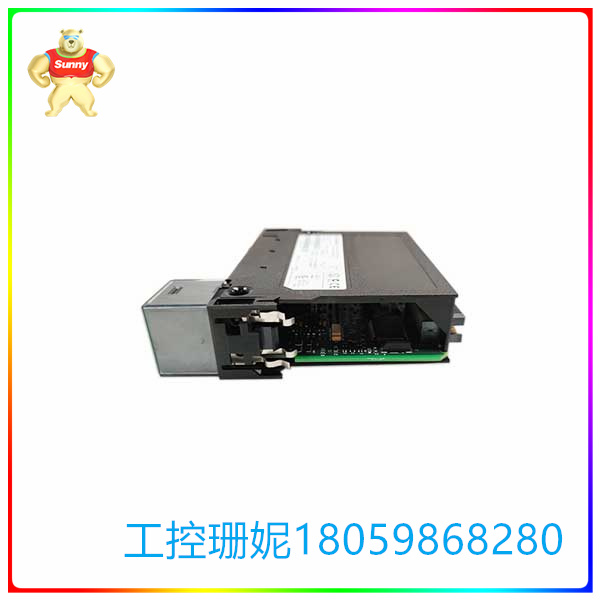

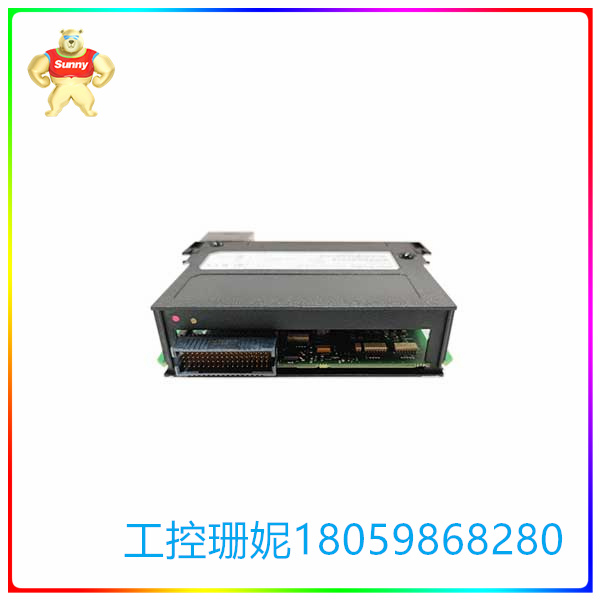

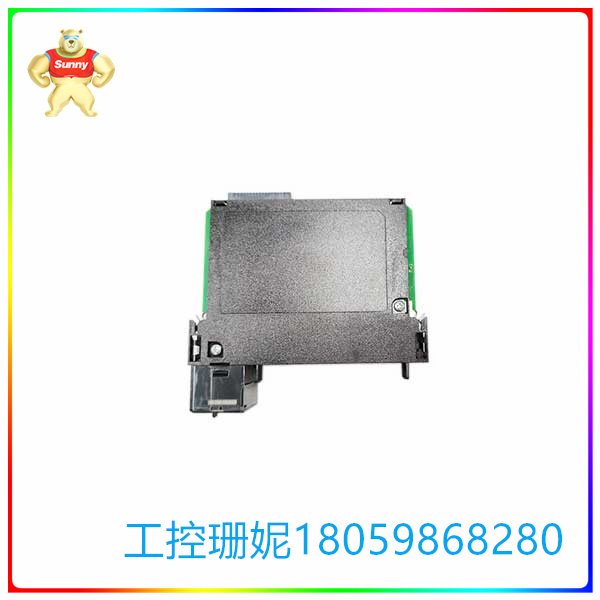

1756-OB16EK 电子熔断器直流输出模块 16 点电子熔断器
【产品详情】
| 制造者 | 罗克韦尔自动化 |
| 品牌 | 艾伦-布拉德利 |
| 零件号/目录号 | 型号：1756-OB16EK |
| 系列 | ControlLogix |
| 模块类型 | 电子熔断器直流输出模块 |
| 输出 | 16 点电子熔断器 |
| 电压 | 12-24 伏直流电 |
| 工作电压范围 | 10-30 伏直流电 |
| 最大输出电流额定点 | 60 摄氏度时为 1 安培 |
| 最大输出电流额定值-模块 | 8 摄氏度时为 60 安培 |
| 功耗（最大值） | 4.1 摄氏度时为 60 瓦 |
| 5 V 时的背板电流 | 250毫安 |
| 可拆卸接线端子 | 1756-TBNH，1756-TBSH |
| 隔离电压 | 50 伏连续电压 |
| 外壳 | 没有 |
1756-OB16EK 电子熔断器直流输出模块 16 点电子熔断器
【英文介绍】
Manufacturer Rockwell Automation
Brand Allen Bradley
Part number/Catalog Number Model: 1756-OB16EK
Series ControlLogix
Module Type Electronic fuse DC output module
Output 16 point electronic fuse
Voltage 12-24 volts DC
Operating voltage range 10-30 volts DC
The maximum output current is 1 amp at the rated point of 60 degrees Celsius
Maximum output current rating - 60 amps at 8 degrees Celsius for the module
Power consumption (Max.) 60 watts at 4.1 degrees Celsius
The backplane current at 5 V is 250 mA
Detachable terminal 1756-TBNH, 1756-TBSH
Isolation voltage 50 V continuous voltage
Shell no
1756-OB16EK 电子熔断器直流输出模块 16 点电子熔断器
