22F-D4P2N103 可调频率交流变频器 集成的 RS485 通信端口

22F-D4P2N103可调频率交流变频器集成的RS485通信端口【产品详情】Allen-Bradley22F-D4P2N103是一款PowerFlex可调交流

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

22F-D4P2N103 可调频率交流变频器 集成的 RS485 通信端口




【产品详情】

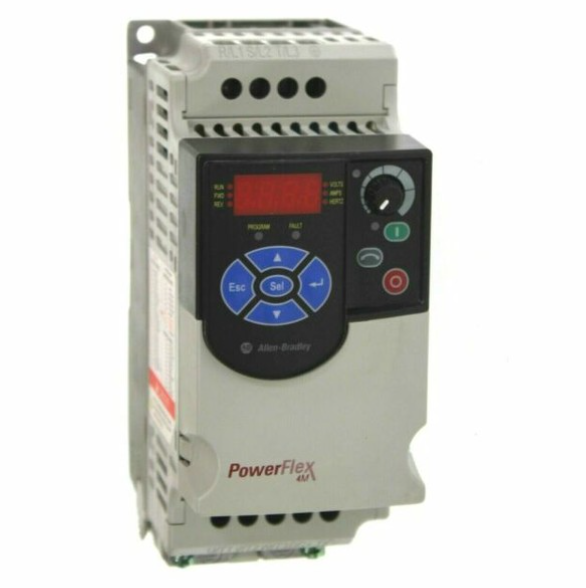

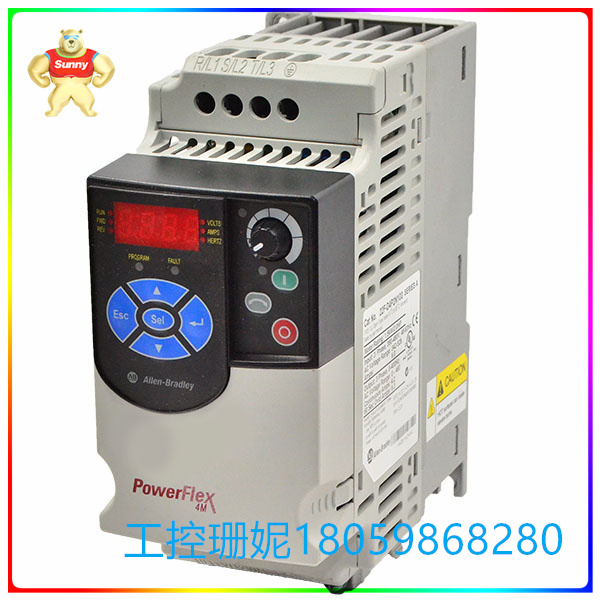

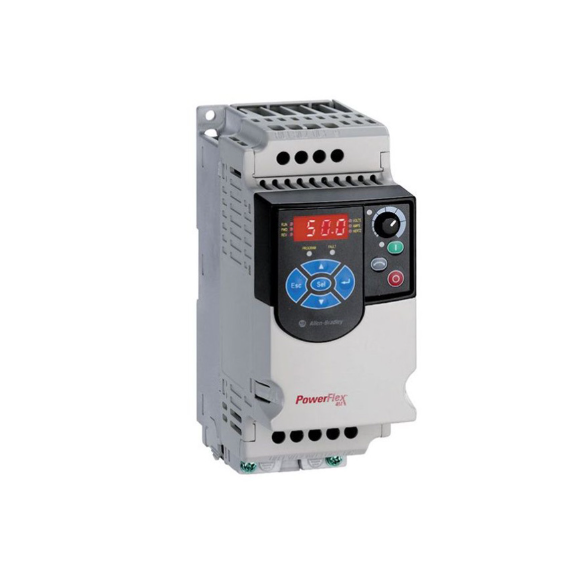

Allen-Bradley 22F-D4P2N103是一款PowerFlex可调交流变频器。该变频器是 PowerFlex 4M 产品系列中专门的一部分。该驱动器主要具有 380-480VAC 三相输入电压范围,输出电压范围为 0-460VAC,三相,适用电机电流为 4.2 A,功率为 1.5 kW (2.0 HP)。


22F-D4P2N103 还带有一个集成的 RS485 通信端口,支持菊花链拓扑结构,其中多达 31 个驱动器或兼容设备可以连接到该网络拓扑结构,并由网络上的单个主设备进行通信。


22F-D4P2N103 还带有嵌入式 I/O 通道,例如五 (5) 个离散输入通道。通道专用于停止信号,通道 2 用于 Start / Run FWD 信号参考,而通道 3 用于 Direction/Run Rev 输入信号。通道 4 和 5 是完全可编程的输入,具有灵活性。它还带有一 (1) 个 C 型继电器,可配置为指示电机的运行反馈状态。它还具有一 (1) 个模拟输入通道,可配置为 0-10VDC;和0-20mA模拟输入信号。


22F-D4P2N103 需要安装分支电路保护组件。Allen-Bradley 建议使用 10 安培保险丝、140M-C2E-C10 电机保护器和 100-C09 接触器来完成支路保护电路。


22F-D4P2N103 PowerFlex4M 变频器采用三相 480V 交流输入电压,频率为 50-60 Hz。其额定值为 4.2 A、1.5 kW 和 2.0 HP。它具有带面板安装的框架尺寸 B 和 DIN 导轨安装选项,可与 IP20 开放式外壳一起安装,可防止最大 12 毫米的灰尘颗粒。22F-D4P2N103 有一个固定的数字键盘,带有控制和编程键,便于操作。其直观的 4 位 LED 显示屏具有 10 个附加指示灯,用于显示驱动器状态信息。RS-485 通信端口用于从计算机编程和多点网络配置。22F-D4P2N103 驱动器具有 V/Hz 控制并提供滑差补偿。它通过其零堆叠功能有助于节省足够的面板空间。继电器预充电和可设置的 DIP 开关等功能限制了电流浪涌,并为控制接线提供了灵活性。它还具有驱动器过载保护和斜坡调节功能。22F-D4P2N103 驱动器使用 Logix 控制平台来简化参数和标签编程,从而缩短开发时间。




22F-D4P2N103 可调频率交流变频器 集成的 RS485 通信端口



英文介绍





The Allen-Bradley 22F-D4P2N103 is a PowerFlex adjustable AC frequency converter. The inverter is a dedicated part of the PowerFlex 4M product family. The driver mainly has a three-phase input voltage range of 380-480VAC and an output voltage range of 0-460VAC, three phases, suitable for motor current of 4.2A and power of 1.5 kW (2.0 HP).


The 22F-D4P2N103 also comes with an integrated RS485 communication port that supports a Daisy chain topology where up to 31 drivers or compatible devices can connect to this network topology and communicate by a single master device on the network.


The 22F-D4P2N103 also comes with embedded I/O channels, such as five (5) discrete input channels. Channel 2 is used for Start /Run FWD signal reference, while channel 3 is used for Direction/Run Rev input signal. Channels 4 and 5 are fully programmable inputs with flexibility. It also comes with one (1) Type C relay that can be configured to indicate the operating feedback status of the motor. It also has one (1) analog input channel that can be configured from 0-10VDC; And 0-20mA analog input signal.


22F-D4P2N103 requires a branch circuit protection component. Allen-Bradley recommends 10 amp fuses, 140M-C2E-C10 motor protectors, and 100-C09 contactors to complete the branch protection circuit.


The 22F-D4P2N103 PowerFlex4M inverter uses a three-phase 480V AC input voltage with a frequency of 50-60 Hz. It is rated at 4.2A, 1.5kW and 2.0HP. It has a frame size B with panel mount and a DIN rail mount option that can be mounted with an IP20 open housing to protect against dust particles up to 12 mm. The 22F-D4P2N103 has a fixed numeric keypad with control and programming keys for easy operation. Its intuitive 4-digit LED display features 10 additional indicators for driver status information. The RS-485 communication port is used for programming and multipoint networking from the computer. The 22F-D4P2N103 driver has V/Hz control and provides slip compensation. It helps save enough panel space through its zero stack feature. Features such as relay pre-charging and settable DIP switches limit electrical surges and provide flexibility for control wiring. It also features drive overload protection and slope regulation. The 22F-D4P2N103 driver uses the Logix control platform to simplify parameter and label programming, thereby reducing development time.




22F-D4P2N103 可调频率交流变频器 集成的 RS485 通信端口
