1788-EN2DNR 外部安装的模块 具有两个以太网通信端口
【产品详情】

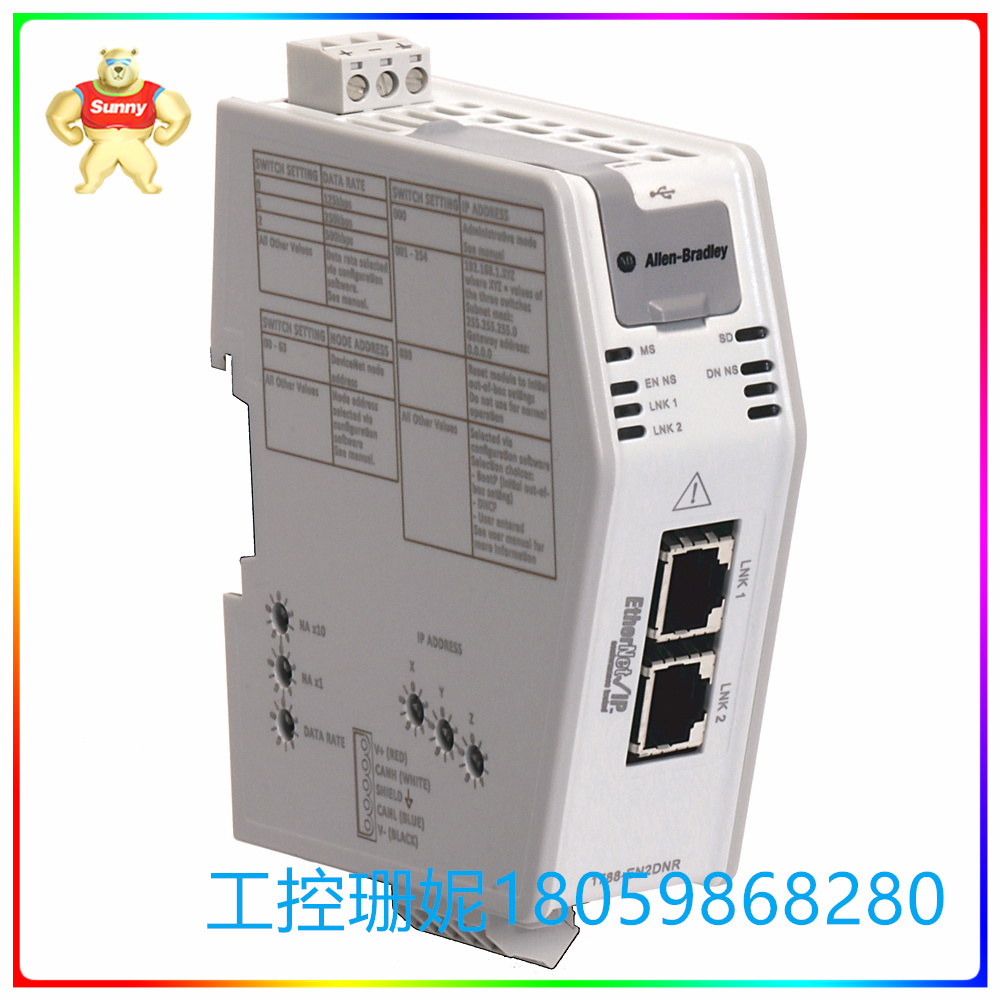

Allen-Bradley 1788-EN2DNR 以太网 I/P 到 DeviceNet 链接设备。这是一个外部安装的模块,具有两 (2) 个以太网通信端口和一 (1) 个 DeviceNet 终端。该模块还可以充当 CIP 安全信息桥。
1788-EN2DNR 以太网端口支持三十二 (32) 个 0 类连接(安全)、21 个 1 类连接(1 个排除所有者,20 个仅输入/仅侦听)、十六 (16) 个 3 类连接。它还具有集成的Web服务器,可以使用Microsoft Internet Explorer,Edge,Google Chrome,Mozilla Firefox和其他Web浏览器进行访问。它还支持基于信标的设备级环网 (DLR) 拓扑。
1788-EN2DNR DeviceNet 端口能够进行完整的 DeviceNet 主设备操作,其中多达 63 个 DeviceNet 从设备通过以太网 TCP/IP 连接。DeviceNet 端口还支持安全 I/O、容量为 256 KB 的自动设备更换 (ADR)、快速连接和 I/O 从站消息传递,例如位选通、轮询、循环和状态更改。1788-EN2DNR 的扫描器配置可使用 RSNetworx for DeviceNet 进行配置。
1788-EN2DNR 是一款 IP20 级设备,兼容 0 类 CIP 安全连接,网络间最大延迟为 5 ms。该链接设备集中了网络之间共享的数据存储、输入和输出表。此设备使用标准协议机制在网络中显示为单个设备。
1788-EN2DNR 工作温度为 0...60 摄氏度 (32...140 °F) 和存储温度 -40...85 °C (-40...185°F)。作为外部安装设备,该模块由外部 24V DC SELV/PELV 电源电压供电。该模块使用标准DIN导轨安装。
1788-EN2DNR 连接设备仅供室内使用。它应安装在具有适当阻燃特性的外壳中。设备上提供的 USB 端口仅用于临时本地编程,因此不应永久连接。1788-EN2DNR 连接设备的电源需要 24 伏直流输入电压,最大电流为 150 毫安。设备的外壳已打开。对于电源连接,应使用额定温度为 22 摄氏度或更高的 14 AWG 实心或绞合铜线。对于以太网连接,应使用 2 对或 4 对 5e 类或 5 类电缆。对于 DeviceNet 连接,应使用 20 AWG 1485C-P1-Cxxx 电缆。
1788-EN2DNR 外部安装的模块 具有两个以太网通信端口
【英文介绍】
Allen-Bradley 1788-EN2DNR Ethernet I/P to DeviceNet link device. This is an externally mounted module with two (2) Ethernet communication ports and one (1) DeviceNet terminal. The module can also act as a CIP security information bridge.
The 1788-EN2DNR Ethernet port supports thirty-two (32) Class 0 connections (secure), 21 Class 1 connections (1 owner-excluded, 20 input/listen only), and sixteen (16) Class 3 connections. It also has an integrated Web server that can be accessed using Microsoft Internet Explorer, Edge, Google Chrome, Mozilla Firefox, and other Web browsers. It also supports a beacon based device-level ring network (DLR) topology.
The 1788-EN2DNR DeviceNet port enables full DeviceNet master device operation, where up to 63 DeviceNet slave devices are connected over Ethernet TCP/IP. The DeviceNet port also supports secure I/O, automatic Device replacement (ADR) with a capacity of 256 KB, fast connections, and I/O slave station messaging, such as bit-strobe, polling, loop, and status change. The scanner configuration for the 1788-EN2DNR can be configured using RSNetworx for DeviceNet.
The 1788-EN2DNR is an IP20 class device compatible with Class 0 CIP secure connections with a maximum latency of 5 ms between networks. The linked device centralizes data stores, input and output tables shared between networks. This device is displayed as a single device on the network using a standard protocol mechanism.
1788-EN2DNR Operating temperature is 0... 60 degrees Celsius (32... 140 °F) and storage temperature -40... 85 °C (-40... 185°F). As an externally mounted device, the module is powered by an external 24V DC SELV/PELV supply voltage. The module is mounted using standard DIN rail.
1788-EN2DNR connected devices are for indoor use only. It should be installed in a housing with appropriate flame retardant properties. The USB port provided on the device is only used for temporary local programming, so it should not be permanently connected. The power supply for the 1788-EN2DNR connected device requires 24 volts DC input voltage with a maximum current of 150 mA. The enclosure of the device has been opened. For power connections, 14 AWG solid or stranded copper wire with a temperature rating of 22 degrees Celsius or higher should be used. For Ethernet connections, 2 or 4 pairs of Class 5e or Class 5 cables should be used. For DeviceNet connections, a 20 AWG 1485C-P1-Cxxx cable should be used.
