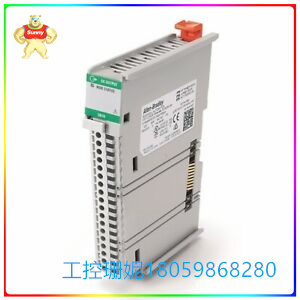

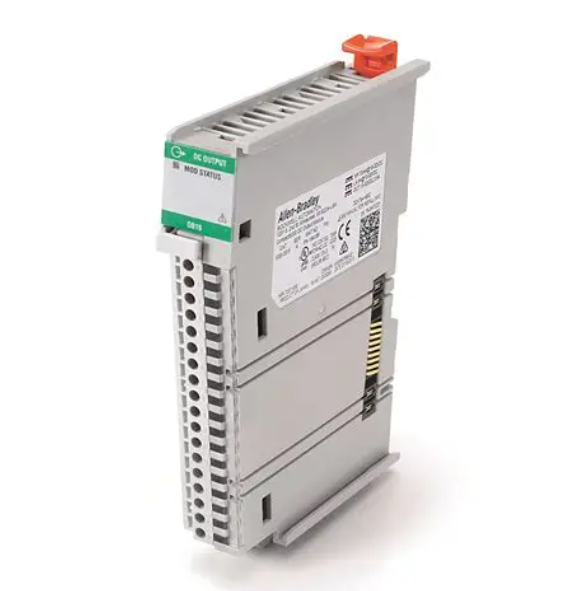

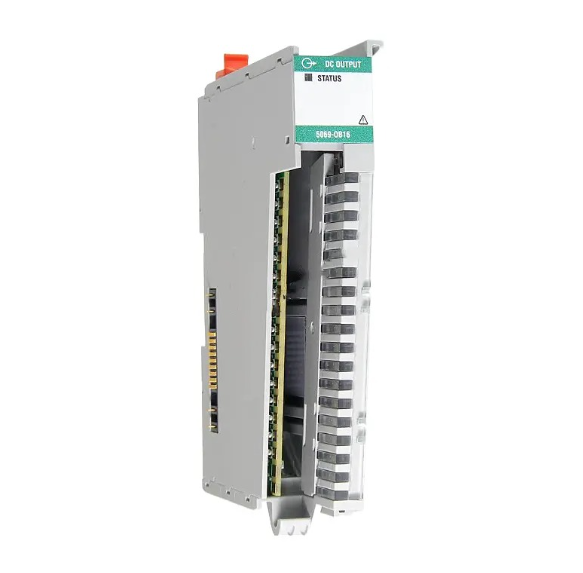

5069-OB16 分立式输出模块 用于为电气负载供电和驱动

5069-OB16分立式输出模块用于为电气负载供电和驱动【产品详情】Allen-Bradley5069-OB16是一款分立式输出模块,属于Compact5000

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

5069-OB16 分立式输出模块 用于为电气负载供电和驱动




【产品详情】





Allen-Bradley 5069-OB16 是一款分立式输出模块,属于 Compact 5000 I/O 产品系列。它提供 10-32VDC 的输出电压范围,标称输出为 24VDC。它的输出电流额定值为每通道 0.5 A 电阻 @ 10...每个模块 32V DC 和 8 A 电阻 @ 10...32V DC,最大每个通道能够承受 1 A 的最大浪涌电流,持续 10 ms,每 2 秒可重复一次。 与其他输出模块类似,该模块主要用于为电气负载供电和驱动。


但是,5069-OB16 与在 12/24VDC 电压类别下运行的设备兼容。该模块的最小导通状态电压为 10VDC,最大导通电压为 32VDC,每个通道的最小导通状态电流为 1 mA。每个通道的输出延迟时间为?100 μs、±10 μs @ 25 °C (77 °F) @ 0.5 A,用于 On 到 Off 和 Off 到 On 的转换。该模块的最小脉冲宽度为 200 μs @ 0.5 A @ 25 °C (77 °F)。


5069-OB16 内部具有场功率损耗检测、每个通道的空载检测以及每个通道的单独输出短路、输出过载和过热检测功能。它还配备了反极性检测和过压检测,额定电压为 36VDC。该模块具有内部保险丝保护。


即使控制器或模块已进入故障模式、程序模式和故障状态,也可以控制 5069-OB16 输出。可配置状态包括“保持上次状态”、“打开”和“关闭”(默认设置)。


该模块的非工作冲击为 50g(3 个脉冲,11 ms)。该模块在 10 至 500 Hz 时的振动为 5g。该模块的重量约为 175 克(0.39 磅)。此模块的外壳样式为无(开放式外壳)。Allen-Bradley 5069-OB16 在接触放电和空气放电中具有 6 kV 的 ESD 抗扰度。Allen-Bradley 5069-OB16 的电压类别为 12-24V 直流电源。输出为 16 个通道(1 组,每组 16 个通道)。该模块的最大功耗为 3.25 W(16 个通道,0.5 A)。该模块的最大散热为 11.09 BTU/hr。该模块有 1 个绿色/红色模块状态指示灯和 16 个黄色/红色 I/O 状态指示灯。Allen-Bradley 5069-OB16 对静电放电敏感,静电放电会导致内部损坏并影响操作。切勿触摸元件板上的连接器或引脚,切勿触摸设备内部的电路元件,并始终使用无静电工作站。




5069-OB16 分立式输出模块 用于为电气负载供电和驱动



英文介绍





The Allen-Bradley 5069-OB16 is a discrete output module in the Compact 5000 I/O product family. It offers an output voltage range of 10-32VDC with a nominal output of 24VDC. Its output current rating is 0.5A per channel resistance @ 10... Each module 32V DC and 8A resistance @ 10... 32V DC, maximum each channel can withstand A maximum surge current, lasting 10 ms, can be repeated every 2 seconds. Similar to other output modules, this module is primarily used to power and drive electrical loads.


However, the 5069-OB16 is compatible with devices operating in the 12/24VDC voltage category. The module has a minimum on-state voltage of 10VDC, a maximum on-state voltage of 32VDC, and a minimum on-state current of 1 mA per channel. What is the output delay time for each channel? 100 μs, ±10 μs @ 25 °C (77 °F) @ 0.5 A for On to Off and Off to On conversion. The module has a minimum pulse width of 200 μs @ 0.5A @ 25 °C (77 °F).


The 5069-OB16 has internal field power loss detection, no-load detection for each channel, and individual output short-circuit, output overload, and overheat detection for each channel. It is also equipped with reverse polarity detection and overvoltage detection and is rated at 36VDC. The module is protected by an internal fuse.


The 5069-OB16 output can be controlled even when the controller or module is in fault mode, program mode, and fault state. Configurable states include "Keep Last State", "On", and "Off" (default).


The module has a non-operating shock of 50g (3 pulses, 11 ms). The module vibrates 5g at 10 to 500 Hz. The module weighs about 175 grams (0.39 pounds). The shell style for this module is none (open shell). The Allen-Bradley 5069-OB16 has 6 kV ESD immunity in contact and air discharges. The Allen-Bradley 5069-OB16's voltage class is 12-24V DC power supply. The output is 16 channels (1 group of 16 channels per group). The maximum power consumption of the module is 3.25 W (16 channels, 0.5 A). The module has a maximum heat dissipation of 11.09 BTU/hr. The module has one green/red module status indicator and 16 yellow/red I/O status indicators. Allen-Bradley 5069-OB16 is sensitive to electrostatic discharge, which can cause internal damage and affect operation. Never touch connectors or pins on the component board, never touch circuit components inside the device, and always use a static-free workstation.
