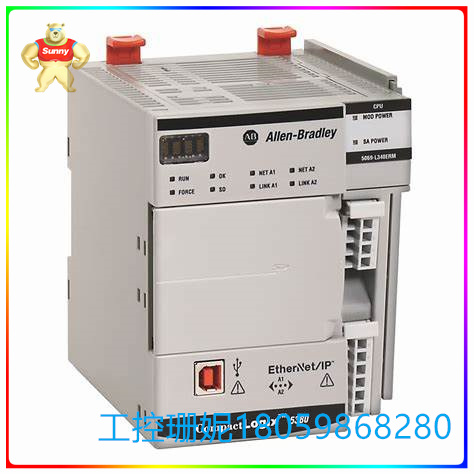

5069-L306ER 可编程自动化控制器 具有紧凑且可扩展的硬件
【产品详情】

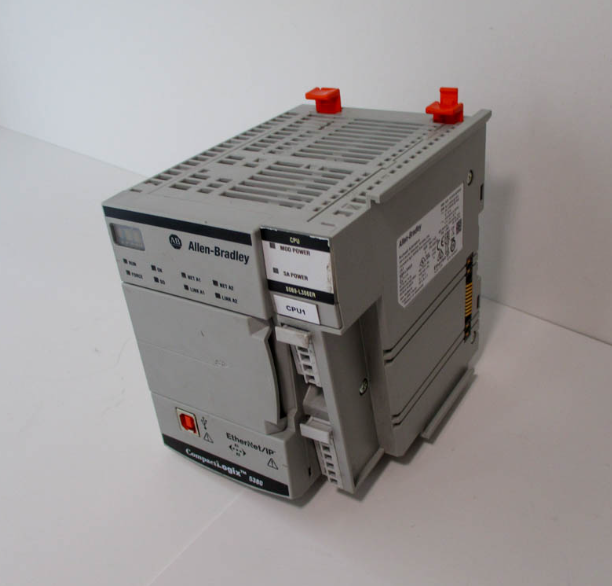

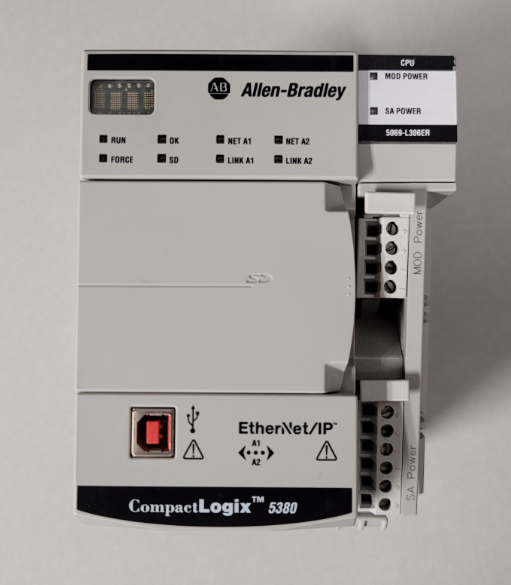

Allen-Bradley 5069-L306ER 是一款 5380 CompactLogix 控制器。这是一款可编程自动化控制器 (PAC),具有紧凑且可扩展的硬件,用于不同行业的各种工业应用。
5069-L306ER 具有嵌入式 0.6 MB 用户内存。该存储器不需要使用电池,因为它配备了储能解决方案,用于在不需要电池的情况下保留用户存储器的内容。此外,5069-L306ER 还附带一个 1784-SD2 安全数字 (SD) 卡,内存大小为 2GB。它用作非易失性存储器,并提供了将配置文件和用户程序从一个控制器传输到另一个控制器的便捷方法。还可以使用可选的存储卡,例如 1784-SDHC8 (8 GB)、1784-SDHC32 (32 GB) 和 9509-CMSDCD4 (4 GB) CodeMeter CmCard 卡,以增加非易失性存储器容量。
5069-L306ER 支持安装多达八 (8) 个 5069 紧凑型 I/O 模块。这种紧凑的 I/O 模块是小尺寸 I/O,可有效节省面板空间,有助于降低 5069 控制器的安装成本。
5069-L306ER 具有一 (1) 个 USB 2.0 端口,传输速度高达 12 Mbps,双以太网 I/P 通信接口支持线性、星形和环形拓扑。这些以太网端口能够在全双工模式下以 10 / 100 / 1Gbps 的传输速度交换数据。
5069-L306ER 可针对多达 32 个任务进行配置,每个任务能够处理 1000 个程序。此控制器也支持所有事件触发器。用户程序可以用中继梯形图(LD)、结构化文本(ST)、功能块图(FBD)和顺序功能图(SFC)语言编写。
该模块带有一个内置的 USB 端口。此模块有 2 个以太网端口。该模块的以太网性能为 10 Mbps、100 Mbps 和 1 Gbps,仅限全双工。此模块支持的最大 EtherNet/IP 节点数为 16。该模块的容量为 0.6 MB。
Allen-Bradley 5069-L306ER 尺寸为 5.67 x 3.86 x 5.39 英寸。该模块的重量约为 0.768 千克(1.693 磅)。5069-L306ER 的模块电源总线电压为 18 至 32V DC。Allen-Bradley 5069-L306ER 必须安装在 ATEX/IECEx Zone 2 认证的外壳中,最低入门级至少为 IP54(定义见 EN/IEC 60529)。该模块也可用于污染等级不高于污染 2(定义见 EN/IEC 60664-1)的环境,当应用于 2 区时。该模块不抵抗阳光或其他紫外线辐射源。外壳只能使用工具进行检修。此模块的外壳样式为无(开放式外壳)。
5069-L306ER 可编程自动化控制器 具有紧凑且可扩展的硬件
【英文介绍】
The Allen-Bradley 5069-L306ER is a 5380 CompactLogix controller. It is a programmable automation controller (PAC) with compact and scalable hardware for a variety of industrial applications in different industries.
The 5069-L306ER has embedded 0.6 MB of user memory. The memory does not require the use of a battery as it is equipped with an energy storage solution for retaining the contents of the user's memory without the need for a battery. In addition, the 5069-L306ER comes with a 1784-SD2 secure digital (SD) card with a memory size of 2GB. It serves as non-volatile memory and provides a convenient way to transfer configuration files and user programs from one controller to another. Optional memory cards such as 1784-SDHC8 (8 GB), 1784-SDHC32 (32 GB), and 9509-CMSDCD4 (4 GB) CodeMeter CmCard can also be used to increase non-volatile memory capacity.
The 5069-L306ER supports the installation of up to eight (8) 5069 compact I/O modules. This compact I/O module is a small size I/O that saves panel space and helps reduce the installation cost of the 5069 controller.
The 5069-L306ER features one (1) USB 2.0 port for transfer speeds up to 12 Mbps, and dual Ethernet I/P communication interfaces support linear, star, and ring topologies. These Ethernet ports are capable of exchanging data at 10/100/1Gbps transfer speeds in full-duplex mode.
The 5069-L306ER can be configured for up to 32 tasks, each capable of handling 1,000 programs. This controller also supports all event triggers. User programs can be written in Relay Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD) and Sequential Function diagram (SFC) languages.
The module comes with a built-in USB port. This module has two Ethernet ports. The module has Ethernet performance of 10 Mbps, 100 Mbps, and 1 Gbps, with full duplex only. The maximum number of EtherNet/IP nodes supported by this module is 16. The module has a capacity of 0.6 MB.
The Allen-Bradley 5069-L306ER measures 5.67 x 3.86 x 5.39 inches. The module weighs about 0.768 kilograms (1.693 pounds). The module power bus voltage of the 5069-L306ER is 18 to 32V DC. Allen-Bradley 5069-L306ER must be installed in an ATEX/IECEx Zone 2 certified housing with a minimum entry level of at least IP54 (as defined in EN/IEC 60529). The module can also be used in environments with pollution levels not higher than pollution 2 (as defined in EN/IEC 60664-1), when applied to zone 2. The module is not resistant to sunlight or other sources of ultraviolet radiation. The casing can only be repaired using tools. The shell style for this module is none (open shell).
5069-L306ER 可编程自动化控制器 具有紧凑且可扩展的硬件
