2711P-T10C21D8S-B  接口模块用于监视和控制连接

【产品详情】

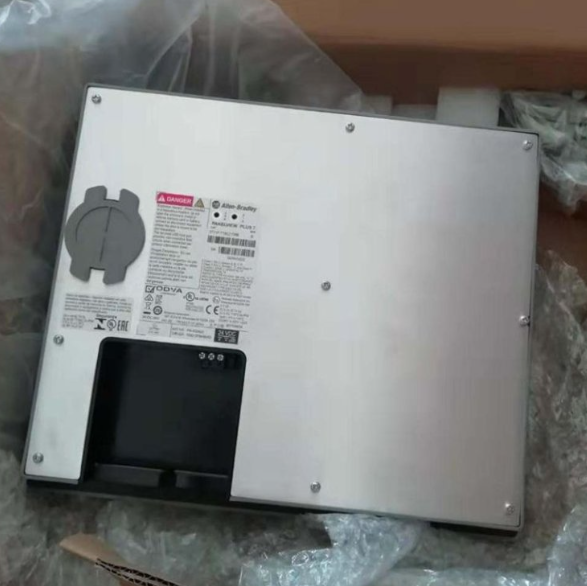

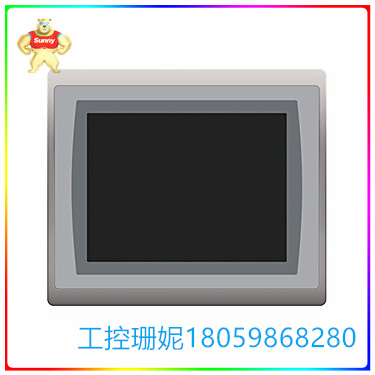

Allen-Bradley 2711P-T10C21D8S-B PanelView Plus 7 Standard 接口模块用于监视和控制连接到 EtherNet/IP 网络、ControlLogix 5570 和 CompactLogix 5370 控制器的设备。该设备允许通过其 10.41 英寸 TFT LCD 触摸屏轻松连接到机器，显示屏尺寸为 211mm x 158mm，显示分辨率为 800 x 600 SVGA 18 位彩色图形显示分辨率。其显示屏提供4：3原生长宽比，显示亮度为300尼特，其显示屏具有100万次按压驱动额定值的模拟电阻式触摸表面，可承受约100G的屏幕操作冲击。该设备还具有半衰期为 50,000 小时的屏幕背光，并配备了内部电池备份时钟，每月精度为 ±2 分钟，在 25 °C （77 °F） 下最短电池寿命为 4 年。2711P-T10C21D8S-B 具有 512MB 随机存取存储器 （RAM） 和 512MB 用户内存，并使用 80MB 指定内存进行应用程序存储。

2711P-T10C21D8S-B 支持 SD 卡插槽，用于额外存储应用程序文件，并具有 1 个 USB 2.0 高速主机端口和 1 个 1.0 高速设备端口，支持连接到主机。该器件的输入范围为 18-30V DC，标称值为 24V DC，采用非隔离式 DIN 轨 AC-DC、85-265V AC（47-63Hz）电源供电，最大功耗为 50W（24V DC 时为 2.1A）。其工作温度范围为 0 至 55 °C（32 至 131 °F），非冷凝湿度为 5-95%。2711P-T10C21D8S-B 重约 1.82 千克（4 磅），尺寸为 252 毫米 x 297 毫米 x 56.5 毫米（9.92 英寸 x 11.69 英寸 x 2.22 英寸）。

2711P-T10C21D8S-B  接口模块用于监视和控制连接

【英文介绍】

Allen-Bradley 2711P-T10C21D8S-B PanelView Plus 7 Standard interface modules are used to monitor and control connections to EtherNet/IP networks, ControlLogix 5570, and CompactLogix 5370 Controller device. The device allows easy connection to the machine via its 10.41-inch TFT LCD touch screen with a display size of 211mm x 158mm and a display resolution of 800 x 600 SVGA 18-bit color graphic display resolution. Its display offers a 4:3 native aspect ratio with a display brightness of 300 nits, and its display has an analog resistive touch surface with a million press drive rating that can withstand the impact of about 100G of screen operation. The device also features a screen backlight with a half-life of 50,000 hours and is equipped with an internal battery backup clock with a monthly accuracy of ±2 minutes and a minimum battery life of 4 years at 25 °C (77 °F). The 2711P-T10C21D8S-B has 512MB of random access memory (RAM) and 512MB of user memory, and uses 80MB of designated memory for application storage.

The 2711P-T10C21D8S-B supports an SD card slot for additional storage of application files and has 1 USB 2.0 high-speed host port and 1 1.0 high-speed device port for connection to the host. The device has an input range of 18-30V DC, a nominal value of 24V DC, is powered by a non-isolated DIN rail AC-DC, 85-265V AC (47-63Hz) supply, and a maximum power consumption of 50W (2.1A at 24V DC). It operates in a temperature range of 0 to 55 °C (32 to 131 °F) and a non-condensing humidity of 5-95%. The 2711P-T10C21D8S-B weighs about 1.82 kg (4 lb) and measures 252 mm x 297 mm x 56.5 mm (9.92 inches x 11.69 inches x 2.22 inches).

2711P-T10C21D8S-B  接口模块用于监视和控制连接
