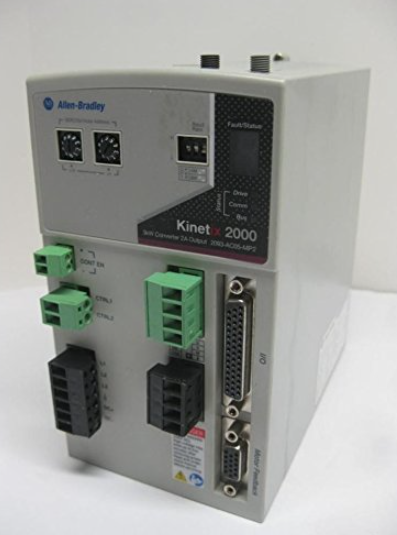

2093-AC05-MP5 集成轴模块 安装在电源轨的最左侧
【产品详情】
Allen-Bradley 2093-AC05-MP5 是一款 Kinetix 2000 集成轴模块 (IAM)。该模块是 200 V 级模块,输入电压范围为 170-264 VAC,输入频率为 47-63 Hz 的三相。它的输入电流要求为 11.66(标称值),最大浪涌电流为 34.0 A。
2093-AC05-MP5 集成轴模块的输出特性包括 325 VDC 总线输出电压;9.67 A 连续输出总线电流;19.34 A 总线间歇输出电流;总线连续输出功率为 3.0 kW,总线峰值输出功率为 6.0 kW。它的效率为95%。2093-AC05-MP5 检测 425 VDC 的总线过压,而总线欠压 @ 137.5 VDC。
2093-AC05-MP5 是集成轴模块 (IAM),安装在电源轨的最左侧。后续或相邻的模块必须通过确定功率利用率或额定电流的水平来安装诸如轴模块、分流模块、槽填充器等模块。
2093-AC05-MP5 前面板安装了多种组件。它有多种端子排,例如接触器使能 (CED) 连接器;控制电源 (CPD) 连接器;主电源 (IPD) 连接器;电机制动 (BC) 连接器;电机功率 (MP) 连接器;I/O 和机器反馈 (IOD/AF) 连接器和电机反馈 (MF) 连接器。它还具有 LED 状态指示灯,特别是驱动器状态 LED、COMM 状态 LED 和总线状态 LED,以及七段故障状态显示。
串行实时通信系统 (SERCOS) 连接器位于模块顶部。SERCOS 接收 (Rx) 连接器和 SERCOS 发送 (Tx) 连接器并排放置,而 SERCOS 波特率和光功率开关以及 SERCOS 节点开关位于 7 段显示器旁边。
2093-AC05-MP5 是一款集成轴模块, 输入电压范围为 170- 264VAC rms, 输入频率范围为 47-63 Hz, 输入电压, dc(公共总线跟随器)为 240V-375 VDC 输入电流,直流(公共总线跟随器)为 6.42 A 三相电源输入,标称总线输出电压为 325Vdc,总线连续功率输出为 3.0KW, 峰值功率输出6.0KW,效率95%,转换器电容540NF。2093-AC05-MP5 配备 IAM 逆变器电源,带宽速度环路为 500Hz,与大多数 2093 IAM 系列相似,标称输入电压为 325V dc,连续电流 (rms) 为 3.0 A,高于该系列中的 MP1 和 MP2。峰值电流(均方根为 6.0 A,峰值输出电流时间,从 0% 驱动器利用率(0% 浸泡)开始,最大 3 秒。与该系列中的其他产品一样,它的效率为 98%,电容为 200 NF,电容吸收为 7.5 J,与 MP 系列的其他产品相同。

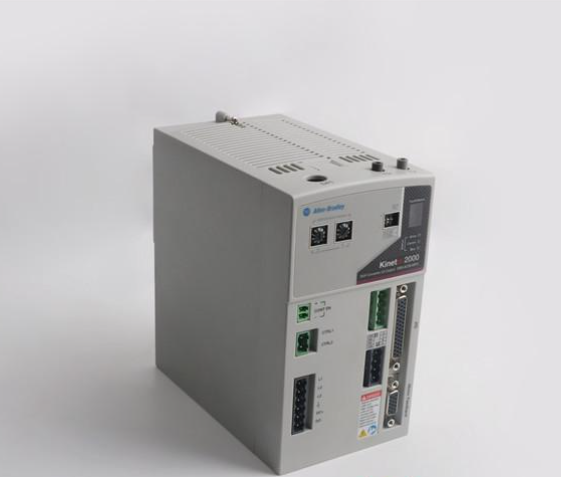

2093-AC05-MP5 集成轴模块 安装在电源轨的最左侧
【英文介绍】
Allen-Bradley 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis Module (IAM). The module is a 200 V class module with an input voltage range of 170-264 VAC and a three-phase input frequency of 47-63 Hz. It requires an input current of 11.66 (nominal value) and a maximum surge current of 34.0A.
The output features of the 2093-AC05-MP5 integrated shaft module include 325 VDC bus output voltage; 9.67A continuous output bus current; 19.34A bus intermittent output current; The bus continuous output power is 3.0 kW, and the bus peak output power is 6.0 kW. It is 95% efficient. The 2093-AC05-MP5 detects a bus overvoltage of 425 VDC and a bus undervoltage of @ 137.5 VDC.
The 2093-AC05-MP5 is an Integrated shaft module (IAM) mounted on the far left side of the power rail. Subsequent or adjacent modules must install modules such as shaft modules, shunt modules, slot fillers, etc. by determining the level of power utilization or rated current.
The 2093-AC05-MP5 front panel is equipped with a variety of components. It has a variety of terminal blocks, such as contactor Enable (CED) connectors; Control power supply (CPD) connector; Main power supply (IPD) connector; Motor brake (BC) connector; Motor power (MP) connector; I/O and Machine Feedback (IOD/AF) connectors and Motor feedback (MF) connectors. It also features LED status indicators, especially driver status leds, COMM status leds and bus status leds, as well as a seven-segment fault status display.
The Serial Real-time Communication System (SERCOS) connector is located on top of the module. The SERCOS Receive (Rx) connector and SERCOS Transmit (Tx) connector are placed side by side, while the SERCOS baud rate and optical power switch and the SERCOS node switch are located next to the 7-segment display.
The 2093-AC05-MP5 is an integrated shaft module with input voltage range 170-264VAC rms, input frequency range 47-63 Hz, input voltage, dc (Common bus Follower) input current of 240V-375 VDC, Dc (common bus follower) is 6.42A three-phase power input, nominal bus output voltage is 325Vdc, bus continuous power output is 3.0KW, peak power output is 6.0KW, efficiency is 95%, converter capacitance is 540NF. The 2093-AC05-MP5 features an IAM inverter power supply with A bandwidth speed loop of 500Hz, similar to most 2093 IAM series, a nominal input voltage of 325V dc and a continuous current (rms) of 3.0 A, higher than MP1 and MP2 in the series. Peak current (RMS 6.0 A), peak output current time, starting at 0% driver utilization (0% soak), up to 3 seconds. Like the other products in the series, it has an efficiency of 98%, a capacitance of 200 NF and a capacitance absorption of 7.5J, the same as the other products in the MP series.

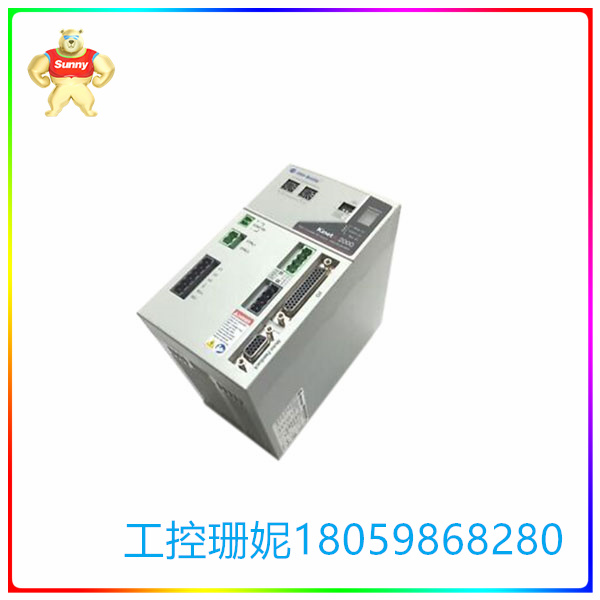

2093-AC05-MP5 集成轴模块 安装在电源轨的最左侧
