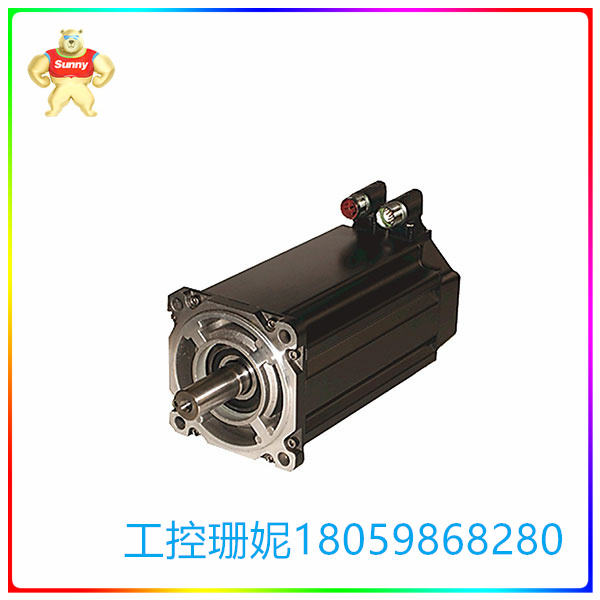

MPL-B890C-MJ74AA 低惯量旋转伺服电机 具有一个轴键

【产品详情】

MPL-B880C-MJ74AA伺服电机是Allen-Bradley制造的MPL系列低惯量旋转伺服电机。该电机每分钟可提供 1500 转，额定输出功率为 12.6 千瓦。其转子惯量额定值为 0.0224 kg-m2，额定失速转矩为 110 N-m，连续失速电流为 47.5 安培。该伺服电机配备了标准的工厂指定控制选项，以满足高性能运动系统的要求。它的反馈设备是一个多圈高分辨率编码器，它还具有 24 伏直流制动器。MPL-B880C-MJ74AA 伺服电机上的连接器是 SpeedTEC DIN 直角连接器，旨在提供快速的四分之一圈连接，从而实现简单而安全的接线。连接器可以在 180 度以内旋转，因此它支持不同的接线方向，电机的框架尺寸为 265 毫米。

MPL-B880C-MJ74AA 伺服电机具有一个轴键，用于将联轴器固定到电机轴上。总而言之，这款伺服电机的紧凑设计、绕组中采用的先进技术以及高能稀土磁铁相结合，产生了移动最苛刻负载所需的扭矩和加速度水平。所有 Allen-Bradley MPL 系列旋转伺服电机，包括 MPL-B880C-MJ74AA 伺服电机，均支持垂直和水平安装方向。该伺服电机没有安装轴封，因此水平安装时，其环保等级为IP 51。当伺服电机垂直安装且轴朝上时，其环保等级为 IP 53。如果轴朝下，则其环保等级为 IP 50。但是，当轴封套件正确安装在该伺服电机上时，其防护等级为 IP 66。

MPL-B890C-MJ74AA 低惯量旋转伺服电机 具有一个轴键

【英文介绍】

The MPL-B880C-MJ74AA servo motor is the MPL series of low inertia rotary servo motors manufactured by Allen-Bradley. The motor provides 1500 revolutions per minute and has a rated output power of 12.6 kW. The rotor inertia rating is 0.0224 kg-m2, the rated stall torque is 110 N-m, and the continuous stall current is 47.5 amps. The servo motor is equipped with standard factory-specified control options to meet the requirements of high-performance motion systems. Its feedback device is a multi-turn high-resolution encoder, and it also has a 24-volt DC brake. The connectors on the MPL-B880C-MJ74AA servo motors are SpeedTEC DIN right-angle connectors designed to provide fast quarter-turn connections for simple and secure wiring. The connector can be rotated within 180 degrees, so it supports different wiring directions, and the frame size of the motor is 265 mm.

The MPL-B880C-MJ74AA servo motor has a shaft key for securing the coupling to the motor shaft. All in all, this servo motor's compact design, advanced technology employed in the windings, and high-energy rare earth magnets combine to produce the level of torque and acceleration needed to move the most demanding loads. All Allen-Bradley MPL series rotary servo motors, including the MPL-B880C-MJ74AA servo motors, support vertical and horizontal mounting directions. The servo motor is not fitted with a shaft seal, so when installed horizontally, its environmental protection rating is IP 51. When the servo motor is mounted vertically with the axis facing up, its environmental protection rating is IP 53. If the shaft is facing down, its environmental rating is IP 50. However, when the shaft seal kit is properly installed on this servo motor, its protection class is IP 66.

MPL-B890C-MJ74AA 低惯量旋转伺服电机 具有一个轴键
