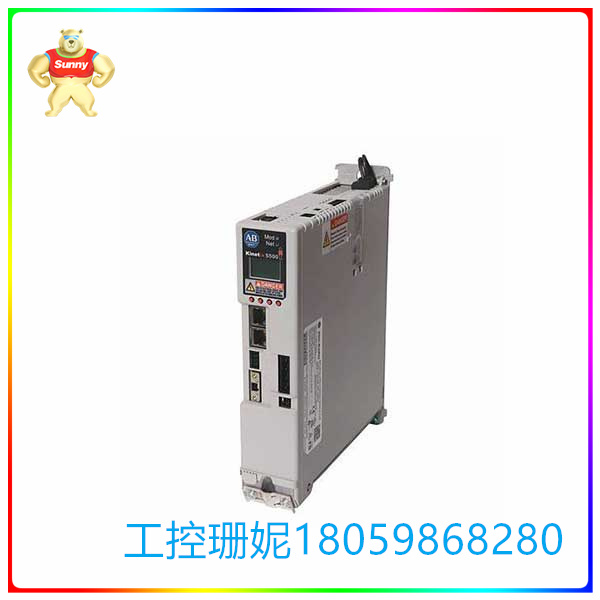

2198-S086-ERS4 单轴伺服驱动器 复杂多轴控制系统
【产品详情】
2198-S086-ERS4 驱动器是由 Allen-Bradley 设计和制造的 Kinetix 5700 驱动器系列中的单轴伺服驱动器。其PWM额定频率为4千赫兹。2198-S086-ERS4 单轴伺服驱动器可用于工业环境中的复杂多轴控制系统，这些系统清洁、无危险且不会出现明显的湿气或冷凝。该变频器可以承受高达 95% 的相对湿度水平，在操作和存储过程中都不会出现冷凝。它在 32 到 122 华氏度的温度下运行，可以在 -40 到 158 华氏度的温度下储存或运输。2198-S086-ERS4 单轴伺服驱动器配有安装片和切口，便于安装，并配有冷却风
Allen-Bradley 2198-S086-ERS4 Kinetix 5700 系列单轴伺服驱动器通过以太网与其他设备通信，并配有 2 个以太网 RJ45 端口，用于进行以太网连接。该驱动器还具有电机制动连接器、电机反馈连接器、通用反馈连接器、数字输入连接器、安全扭矩关闭连接器、直流母线连接器、电机电源连接器和 24 伏控制输入电源连接器。2198-S086-ERS4 伺服驱动器的前面板上有一个小型 LCD 屏幕和导航键。它支持最大速度环路频率 400 赫兹和电流环路频率 1000 赫兹的额定带宽。其连续 RMS 输出电流额定值为 43 安培，连续 0 包输出电流额定值为 60.8 安培。
2198-S086-ERS4 单轴伺服驱动器 复杂多轴控制系统
【英文介绍】
The 2198-S086-ERS4 drive is a single-axis servo drive in the Kinetix 5700 drive family designed and manufactured by Allen-Bradley. Its PWM frequency is rated at 4 KHZ. The 2198-S086-ERS4 single-axis servo drive can be used in complex multi-axis control systems in industrial environments that are clean, hazard free and do not experience significant moisture or condensation. The inverter can withstand relative humidity levels of up to 95% with no condensation during operation or storage. It operates at temperatures from 32 to 122 degrees Fahrenheit and can be stored or transported at temperatures from -40 to 158 degrees Fahrenheit. The 2198-S086-ERS4 single axis servo drive is equipped with mounting pads and notches for easy installation and is equipped with cooling air
Allen-Bradley 2198-S086-ERS4 Kinetix 5700 Series single-axis servo drives communicate with other devices via Ethernet and are equipped with 2 Ethernet RJ45 ports for Ethernet connections. The drive also has a motor brake connector, motor feedback connector, universal feedback connector, digital input connector, safe torque off connector, DC bus connector, motor power connector, and 24 volt control input power connector. The 2198-S086-ERS4 servo drive has a small LCD screen and navigation keys on the front panel. It supports a bandwidth rating of maximum speed loop frequency of 400 Hz and current loop frequency of 1000 Hz. It has a continuous RMS output current rating of 43 amps and a continuous 0 packet output current rating of 60.8 amps.
2198-S086-ERS4 单轴伺服驱动器 复杂多轴控制系统
