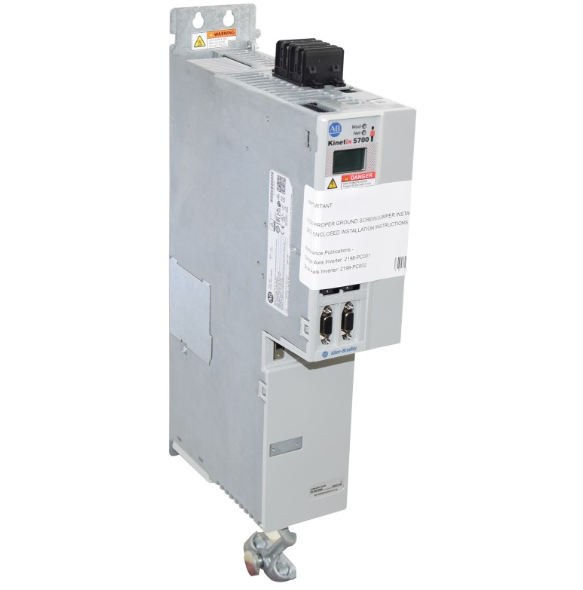

2198-RP312 以太网/IP伺服驱动器 再生总线电源

【产品详情】

 这种Allen-Bradley Kinetix 5700以太网/IP伺服驱动器是一种再生总线电源，其交流输入电压范围为324…506V rms，三相(480V nom)，交流输入频率为47…63 Hz。该驱动器还具有324…528V (rms)三相主交流输入电流30.0 A，最大浪涌(0-PK)76.0 A，峰值交流输入电流324…528V (rms)三相75.0 A，以及20 ms的线路损耗穿越。其控制电源DC输入电压为24V DC±10%，其控制电源DC输入电流为4.3 ADC。该器件还具有458–747v DC的标称总线输出电压和35.3 ADC的总线三相连续输出电流。其总线三相峰值输出电流为88.0 ADC，峰值输出电流持续时间为1.0 s/3.0 s。该驱动器总线额定(480V rms，三相)的持续输出功率为24.0 kW，总线额定(480V rms，三相)的峰值输出功率为60.0 kW，总线过压- 480V，额定交流输入为832V DC。这个产品的效率是0.98。内部电容为940 μF，其电容能量吸收为207 J。对于该驱动器，短路电流额定值为200，000 A (rms)对称。

2198-RP312 以太网/IP伺服驱动器 再生总线电源

【英文介绍】

 This Allen-Bradley Kinetix 5700 Ethernet /IP servo driver is a regenerative bus power supply with an AC input voltage range of 324... 506V rms, three-phase (480V nom), AC input frequency of 47... 63 Hz. The drive also features 324... 528V (rms) three-phase main AC input current 30.0A, maximum surge (0-PK) 76.0A, peak AC input current 324... 528V (rms) three-phase 75.0A, and 20 ms line loss crossing. The DC input voltage of the control power supply is 24V DC±10%, and the DC input current of the control power supply is 4.3 ADC. The device also has a nominal bus output voltage of 458-747V DC and a bus three-phase continuous output current of 35.3 ADC. Its bus three-phase peak output current is 88.0 ADC, and the peak output current duration is 1.0 s/3.0 s. The driver has a bus rating of 24.0 kW for continuous output power (480V rms, three-phase), a bus rating of 60.0kW for peak output power (480V rms, three-phase), a bus overvoltage of -480V, and a rated AC input of 832V DC. The efficiency of this product is 0.98. The internal capacitance is 940 μF and its capacitive energy absorption is 207 J. For this driver, the short circuit current rating is 200,000 A (rms) symmetric.

2198-RP312 以太网/IP伺服驱动器 再生总线电源
