MPL-B430P-RJ22AA 交流伺服电机 直流保持制动器

【产品详情】

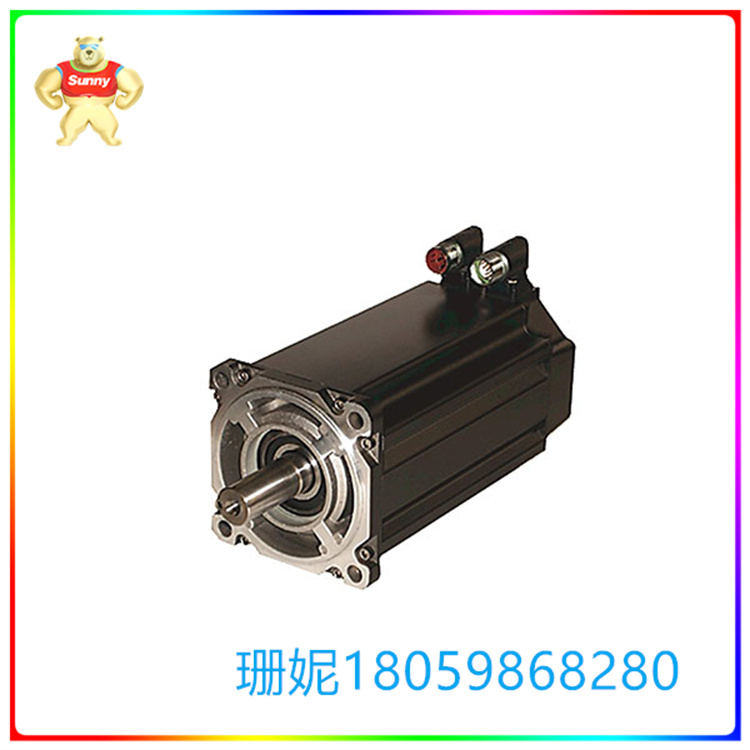

Allen-Bradley MPL-B430P-RJ22AA 伺服电机是一款具有标准选项的 400 伏交流伺服电机，属于低惯量 MP 系列伺服电机。它的额定最高转速为 5000 rpm。在MP系列电机上使用高能稀土磁铁，性能优异。MPL-B430P-RJ22AA伺服电机的功率输出为2.2千瓦。最大轴转速也为 5000 rpm。连续失速扭矩和峰值失速扭矩的规格分别为 5.99 N-m 和 19.8 N-m。驱动器重量约为 12 磅。安装时，在伺服电机的IEC公制安装法兰上设置了FF型孔。电机框架尺寸为 115 毫米，电机磁铁堆叠长度为 76.2 毫米。反馈通过集成的解析器提供。

MPL-B430P-RJ22AA 伺服电机上没有集成电机制动器。Allen-Bradley 确实为该伺服电机提供了 24 伏直流保持制动器，但根据应用要求，可以单独订购一个。可选的电机制动器重 16 磅，峰值背隙为 37 弧分，保持扭矩为 10.2 N-m，线圈电流为 0.57 至 0.70 安培。该伺服电机上也没有轴键和轴封。Allen-Bradley 提供可选的轴封套件，该套件由丁腈橡胶制成，有助于减少磨损。轴封将电机的环境等级从 IP 50 提高到 IP 66。MPL-B430P-RJ22AA 伺服电机的典型应用包括汽车、包装和电子组装。与 MP 系列电机一样，MPL-B430P-RJ22AA 伺服电机与多个 Allen-Bradley 驱动器系列兼容，包括 Kinetix 2000、Kinetic 7000 和 Kinetix 6000 系列。

MPL-B430P-RJ22AA 交流伺服电机 直流保持制动器

【英文介绍】

The Allen-Bradley MPL-B430P-RJ22AA servo motor is a 400 volt AC servo motor with standard options and belongs to the low inertia MP family of servo motors. It is rated for a maximum speed of 5000 rpm. High energy rare earth magnets are used in MP series motors with excellent performance. The MPL-B430P-RJ22AA servo motor has a power output of 2.2 kW. The maximum shaft speed is also 5000 rpm. The specifications of continuous stall torque and peak stall torque are 5.99 N-m and 19.8 N-m respectively. The drive weighs about 12 pounds. During installation, FF holes are provided on the IEC metric mounting flange of the servo motor. The motor frame size is 115 mm and the motor magnet stack length is 76.2 mm. Feedback is provided through an integrated parser.

There is no integrated motor brake on the MPL-B430P-RJ22AA servo motor. Allen-Bradley does provide a 24-volt DC holding brake for this servo motor, but one can be ordered separately depending on application requirements. The optional motor brake weighs 16 pounds, has a peak back backlash of 37 arc minutes, a holding torque of 10.2 N-m, and a coil current of 0.57 to 0.70 amps. There is also no shaft key and shaft seal on the servo motor. Allen-Bradley offers an optional shaft seal kit made of nitrile butadiene rubber to help reduce wear and tear. The shaft seal increases the motor's environmental rating from IP 50 to IP 66. Typical applications of the MPL-B430P-RJ22AA servo motor include automotive, packaging and electronic assembly. Like the MP series motors, the MPL-B430P-RJ22AA servo motor is compatible with several Allen-Bradley drive families, including the Kinetix 2000, Kinetic 7000 and Kinetix 6000 series.

MPL-B430P-RJ22AA 交流伺服电机 直流保持制动器
