20BD248A0ANNANC0 交流变频器 可调频率三相
【产品详情】

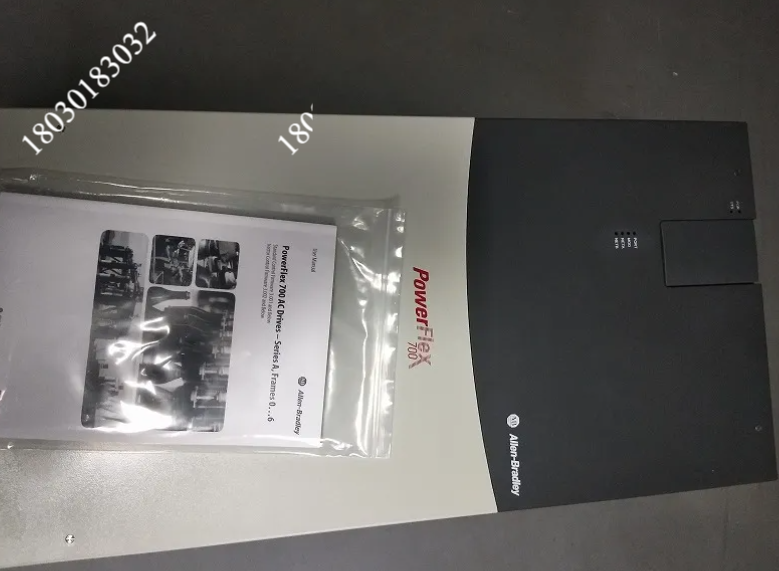

Allen-Bradley 20BD248A0ANNANC0 是一款可调频率三相 PowerFlex 700 交流变频器,额定电压为 480V 交流,额定电压为 248 A,正常占空比为 200 HP,输入电压为 480V,频率为 60 Hz。它使用 6 的框架尺寸,并具有 NEMA Type 1、IP20 外壳。此驱动器的人机接口模块 (HIM) 是空白的,它附带了手动文档。虽然 20BD248A0ANNANC0 驱动器具有 EMC 滤波器和 CM 扼流圈,但它没有配备内部制动电阻器,只有标准控制。该驱动器可以安装在机柜内部或外部,但重要的是其位置没有腐蚀性颗粒或挥发性蒸气、气体或灰尘。它还应具有 0 至 50 °C 的环境温度(运行时)和 -40 至 70 °C (驱动器在存储中)。其相对湿度也应在5%至95%之间,并具有1级或2级周围环境污染程度。运行时,20BD248A0ANNANC0 驱动器的峰值工作振动为 1 g,峰值工作冲击为 15 g,持续时间为 11 ms (+/- 1 ms)。20BD248A0ANNANC0 驱动器有 3 种可用的电机控制,即每赫兹电压控制、使用获得专利的 Allen-Bradley Force 技术的矢量控制和无传感器矢量控制。它还具有其他功能,例如惯性穿越、飞启动、集成过程 PI 控制、速度和扭矩调节、高速模拟输入、位置分度器/速度轮廓仪、电流限制和总线电压调节、TorqPrve 和编程灵活性。

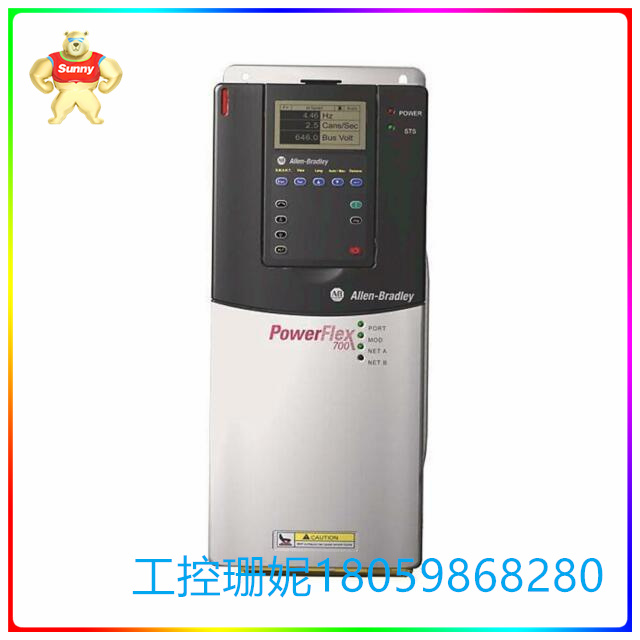

Allen-Bradley 20BD248A0ANNANC0 是一款 PowerFlex 700 可调频率交流变频器。该驱动器主要具有 380-480 伏交流电(三相)的输入电源电压范围,并提供 0-460 伏交流电(三相)的输出电压。它通过其适用的输出功率(正常情况下为 200 马力)和重载运行时 150 马力的输出功率以及 248 安培的连续输出电流来驱动连接的电机。
作为 PowerFlex 700 变频器产品系列的一部分,额定功率为 200 马力,它具有固有的功能,例如集成式 EMC 滤波;内部沟通;一体式动态制动晶体管。它还能够支持多种电机控制方法,包括用于风扇和泵应用的伏特/赫兹 (V/Hz);用于扭矩调节的无传感器矢量控制 (SVC)。20BD248A0ANNANC0 专门配备了矢量控制功能,与 SVC 相比,它提供了出色的扭矩调节,包括出色的低速/零速性能。矢量控制方法利用Allen-Bradley的专利技术,FORCE技术。
此外,20BD248A0ANNANC0 具有快速电流限制和总线电压调节功能,可实现最长的加速和减速时间,而不会导致驱动器跳闸。它支持飞启动,用于建立与旋转负载的平稳和瞬时连接,而无需速度反馈,也不受指令电机旋转方向的影响。它还具有惯性穿越功能,通过利用存储的惯性防止驱动器跳闸。此功能在停电时很实用。
20BD248A0ANNANC0 还具有积分比例 + 积分 (P+I) 控制器算法,使驱动器成为独立控制器。这样就无需外部PID控制器来操作变频器。它还具有TorqProve功能,可确保在驱动器和机械制动器之间的控制权转移期间控制负载。
20BD248A0ANNANC0 交流变频器 可调频率三相
【英文介绍】
Allen-Bradley 20BD248A0ANNANC0 is an adjustable frequency three-phase PowerFlex 700 AC inverter with A rated voltage of 480V AC, rated voltage of 248A, normal duty cycle of 200 HP, input voltage of 480V. The frequency is 60 Hz. It uses a frame size of 6 and has a NEMA Type 1, IP20 housing. The Man Machine interface module (HIM) for this drive is blank and it comes with manual documentation. Although the 20BD248A0ANNANC0 driver has an EMC filter and CM choke, it is not equipped with an internal brake resistor, only standard controls. The drive can be installed inside or outside the cabinet, but it is important that its location is free of corrosive particles or volatile vapors, gases, or dust. It should also have an ambient temperature of 0 to 50 °C (when running) and -40 to 70 °C (when the drive is in storage). Its relative humidity should also be between 5% and 95%, and have a level 1 or 2 ambient pollution degree. In operation, the 20BD248A0ANNANC0 driver has a peak operating vibration of 1 g, a peak operating shock of 15 g, and a duration of 11 ms (+/ -1 ms). The 20BD248A0ANNANC0 driver has three available motor controls, voltage per Hertz, vector control using patented Allen-Bradley Force technology, and sensorless vector control. It also has additional features such as inertial crossing, fly start, integrated process PI control, speed and torque regulation, high-speed analog inputs, position divider/speed profiler, current limiting and bus voltage regulation, TorqPrve, and programming flexibility.
The Allen-Bradley 20BD248A0ANNANC0 is a PowerFlex 700 adjustable frequency AC inverter. The driver mainly has an input supply voltage range of 380-480 volts AC (three-phase) and provides an output voltage of 0-460 volts AC (three-phase). It drives the connected motor through its applicable output power (200 HP under normal conditions) and an output power of 150 HP during heavy duty operation, as well as a continuous output current of 248 amps.
As part of the PowerFlex 700 inverter product family, rated at 200 HP, it has inherent features such as integrated EMC filtering; Internal communication; Integrated dynamic brake transistor. It also supports a variety of motor control methods, including volts/Hertz (V/Hz) for fan and pump applications; Sensorless vector control (SVC) for torque regulation. The 20BD248A0ANNANC0 is specially equipped with vector control and offers excellent torque regulation compared to the SVC, including excellent low/zero speed performance. The vector control method utilizes Allen-Bradley's patented technology, FORCE technology.
In addition, the 20BD248A0ANNANC0 features fast current limiting and bus voltage regulation for maximum acceleration and deceleration times without causing the driver to trip. It supports flying start and is used to establish a smooth and instantaneous connection to the rotating load without speed feedback and is not affected by the direction of rotation of the command motor. It also has an inertial traverse function, which prevents the drive from tripping by utilizing the inertia of the storage. This feature is useful during power outages.
The 20BD248A0ANNANC0 also features an Integral proportional + integral (P+I) controller algorithm that makes the drive an independent controller. This eliminates the need for an external PID controller to operate the inverter. It also has a TorqProve function, which ensures that the load is controlled during the transfer of control between the drive and the mechanical brake.
