2715P-T12WD 触摸屏终端 该终端带有动画图形

【产品详情】

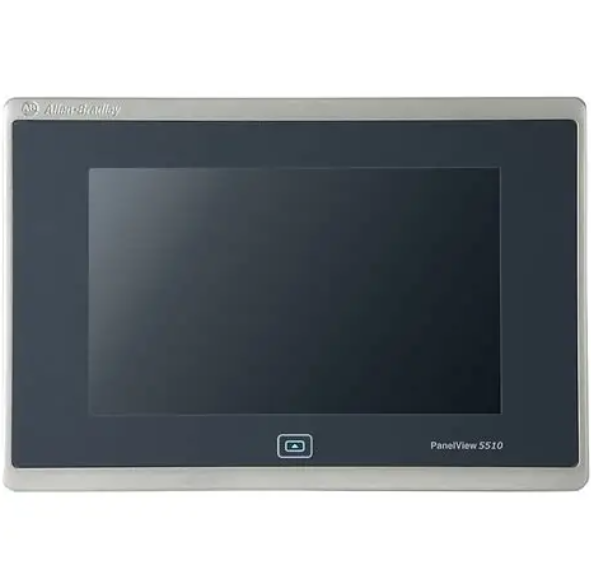

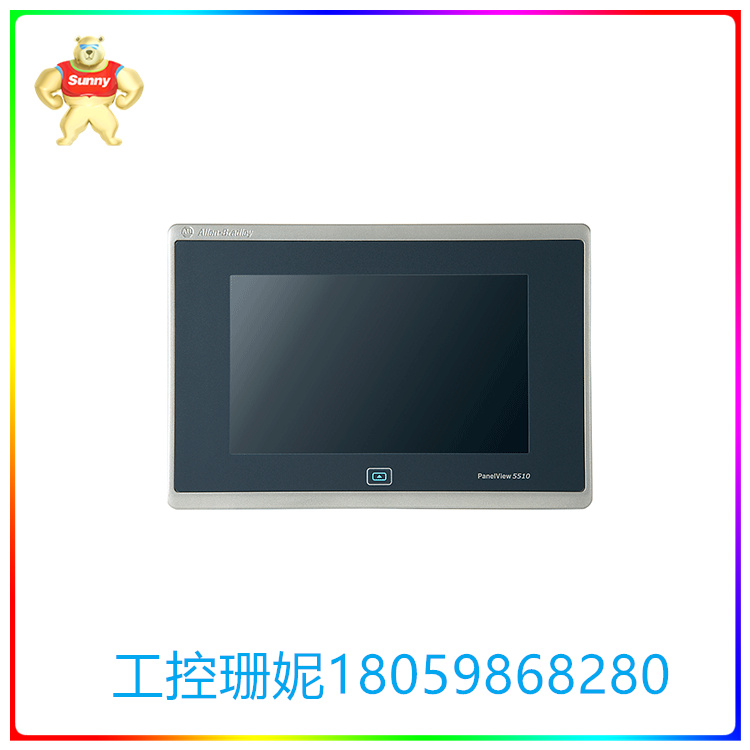

2715P-T12WD 终端是 Allen-Bradley PanelView 5510 系列终端。它被设计为用于可视化和控制工业应用的操作员界面终端。Allen-Bradley 2715P-T12WD 终端还可用于通过 EtherNet/IP 工业网络控制 Allen-Bradley ControlLogix L7 和 L8 控制器以及 Allen-Bradley CompactLogix L1、L2 和 L3 控制器。该终端带有动画图形。

Allen-Bradley PanelView 5510 2715P-T12WD 操作界面终端是一款触摸屏终端。它没有配备物理键盘，但它需要的所有控件都可以作为终端屏幕上的虚拟键使用，用户可以使用指尖或手写笔激活。终端上的屏幕宽12.1英寸，图形为WXGA TFT彩色图形，清晰美观。触摸屏的纵横比为 16：10，分辨率为 1280 x 800 像素。2715P-T12WD 终端使用直流电源供电，其内存分为 1 GB 用户内存和 1 GB RAM。该终端的额定温度范围为 32 至 131 华氏度（0 至 55 摄氏度）。在持续炎热的环境中使用时，应避免阳光直射，并配备冷却风扇或其他类型的冷却设备。

2715P-T12WD 触摸屏终端 该终端带有动画图形

【英文介绍】

The 2715P-T12WD terminal is an Allen-Bradley PanelView 5510 series terminal. It is designed as an operator interface terminal for visualizing and controlling industrial applications. The Allen-Bradley 2715P-T12WD terminal can also be used to control Allen-Bradley ControlLogix L7 and L8 controllers as well as Allen-Bradley over EtherNet/IP industrial networks CompactLogix L1, L2, and L3 controllers. The terminal comes with animated graphics.

Allen-Bradley PanelView 5510 2715P-T12WD Operator Interface terminal is a touch screen terminal. It doesn't come with a physical keyboard, but all the controls it needs can be used as virtual keys on the terminal screen, which users can activate with their fingertips or a stylus. The screen on the terminal is 12.1 inches wide and the graphics are WXGA TFT color graphics, which is clear and beautiful. The touch screen has a 16:10 aspect ratio and a resolution of 1280 x 800 pixels. The 2715P-T12WD terminal uses a DC power supply and its memory is divided into 1 GB of user memory and 1 GB of RAM. The terminal is rated for a temperature range of 32 to 131 degrees Fahrenheit (0 to 55 degrees Celsius). When used in a continuously hot environment, avoid direct sunlight and be equipped with cooling fans or other types of cooling equipment.

2715P-T12WD 触摸屏终端 该终端带有动画图形
