2711R-T7T 图形操作终端 支持多种通信协议
【产品详情】

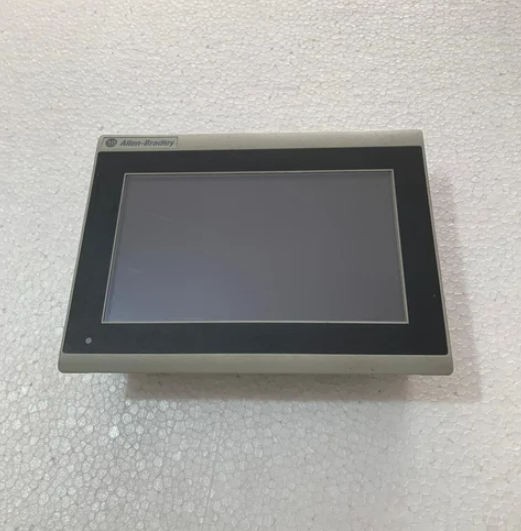

2711R-T7T 是 Allen-Bradley 的图形操作终端。它是可视化硬件 PanelView 800 的一部分,与 Allen-Bradley MicroLogix、CompactLogix、SLC 500、PLC5 和 Micro 800 控制器特别兼容。该操作终端支持多种通信协议,如串行、DF1、DH485、MODBUS、MODBUS ASCII、MODBUS Unicode、Allen-Bradley CIP 和以太网 I/P。 2711R-T7T 配备 7 英寸彩色显示屏,支持宽屏格式的垂直或水平方向。
它的分辨率为 800 x 480,有效可视区域为 153.6 x 86.6 毫米(6.05 x 3.41 英寸)。它具有模拟电阻式触摸屏界面,设计使用寿命高达 100 万次。
它配备了一个总计 256 MB 闪存和 256 MB DDR RAM 的集成内存。它支持安装外部存储,例如工业级 micro-SD 卡,并且特别兼容 SDSC 和 Class 6 和 Class 10 SDHC micro-SD 卡,FAT32/16 格式,最大大小为 32 GB。

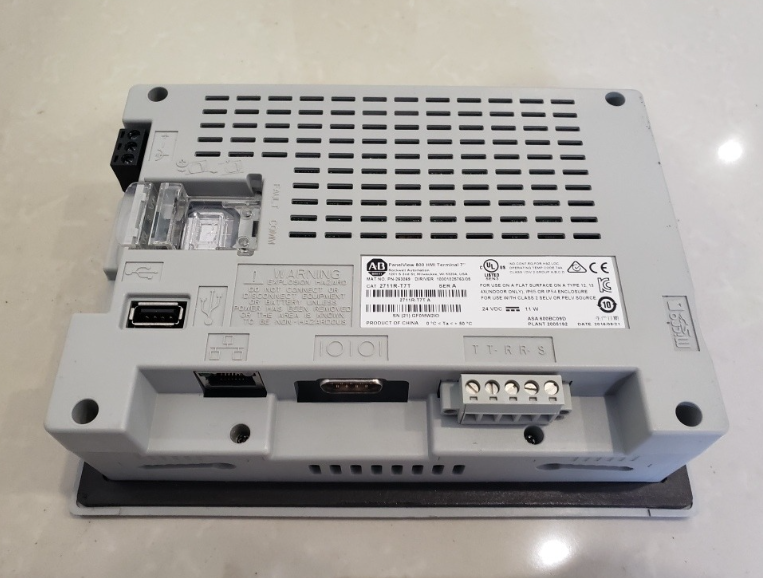

它具有以太网、RS232/RS422/RS485通讯端口等多种接口,以及用于插入鼠标和键盘等外部输入设备的USB外设端口。
它支持批处理应用程序的配方实施,其中最多可以存储 50 个配方。
彩色透射式 TFT 矩阵 LCD 触摸屏尺寸为 7 英寸,具有 65K 色,WVGA 分辨率为 800 x 480。它采用宽屏格式,显示区域为 6.05 x 3.41 英寸。它还具有 LED 背光,显示屏在 40,000 摄氏度下的最低使用寿命为 5 小时或 25 年。该终端配备 256 MB 内部存储和 256 MB DDR RAM,处理器具有 800 MHz 的 CPU 速度。2711R-T7T 采用电阻式触摸输入,并配有一个用于额外内存的 microSD 插槽。如果用户计划使用 microSD 卡,请确保使用工业级卡。它与高达 10 GB 的 32 类 SDHC microSD 卡兼容。终端的 USB 2.0 和以太网 (10/100 Mbps) 端口允许用户连接到不同的网络。该端子还具有单独的 RS-232 和 RS-422/RS-485 连接器以及带电池的实时时钟。2711R-T7T 尺寸为 5.67 x 7.75 x 2.13 英寸,重 0.651 千克或 1.44 磅。
2711R-T7T 终端经过优化,可与 MicroLogix、Micro800 和 CompactLogix 5370(CompactLogix 5370-L37 除外)控制器兼容。终端显示带有嵌入式变量的报警消息,还具有上传和下载数据或参数设置的功能,并具有配方功能。此终端存在 50 个配方文件。2711R-T7T 的标称输入电压为 24 伏直流电,而其输入电压范围为 18 至 32 伏直流电。在 24 伏直流电下,它的最大功耗为 11 瓦或 0.40 安培,散热为 34 BTU/小时。请注意,它要求环境的环境温度在 0 到 50 摄氏度的范围内。该终端的工作温度范围为 0 至 50 摄氏度,非工作温度范围为 -25 至 75 摄氏度。它还具有 2 至 10 赫兹时 500 G 的工作振动、15 G 的工作冲击和 30 G 的非工作冲击。其非冷凝相对湿度为 5% 至 95%。
2711R-T7T 图形操作终端 支持多种通信协议
【英文介绍】
The 2711R-T7T is Allen-Bradley's graphic operation terminal. It is part of the PanelView 800 visualization hardware and is particularly compatible with Allen-Bradley MicroLogix, CompactLogix, SLC 500, PLC5, and Micro 800 controllers. The operating terminal supports multiple communication protocols such as serial, DF1, DH485, MODBUS, MODBUS ASCII, MODBUS Unicode, Allen-Bradley CIP, and Ethernet I/P. The 2711R-T7T features a 7-inch color display that supports vertical or horizontal orientation in widescreen format.
It has a resolution of 800 x 480 and an effective viewing area of 153.6 x 86.6 mm (6.05 x 3.41 inches). It has an analog resistive touch screen interface and is designed to last up to 1 million cycles.
It comes with an integrated memory that totals 256 MB of flash memory and 256 MB of DDR RAM. It supports the installation of external storage, such as industrial-grade micro-SD cards, and is particularly compatible with SDSC and Class 6 and Class 10 SDHC micro-SD cards in FAT32/16 format with a maximum size of 32 GB.
It has a variety of interfaces such as Ethernet, RS232/RS422/RS485 communication ports, and USB peripheral ports for plugging in external input devices such as mice and keyboards.
It supports recipe implementation for batch applications where up to 50 recipes can be stored.
The color transmissed-TFT Matrix LCD touch screen is 7 inches in size, with 65K colors and a WVGA resolution of 800 x 480. It is in widescreen format with a display area of 6.05 x 3.41 inches. It also has an LED backlight, and the display has a minimum service life of 5 hours or 25 years at 40,000 degrees Celsius. The terminal comes with 256 MB of internal storage and 256 MB of DDR RAM, and the processor has a CPU speed of 800 MHz. The 2711R-T7T features resistive touch input and a microSD slot for additional memory. If the user plans to use a microSD card, make sure to use an industrial-grade card. It is compatible with Class 32 SDHC microSD cards up to 10 GB. The terminal's USB 2.0 and Ethernet (10/100 Mbps) ports allow users to connect to different networks. The terminal also has separate RS-232 and RS-422/RS-485 connectors and a real-time clock with battery. The 2711R-T7T measures 5.67 x 7.75 x 2.13 inches and weighs 0.651 kg or 1.44 pounds.
The 2711R-T7T terminal is optimized for compatibility with MicroLogix, Micro800, and CompactLogix 5370 (except CompactLogix 5370-L37) controllers. The terminal displays alarm messages with embedded variables, also has the ability to upload and download data or parameter Settings, and has a recipe function. There are 50 recipe files in this terminal. The 2711R-T7T has a nominal input voltage of 24 volts DC, while its input voltage ranges from 18 to 32 volts DC. At 24 volts DC, it has a maximum power consumption of 11 watts or 0.40 amps and a heat dissipation of 34 BTU/ hour. Please note that it requires the ambient temperature of the environment to be in the range of 0 to 50 degrees Celsius. The terminal has an operating temperature range of 0 to 50 degrees Celsius and a non-operating temperature range of -25 to 75 degrees Celsius. It also has a working vibration of 500 G at 2 to 10 Hz, a working shock of 15 G and a non-working shock of 30 G. Its non-condensing relative humidity ranges from 5% to 95%.
