20G11NC072JA0NNNNN 变频器 具有带预充电功能的交流输入

【产品详情】

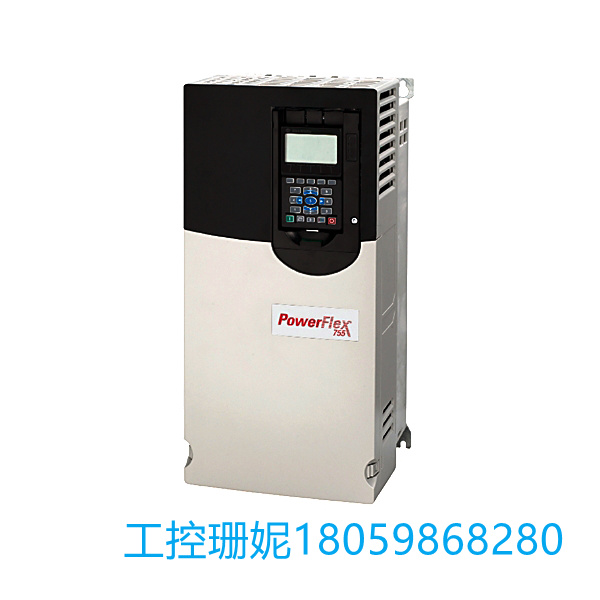

20G11NC072JA0NNNNN 变频器是由 Allen-Bradley/Rockwell Automation 设计和制造的变频器。该驱动器具有带预充电功能的交流输入。该驱动器可以在 380 至 400 伏交流电的交流电压下运行。20G11NC072JA0NNNNN 驱动器的工作频率为 50 赫兹。对于电流，驱动器的额定电流为 72 安培，视在额定功率为 37 千瓦。交流驱动器过滤配置安装了跳线作为默认 CM 电容配置。20G11NC072JA0NNNNN 驱动器没有内部电阻器，但具有用于动态制动的内部晶体管。对于操作员界面，驱动器没有安装在门上的人机界面模块。

Allen-Bradley 20G11NC072JA0NNNNN 变频器是更广泛的 PowerFlex 755 系列的一部分。该系列变频器旨在为工业车间的电机控制提供经济高效的解决方案。因此，20G11NC072JA0NNNNN 驱动器与同系列中的其他驱动器一样，具有令人印象深刻的安全性、高性能和增强的电机控制功能。借助集成运动控制的附加功能，PowerFlex 和 Kinetix 变频器可以在同一 EtherNet/IP 网络上共存，并且可以使用相同的运动指令集进行编程、配置和控制。20G11NC072JA0NNNNN 变频器已通过美国船级社 （ABS）、电力研究所 （EPRI） 和保险商实验室 （UL） 的认证。此外，该驱动器符合欧洲指令，如EMC指令、低电压指令和ATEX指令。此外，20G11NC072JA0NNNNN 驱动器符合多项功能安全标准。该驱动器的防护等级为 IP 20。

20G11NC072JA0NNNNN 变频器 具有带预充电功能的交流输入

【英文介绍】

The 20G11NC072JA0NNNNN inverter is a frequency converter designed and manufactured by Allen-Bradley/Rockwell Automation. The driver has AC input with precharge function. The drive can operate at an AC voltage of 380 to 400 volts AC. The 20G11NC072JA0NNNNN driver operates at 50 Hz. For current, the driver is rated at 72 amps and is rated at 37 kW. The AC driver filter configuration has a jumper installed as the default CM capacitor configuration. The 20G11NC072JA0NNNNN driver has no internal resistor, but has internal transistors for dynamic braking. For the operator interface, the driver has no HMI module mounted on the door.

The Allen-Bradley 20G11NC072JA0NNNNN inverter is part of the broader PowerFlex 755 series. This series of inverters is designed to provide a cost-effective solution for motor control in industrial workshops. As a result, the 20G11NC072JA0NNNNN drive, like other drives in the same family, offers impressive safety, high performance and enhanced motor control. With the added functionality of integrated motion control, PowerFlex and Kinetix drives can co-exist on the same EtherNet/IP network and can be programmed, configured and controlled using the same set of motion instructions. The 20G11NC072JA0NNNNN inverter is certified by the American Bureau of Shipping (ABS), the Electric Power Research Institute (EPRI) and Underwriters Laboratories (UL). In addition, the drive complies with European directives such as the EMC Directive, the Low Voltage Directive and the ATEX Directive. In addition, the 20G11NC072JA0NNNNN driver meets several functional safety standards. The protection level of this drive is IP 20.

20G11NC072JA0NNNNN 变频器 具有带预充电功能的交流输入
