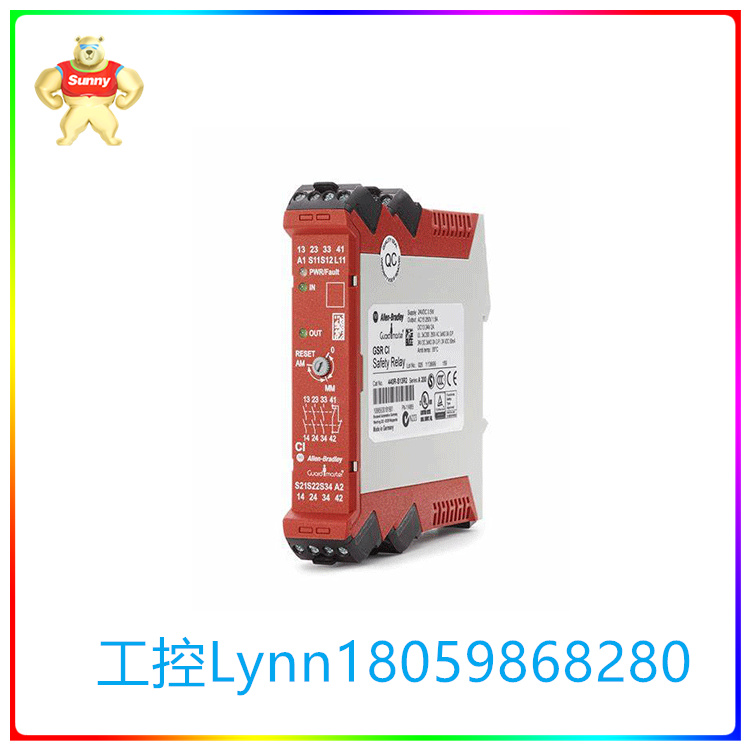

440R-S13R2 双通道光束/光幕 安全继电器

【产品详情】

产品详情

Rockwell Automation Guardmaster 440R SI/CI - 单输入安全继电器

使用罗克韦尔自动化的 440R SI/CI Guardmaster 安全继电器，确保更轻松的安装和简化的高性能安全控制系统。这些继电器非常适合使用一个双通道或单通道安全装置的简单安全功能，以及与另一个GSR继电器组合的全局急停功能。

借助 Guardmaster 系列安全继电器，控制系统中的许多重要组件（如安全联锁开关、压敏安全地毯、急停装置和安全光幕等 OSSD 设备）都可以与同一继电器兼容，无需额外配置，从而节省您的时间和金钱。这些 440R SI/CI 安全继电器通过可靠、快速的故障检测帮助您最大限度地减少停机时间，从而防止机器损坏风险并保护人员免受伤害。

特点和优点：

• 紧凑的解决方案，节省DIN导轨

上的能源和空间 • TÜV 认证的单个旋转开关可配置自动/手动或监控手动复位

• 通用输入与联锁装置、光幕、安全垫、急停开关和 SensaGuard

完全兼容 • 单线安全输出连接以控制其他安全继电器，例如作为全局急停，并通过输出模块进行扩展，同时保持 SIL 3， PL

• 适用于最高 PLe、Cat.4 符合 ISO 13849-1 标准，SIL CL3 符合 IEC 62061

• 端子组合在一起，用于电源、输入和输出，以实现清晰的连接

注意：

CI 型号上的端子布局与传统 Guardmaster MSR 安全继电器类似。

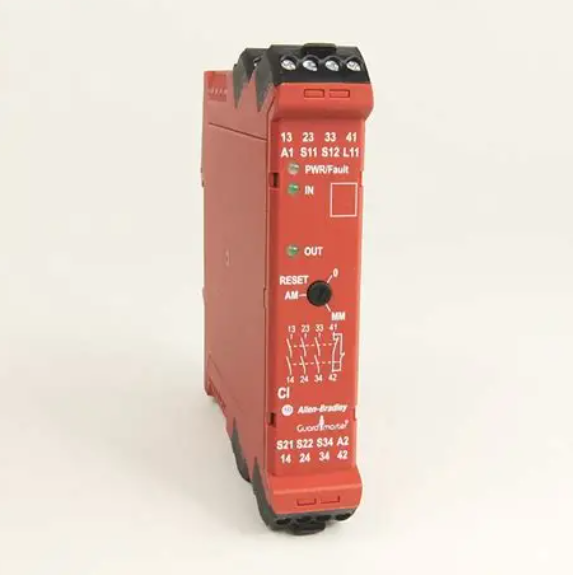

440R-S13R2 兼容输入安全继电器 （CI）

440R-S13R2 安全继电器具有 1 个双通道通用输入、3 个常开即时安全输出和 1 个常闭固态即时辅助输出。它具有 24V 直流电源和可拆卸端子。为了易于安装和系统灵活性，该装置具有 1 个单线安全输出。复位配置为自动/手动或手动监控复位，为您的应用提供最佳的多功能性。该安全继电器结构紧凑，可安装在DIN导轨（22.5 mm）上，以节省空间和能源。CI 型号具有 LED 指示灯、1NC、用于诊断的光总线。终端布局和配置一致，确保无缝安装。外壳的环保等级为IP40，终端防护等级为IP20。工作温度范围为 -5 至 +55 ° （23...131 °).

什么是安全继电器？

安全继电器是用于监控机器安全系统中的错误或故障的设备，当它们检测到这些错误时可以执行安全命令，以将风险降低到可接受的水平。通过这样做，它们可以防止可能导致人员伤害和机器损坏的危险。单功能继电器管理一个特定功能，而多功能继电器可以监督不同的活动。安全继电器也可以相互连接。它们通常用于工厂等工业环境，作为危险机器安全控制电路的一部分。典型应用包括：安全垫、急停按钮、光幕和磁性开关。罗克韦尔自动化提供高质量、可靠的安全继电器，可提供卓越的性能，并确保最大的保护和生产率。

440R-S13R2 双通道光束/光幕 安全继电器

【英文介绍】

Product details

Rockwell Automation Guardmaster 440R SI/CI - Single input safety relay

Use Rockwell Automation's 440R SI/CI Guardmaster safety relays to ensure easier installation and simplified high-performance safety control systems. These relays are well suited for the simple safety features of a two-channel or single-channel safety device, as well as the global scram function in combination with another GSR relay.

With the Guardmaster series of safety relays, many important components of the control system, such as safety interlock switches, pressure sensitive safety carpets, scram devices and OSSD devices such as safety light curtains, can be compatible with the same relay without additional configuration, saving you time and money. These 440R SI/CI safety relays help you minimize downtime with reliable, fast fault detection, thereby preventing the risk of machine damage and protecting people from injury.

Features and advantages:

• Compact solution to save DIN rail

• The TUV-certified single rotary switch can be configured with automatic/manual or monitored manual reset

• Universal input and interlocking devices, light curtains, safety pads, scram switches and SensaGuard

Fully compatible • Single wire safety output connection to control other safety relays, for example as a global scram, and extended by the output module while maintaining SIL 3, PL

• Suitable for the highest PLe, Cat.4 according to ISO 13849-1, SIL CL3 according to IEC 62061

• Terminals are combined for power, input, and output for a clear connection

Attention:

The terminal layout on the CI model is similar to that of a traditional Guardmaster MSR safety relay.

440R-S13R2 Compatible Input Safety Relay (CI)

The 440R-S13R2 safety relay has one dual-channel universal input, three normally open real-time safety outputs, and one normally closed solid-state real-time auxiliary output. It has a 24V DC power supply and removable terminals. For ease of installation and system flexibility, the unit has a single wire safety output. Reset is configured for automatic/manual or manual monitoring of the reset, providing the best versatility for your application. The safety relay is compact and can be mounted on a DIN rail (22.5 mm) to save space and energy. CI models have LED indicators, 1NC, and optical bus for diagnostics. Consistent terminal layout and configuration ensures seamless installation. The enclosure has an environmental protection rating of IP40 and the terminal protection rating of IP20. Operating temperature range from -5 to +55 ° (23... 131 °).

What is a safety relay?

Safety relays are devices used to monitor errors or failures in a machine safety system and when they detect these errors can execute safety commands to reduce the risk to an acceptable level. By doing so, they can prevent hazards that can lead to injury to people and damage to machines. Single-function relays manage a specific function, while multi-function relays can supervise different activities. Safety relays can also be interconnected. They are commonly used in industrial Settings such as factories as part of safety control circuits for dangerous machines. Typical applications include: safety pads, scram buttons, light curtains, and magnetic switches. Rockwell Automation offers high quality, reliable safety relays that deliver superior performance and ensure maximum protection and productivity.

440R-S13R2 双通道光束/光幕 安全继电器
