1747-L551 高性能控制器  支持在线和离线编程

【产品详情】

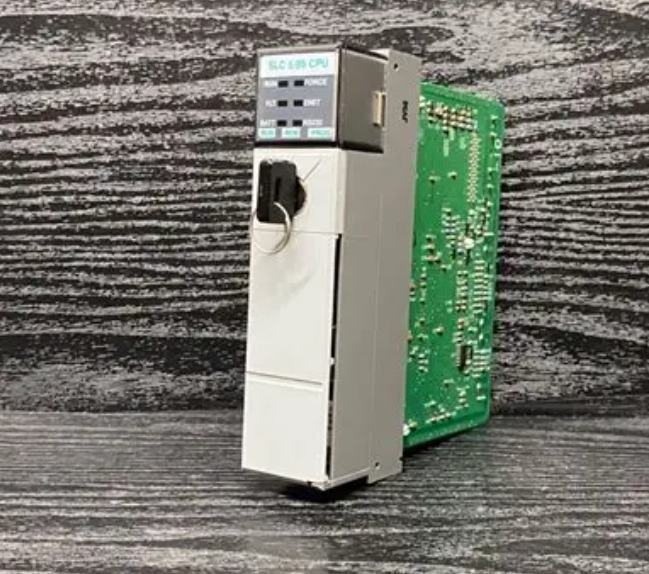

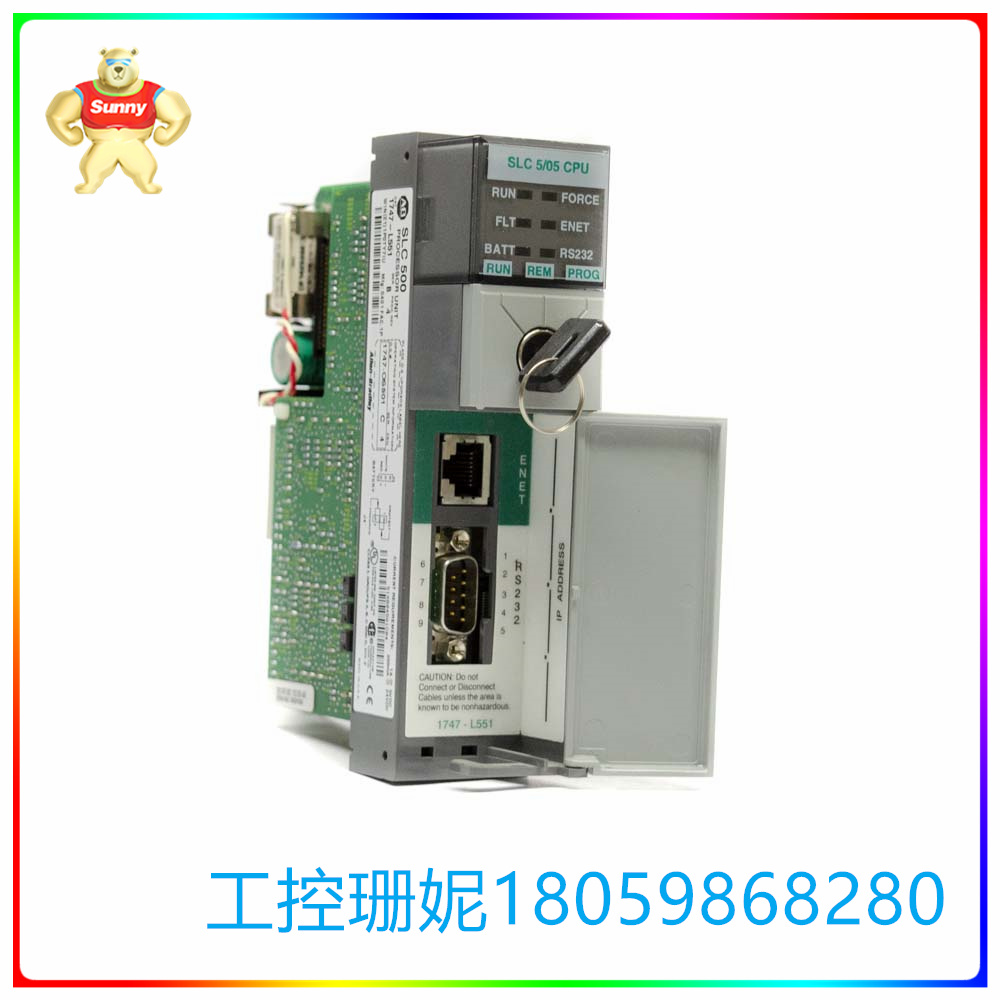

Allen-Bradley 1747-L551 处理器硬件集成了 16 KB 的程序存储器。它是高性能控制器，能够控制多达 4096 个输入和输出点。该模块支持在线和离线编程，例如运行时编辑。Allen-Bradley 1747-L551 具有通道间、远程 I/O 和 DeviceNet 直通功能。该模块还具有内置的实时时钟和日历。该模块带有用于网络连接的以太网端口和用于点对点通信的 RS232 端口。RS-232 通道支持 DF1 全双工、DF1 半双工主站和 DF1 无线电调制解调器。集成以太网端口支持内置 10/100 Base-T 以太网通道，以支持 SNMP、BOOTP、扩展消息传递功能和高速通信。对于编程，它包括高级数学指令和各种附加指令。它还包括对间接寻址的支持。SLC 505 每个关键字的典型程序扫描时间为 0.9 毫秒，典型的 I/O 扫描时间为 0.225 毫秒。

该模块具有 150 伏交流电的介电耐受性，符合 UL 508、CSA C22.2 No. 142 标准。1747-L551 在 5 至 2000 赫兹时的工作振动为 2.5G。非工作振动为 5 至 2000 赫兹的 5G。该模块通信电路之间的隔离度约为 500 伏直流电。该模块的背板和 I/O 之间的隔离为 1500 伏交流电。在安装和卸载 I/O 设备之前，请断开控制器和为 I/O 设备提供服务的其他电源的电源。1747-L551 的工作温度为 32 至 140 华氏度，存储温度约为 -40 至 185 华氏度。Allen-Bradley 1747-L551 的工作冲击为 30G（3 个脉冲，11 毫秒）。非工作冲击为 50G（3 个脉冲，11 毫秒）。相对湿度为5-95%，无冷凝。该模块的扫描时间通常约为 0.9 毫秒/K。它的 LED 灯将指示几种不同的情况，包括模块运行时、CPU 出现故障时、电池电量不足时、强制 I/O 时或以太网/RS-232 端口处于活动状态时。

此处理器专门安装在 SLC 500 机箱的零插槽 （0） 中。它支持远程 I/O 实现，使用安装在 CPU 所在机箱上的通信适配器，以及安装在描述远程 I/O 模块的机箱上的扫描仪模块。支持的通信协议包括以太网、远程 I/O （RIO）、DH485 和 Data Highway Plus （DH+）。必须明确的是，远程 I/O 技术不同于远程 I/O （RIO） 协议。远程 I/） 技术或有时称为分布式 I/O 是一种技术，它允许通过远程机箱将输入和输出模块安装在远离处理器的地方，而 CPU 仍将远程模块视为本地机箱的一部分。远程I/O或通常称为RIO是Allen-Bradley的专有协议。

该处理器与其他处理器类似，设计具有与基于计算机的控制系统（如人机界面 （HMI） 和监督控制和数据采集 （SCADA））进行通信的能力。

1747-L551 高性能控制器  支持在线和离线编程

【英文介绍】

The Allen-Bradley 1747-L551 processor hardware incorporates 16 KB of program memory. It is a high performance controller capable of controlling up to 4096 input and output points. This module supports both online and offline programming, such as runtime editing. Allen-Bradley 1747-L551 features inter-channel, remote I/O, and DeviceNet pass-through capabilities. The module also has a built-in real-time clock and calendar. The module comes with an Ethernet port for network connectivity and an RS232 port for point-to-point communication. The RS-232 channel supports DF1 full duplex, DF1 half-duplex master, and DF1 radio modems. The Integrated Ethernet port supports built-in 10/100 Base-T Ethernet channels to support SNMP, BOOTP, extended messaging capabilities, and high-speed communication. For programming, it includes advanced mathematical instructions and various additional instructions. It also includes support for indirect addressing. The SLC 505 has a typical program scan time of 0.9 ms per keyword and a typical I/O scan time of 0.225 ms.

The module has dielectric resistance of 150 volts AC and complies with UL 508 and CSA C22.2 No. 142 standards. The 1747-L551 has an operating vibration of 2.5G at 5 to 2000 Hz. The non-operating vibration is 5 to 2000 Hz for 5G. The isolation between the communication circuits in the module is about 500 volts DC. The isolation between the backplane of the module and the I/O is 1500 volts AC. Before installing and uninstalling I/O devices, disconnect the controller and other power supplies that service the I/O devices. The 1747-L551 has an operating temperature of 32 to 140 degrees Fahrenheit and a storage temperature of about -40 to 185 degrees Fahrenheit. The Allen-Bradley 1747-L551 has an operating shock of 30G (3 pulses, 11 milliseconds). The non-operating shock is 50G (3 pulses, 11ms). The relative humidity is 5-95% without condensation. The scan time of this module is usually about 0.9 ms /K. Its LED lights will indicate several different situations, including when the module is running, when the CPU is failing, when the battery is low, when the I/O is forced, or when the Ethernet /RS-232 port is active.

This processor is specifically installed in slot Zero (0) of the SLC 500 chassis. It supports remote I/O implementations, using a communication adapter installed in the chassis where the CPU is located, and a scanner module installed in the chassis where the remote I/O module is described. Supported communication protocols include Ethernet, Remote I/O (RIO), DH485, and Data Highway Plus (DH+). To be clear, remote I/O technology is different from the Remote I/O (RIO) protocol. Remote I/ technology or sometimes referred to as distributed I/O is a technique that allows input and output modules to be installed away from the processor via a remote chassis, while the CPU still treats the remote module as part of the local chassis. Remote I/O, or RIO as it is commonly called, is a proprietary protocol of Allen-Bradley.

Similar to other processors, the processor is designed with the ability to communicate with computer-based control systems such as Human machine interface (HMI) and Supervised Control and Data acquisition (SCADA).
