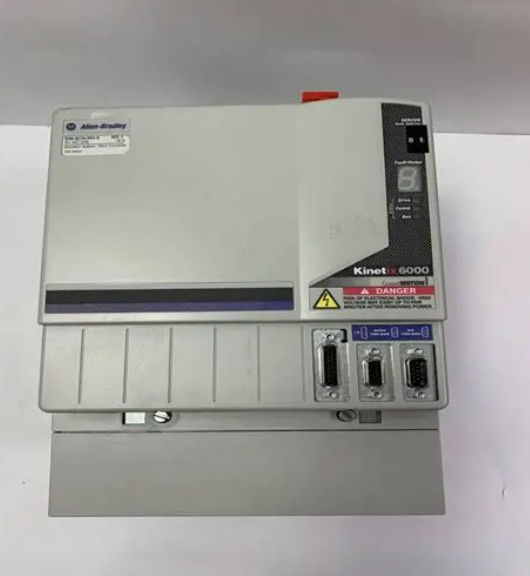

2094-BC04-M03-S 多轴伺服驱动器 集成轴模块

【产品详情】

2094-BC04-M03 是 Kinetix 6000 多轴伺服驱动器系列的组件模块。该产品专门用于集成轴模块 （IAM），可为总线提供 27.6 kW 的连续输出功率;A 系列驱动器的峰值输出功率为 55.2 kW，B、C 和 D 系列驱动器的峰值输出功率为 69 kW。该模块的总线连续输出电流为 41.5 A，A 系列总线的峰值输出电流为 83.1 A，B、C 和 D 系列的峰值输出电流为 103.8 A。 该模块需要两 （2） 个输入电压。

对于驱动模块，交流输入电压范围为 324-528V rms，三相，标称范围为 360-480VAC，而对于控制电路，输入电压要求为 95-264Vrms，单相，标称范围为 110-240V rms。

该集成轴模块 （IAM） 的功耗范围为 94 瓦 @ 20%;130 瓦 @ 40%;169 瓦 @ 60%;211 瓦 @ 80 % 和 255 瓦 @ 100% 利用率。考虑到功耗，必须按照所需的最小间距要求或安装间隙正确安装 2094-BC04-M03。对于 2094-BC04-M03，顶部和底部应留出 50.8 毫米或 2 英寸的空间，以允许自然冷却并为维护和故障排除提供足够的工作空间。此外，此 IAM 只能直立安装在最小深度为 272 毫米或 10.7 英寸的工业外壳中。为了降低电气噪声，该模块可以通过由镀锌或免漆钢制成的子面板粘合到面板上。

该伺服驱动模块提供 400 伏交流输入电源，并具有逆变器和转换器部分。此 IAM（集成轴模块）需要安装一个控制模块。该装置还能够应用 SERCOS 接口并连接到 EtherNet/IP 网络。Allen-Bradley 2094-BC04-M03 提供 360 至 480 伏交流电压、三相工作电源和 50 至 60 赫兹频率。其输入电流为 44 安培。还有一个额定值为 650 伏直流电（41.5 安培）的直流母线输入。该模块可以接收额定电压为 220 伏交流电（1 相，50 至 60 赫兹）的数字控制输入。在模块的输出侧，通常连接MP系列旋转电机。这些电机的速度在输出电压（可在 0 至 480 伏交流有效值之间变化）和 0 至 800 赫兹之间产生的频率上进行调节。该设备配备额定电压为 220 伏交流电的数字输出。在直流总线输出端，电压以高达 650 伏的直流电压产生。其额定功率为 28 kW 和 30 安培。2094-BC04-M03 具有安全功能，用于在有限条件下进行操作时保护生产区域。该产品已通过 c-UL-us 认证。

2094-BC04-M03-S 多轴伺服驱动器 集成轴模块

【英文介绍】

The 2094-BC04-M03 is a component module of the Kinetix 6000 multi-axis servo drive family. The product is specifically designed for integrated shaft modules (IAM) that provide 27.6 kW of continuous output power to the bus; The peak output power of the A Series drivers is 55.2 kW, and the peak output power of the B, C and D series drivers is 69 kW. The bus continuous output current of the module is 41.5A, the peak output current of the A series bus is 83.1A, and the peak output current of the B, C and D series is 103.8A. The module requires two (2) input voltages.

For the drive module, the AC input voltage range is 324-528V rms, three-phase, nominal range is 360-480VAC, while for the control circuit, the input voltage is required to be 95-264Vrms, single-phase, nominal range is 110-240V rms.

The Integrated shaft module (IAM) has a power consumption range of 94 watts @ 20%; 130 watts @ 40%; 169 watts @ 60%; 211 watts @ 80% and 255 watts @ 100% utilization. Taking into account power consumption, the 2094-BC04-M03 must be properly installed in accordance with the required minimum spacing requirements or installation gaps. For 2094-BC04-M03, 50.8 mm or 2 inches of space should be left at the top and bottom to allow for natural cooling and provide adequate working space for maintenance and troubleshooting. In addition, this IAM can only be installed upright in an industrial housing with a minimum depth of 272 mm or 10.7 inches. To reduce electrical noise, the module can be glued to the panel by means of sub-panels made of galvanized or paint-free steel.

The servo drive module provides 400 volts AC input power and has an inverter and converter section. This IAM (Integrated Shaft Module) requires a control module to be installed. The device is also capable of applying SERCOS interfaces and connecting to EtherNet/IP networks. The Allen-Bradley 2094-BC04-M03 offers 360 to 480 volts AC, a three-phase operating power supply, and 50 to 60 Hertz frequencies. Its input current is 44 amps. There is also a DC bus input rated at 650 volts DC (41.5 amps). The module can receive digital control inputs rated at 220 volts AC (1 phase, 50 to 60 Hz). On the output side of the module, the MP series rotary motor is usually connected. The speed of these motors is regulated at the output voltage (which can vary between 0 and 480 volts AC RMS) and the frequency generated between 0 and 800 Hz. The device is equipped with a digital output rated at 220 volts AC. At the DC bus output, the voltage is generated at a DC voltage of up to 650 volts. It is rated at 28 kW and 30 amps. The 2094-BC04-M03 has safety features to protect production areas when operating under limited conditions. The product is c-UL-us certified.
