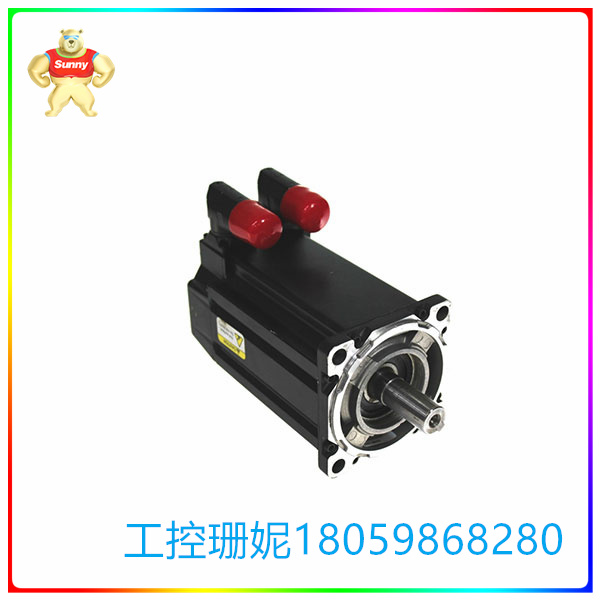

MPL-B430P-HJ74AA 伺服电机 低惯量系列

【产品详情】

Allen-Bradley MPL-B430P-HJ74AA 是 Kinetix MP 系列的伺服电机。该伺服电机专为非食品级应用而设计。具体来说，兼容的应用包括包装机、加工、物料搬运和分拣、电子装配和汽车装配线应用。与其他伺服电机相比，MPL-B430P-HJ74AA 和整个 MP 系列都安装了稀土磁铁，有助于提高和加快加速速度。此外，该伺服电机具有相对小巧紧凑的尺寸，非常适合空间有限的应用。

MPL-B430P-HJ74AA是一款400V电压等级的伺服电机。它有一个框架尺寸指示器四 （4），这意味着框架尺寸为 115 毫米，磁铁堆长度测量值为 76.2 毫米或 3.0 英寸，最大运行速度为 5000 rpm。如目录号所示，该伺服电机使用圆形 SpeedTec DIN 连接器，可实现快速、安全和可靠的连接。该连接器是直角、180° 可旋转连接器。它有一个内置的高分辨率增量编码器，每转 2000 行。该编码器用作反馈装置，有助于精确控制伺服电机的位置。它还配备了一个 24VDC 保持制动器，使用户和编程人员能够满足所需的制动特性。

该伺服电机的额定输出功率为 1.8 kW，连续失速扭矩为 4.18 N-m。该伺服电机的峰值失速扭矩为 19.8 N-m 或 175 lb-in。它的转子惯量为 0.00038 kg-m2，重量约为 5.5 kg 或 12 lb。 它由 Allen-Bradley 制造，输入规格为 400 伏交流电，输出规格为 2.2 千瓦和 5000 rpm。

该电机的框架长度为 115 毫米，磁体堆叠长度为 76.2 毫米，可提供标准控制选项、24 伏直流制动器和每转 2000 行的增量编码器。MPL-B430P-HJ74AA 伺服电机可通过圆形 SpeedTec DIN 连接器与多个兼容的驱动器系列连接。电机带有轴键，但没有轴封。在安装过程中，可以使用IEC公制法兰上的孔来安装伺服电机。Allen-Bradley 建议安装人员避免通过电机轴抬起和搬运 MPL-B430P-HJ74AA 驱动器，因为这可能会导致电机掉落和损坏。

正确安装可最大限度地延长 MPL-B430P-HJ74AA 伺服电机的使用寿命。制造商在安装过程中应遵循的建议包括在连接电机和驱动器的电缆上提供滴水环，安装防护罩以保护轴封和电机外壳免受污染，定期检查轴封，更换泄漏的密封件，定期检查电机是否损坏和磨损， 如果需要，还可以更换电机。MPL-B430P-HJ74AA伺服电机的轴向负载力规格如下：500转/分时为52千克，1000转/分时为39千克，2000转/分时为29千克，3500转/分时为22千克，5000转/分时为19千克。MPL-B430P-HJ74AA伺服电机的径向负载力规格如下：500转/分时为106千克，1000转/分时为84千克，2000转/分时为67千克，3500转/分时为55千克，5000转/分时为49千克。

MPL-B430P-HJ74AA 伺服电机 低惯量系列

【英文介绍】

Allen-Bradley MPL-B430P-HJ74AA is the Kinetix MP family of servo motors. The servo motor is designed for non-food grade applications. Specifically, compatible applications include packaging machines, processing, material handling and sorting, electronic assembly and automotive assembly line applications. Compared to other servo motors, the MPL-B430P-HJ74AA and the entire MP series are equipped with rare earth magnets that help increase and accelerate acceleration. In addition, the servo motor has a relatively small and compact size, making it ideal for applications where space is limited.

The MPL-B430P-HJ74AA is a 400V voltage class servo motor. It has a frame size indicator four (4), which means the frame size is 115 mm, the magnet stack length is measured at 76.2 mm or 3.0 inches, and the maximum operating speed is 5000 rpm. As indicated in the catalog number, the servo motor uses circular SpeedTec DIN connectors for fast, safe and reliable connections. The connector is a right Angle, 180° rotatable connector. It has a built-in high resolution incremental encoder with 2000 lines per revolution. The encoder is used as a feedback device to help precisely control the position of the servo motor. It is also equipped with a 24VDC holding brake that enables users and programmers to meet the desired braking characteristics.

The servo motor has a rated output power of 1.8kW and a continuous stall torque of 4.18N-m. The servo motor has a peak stall torque of 19.8 N-m or 175 lb-in. It has a rotor inertia of 0.00038 kg-m2 and a weight of about 5.5 kg or 12 lb. It was manufactured by Allen-Bradley and had an input specification of 400 volts AC and an output specification of 2.2 kilowatts and 5,000 rpm.

With a frame length of 115 mm and a magnet stack length of 76.2 mm, the motor offers standard control options, a 24-volt DC brake and an incremental encoder of 2,000 lines per revolution. The MPL-B430P-HJ74AA servo motor can be connected to multiple compatible driver families via a circular SpeedTec DIN connector. The motor has a shaft key but no shaft seal. During the installation process, the holes in the IEC metric flange can be used to mount the servo motor. Allen-Bradley advised installers to avoid lifting and handling the MPL-B430P-HJ74AA drive through the motor shaft, as this could cause the motor to fall and be damaged.

Proper installation maximizes the service life of the MPL-B430P-HJ74AA servo motor. Recommendations that manufacturers should follow during installation include providing drip rings on the cables connecting the motor to the drive, installing protective covers to protect the shaft seal and motor housing from contamination, checking the shaft seal regularly, replacing leaking seals, checking the motor regularly for damage and wear, and replacing the motor if needed. The axial load force specifications of the MPL-B430P-HJ74AA servo motor are as follows: 52 kg at 500 RPM, 39 kg at 1000 RPM, 29 kg at 2000 RPM, 22 kg at 3500 RPM and 19 kg at 5000 RPM. The radial load force specifications of the MPL-B430P-HJ74AA servo motor are as follows: 106 kg at 500 RPM, 84 kg at 1000 RPM, 67 kg at 2000 RPM, 55 kg at 3500 RPM and 49 kg at 5000 RPM.

MPL-B430P-HJ74AA 伺服电机 低惯量系列
