2094-BC02-M02-S 集成轴模块 具有安全转矩关闭功能

【产品详情】

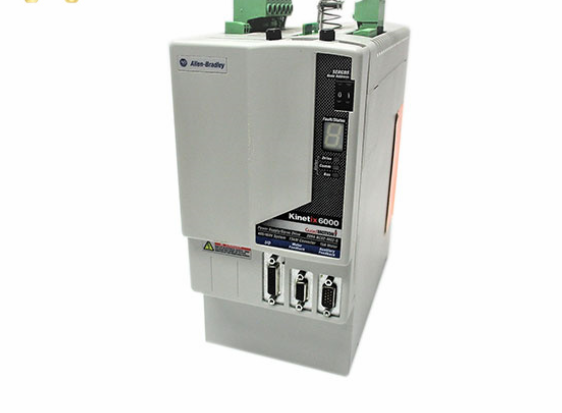

Allen-Bradley 2094-BC02-M02-S 是一款 Kinetix 6000 Drive 组件。该模块是 400VAC 级集成轴模块，总线连续输出电流为 22.6 A，总线峰值输出电流为 45.2 A（A 系列）和 56.4（B、C 和 D 系列驱动器）。它具有 97% 的效率和对称 200,000 A （rms） 的短路额定电流。该模块具有安全转矩关闭功能。

2094-BC02-M02-S 是一款 Allen-Bradley Kinetix 6000 集成轴模块 （IAM）。该模块的输入电压额定值为 324-528VAC，rms，3 相，标称值为 360-480V，交流输入频率为 47-63 Hz。 2094-BC02-M02-S 的主交流输入电流为 24.0 安培，标称和最大浪涌电流为 22.0 安培。

该模块的直流输入电压为 458-747VDC，直流输入电流为 22.6 安培，均采用公共总线跟随器。2094-BC02-M02-S 的控制电源交流输入电压为 95-264VAC，rms，1 相，标称值为 110-240V，rms。 2094-BC02-M02-S 具有总线过压保护和总线欠压保护。

总线过压额定值为 825VDC，而总线欠压为 275VDC。标称总线输出电压为 650VDC。

2094-BC02-M02-S 的内分流连续功率为 50 瓦，峰值功率为 5.6 kWatts。它有一个 115 欧姆的内分流电阻器，分流导通值为 805VDC，分流关断值为 755VDC。该模块能够为总线提供 15 kWatts 的连续输出功率，A 系列驱动器的峰值功率输出为 30 kWatts，B、C 和 D 系列驱动器的峰值功率输出为 37.5 kWatts。它的内部效率为97%，转换器电感为500？H和转换器电容为110？F。它的短路额定电流为 200,000 A （rms） 对称。

2094-BC02-M02-S 与 2094-BM02-S 轴模块兼容。

2094-BC02-M02-S 驱动器的 Bussmann 保险丝可以是 FNQ-R-10（10 安培）保险丝或 FNQ-R-7.5（7.5 安培）保险丝。它还可以使用 1492-SPM2D060 或 1492-SPM1D150 Allen-Bradley 断路器，但这些设备未通过 UL 认证。2094-BC02-M02-S 具有不同的功率耗散水平（以瓦特为单位），具体取决于其额定功率输出的额定功率百分比。额定功率输出20%时的功耗水平为36W，40%时的功耗为44W，60%时的功耗为54W，80%时的功耗为64W，额定功率输出的100%时为75W。它具有多个 Kinetix 6000 峰值电流额定值。2094-BC02-M02-S 的标准峰值逆变器额定电流为 150%，峰值增强电流额定值为 250%。A 系列 2094-BC02-M02-S 驱动器的峰值转换器额定电流为 200%，B 系列和 C 系列 2094-BC02-M02-S 驱动器的峰值转换器额定电流为 250%。

2094-BC02-M02-S 集成轴模块 具有安全转矩关闭功能

【英文介绍】

Allen-Bradley 2094-BC02-M02-S is a Kinetix 6000 Drive component. The module is A 400VAC class integrated shaft module with continuous bus output current of 22.6A and peak bus output current of 45.2A (Series A) and 56.4 (Series B, C and D drivers). It has 97% efficiency and A symmetrical 200,000 A (rms) short-circuit current rating. The module has a safe torque shutdown function.

The 2094-BC02-M02-S is an Allen-Bradley Kinetix 6000 Integrated Axis module (IAM). The module has input voltage ratings of 324-528VAC, rms, 3-phase, nominal values of 360-480V, and AC input frequency of 47-63 Hz. The 2094-BC02-M02-S has a main AC input current of 24.0 amps and a nominal and maximum surge current of 22.0 amps.

The DC input voltage of the module is 458-747VDC, and the DC input current is 22.6 amps, both of which use a common bus follower. The 2094-BC02-M02-S control power AC input voltage is 95-264VAC, rms, 1 phase, nominal value is 110-240V, rms. The 2094-BC02-M02-S has bus overvoltage protection and bus undervoltage protection.

The bus overvoltage rating is 825VDC, while the bus undervoltage is 275VDC. The nominal bus output voltage is 650VDC.

The 2094-BC02-M02-S has an internal shunt continuous power of 50 watts and a peak power of 5.6 kWatts. It has a 115 ohm internal shunt resistor with a shunt on value of 805VDC and a shunt off value of 755VDC. The module is capable of providing A continuous power output of 15 kWatts to the bus, with a peak power output of 30 kWatts for the A-series drivers and 37.5 kWatts for the B, C and D series drivers. It has an internal efficiency of 97% and a converter inductance of 500? H and converter capacitance 110? F. It has A short circuit current rating of 200,000 A (rms) symmetric.

The 2094-BC02-M02-S is compatible with the 2094-BM02-S axis module.

The Bussmann fuse for the 2094-BC02-M02-S drive can be a FNQ-R-10 (10 amp) fuse or a FNQ-R-7.5 (7.5 amp) fuse. It can also use 1492-SPM2D060 or 1492-SPM1D150 Allen-Bradley circuit breakers, but these devices are not UL certified. The 2094-BC02-M02-S has different power dissipation levels (in watts), depending on the rated power percentage of its rated power output. The power level at 20% of the rated power output is 36W, the power consumption at 40% is 44W, the power consumption at 60% is 54W, the power consumption at 80% is 64W, and the power consumption at 100% of the rated power output is 75W. It has multiple Kinetix 6000 peak current ratings. The 2094-BC02-M02-S has a standard peak inverter rated at 150% and a peak enhanced current rated at 250%. The peak converter is rated at 200% for the A Series 2094-BC02-M02-S drivers and 250% for the B Series and C Series 2094-BC02-M02-S drivers.
