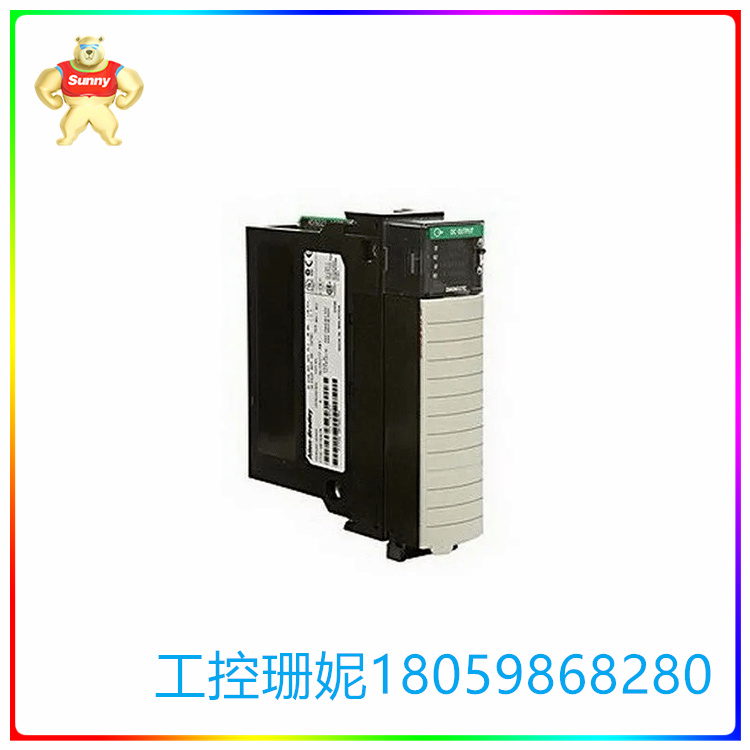

1756-M3 扩展内存模块 开放式机箱

【产品详情】

1756-M3 模块是由 Allen-Bradley/Rockwell Automation 设计和生产的扩展内存模块。从产品代码本身可以看出，该模块是 Bulletin 1756 产品线的一部分，用于 ControlLogix 系统。ControlLogix 环境包括处理器、放大器、控制器、数字/模拟 I/O 模块、通信模块以及内存模块。1756 ControlLogix 产品系列提供电子键控、增强的安全功能、点级输出故障状态、优化的通信、实时通道采样以及隔离式和非隔离式模块类型。1756-M3 内存模块与内存容量为 750 KB 至 32 MB 的控制器一起使用。这些控制器的背板电流在 5.1 伏直流电下为 1.20 至 1.25 安培，在 24 伏直流电下为 0.014 安培至 14 毫安。

1756-M3 内存模块适用于以下工作条件：0 至 60 摄氏度（32 至 140 华氏度）的工作温度范围和 -40 至 85 摄氏度（-40 至 185 华氏度）的存储温度范围。在非冷凝条件下，相对湿度水平应在 5% 到 95% 之间。该装置的 IEC 温度代码为 T4A/T4，该装置属于 A 类/1 组发射组。1756-M3 内存模块在 10 至 500 赫兹时可承受 2 G 的振动和 30 G 的冲击。该装置重约 0.22 千克（7.7 盎司），与此类其他组件一样安装在机箱中。该模块包括 6 kV 的间接接触放电 ESD 抗扰度和 8 kV 的空气放电抗扰度，符合 IEC 61000-4-2 标准。

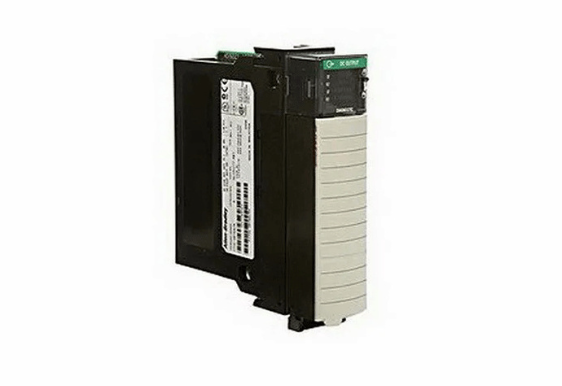

1756-M3 扩展内存模块 开放式机箱

【英文介绍】

The 1756-M3 module is an extended memory module designed and produced by Allen-Bradley/Rockwell Automation. As can be seen from the product code itself, the module is part of the Bulletin 1756 product line for the ControlLogix system. The ControlLogix environment includes processors, amplifiers, controllers, digital/analog I/O modules, communication modules, and memory modules. The 1756 ControlLogix product family offers electronic keying, enhanced safety features, point-level output of fault states, optimized communication, real-time channel sampling, and isolated and non-isolated module types. The 1756-M3 memory module is used with controllers with memory capacities ranging from 750 KB to 32 MB. The backplane current of these controllers ranges from 1.20 to 1.25 amps at 5.1 volts DC and from 0.014 amps to 14 mA at 24 volts DC.

The 1756-M3 memory module is suitable for the following operating conditions: operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). In non-condensing conditions, the relative humidity level should be between 5% and 95%. The IEC temperature code for this device is T4A/T4 and the device belongs to the Class A/ Group 1 emission group. The 1756-M3 memory module can withstand 2 G of vibration and 30 G of shock at 10 to 500 Hz. The device weighs about 0.22 kg (7.7 oz) and is mounted in the case like other components of this type. The module includes 6 kV indirect contact discharge ESD immunity and 8 kV air discharge immunity, according to IEC 61000-4-2 standards.

1756-M3 扩展内存模块 开放式机箱
