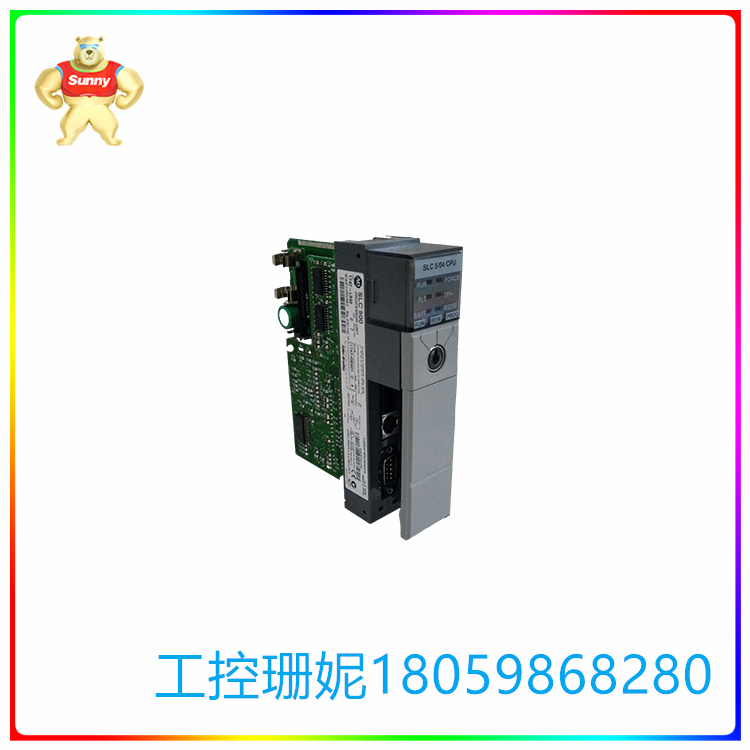

1756-M03SE 接口模块 使用单个数字光纤链路
【产品详情】
Allen-Bradley 1756-M03SE 是一款 SERCOS 接口模块,用于将控制器连接到 SERCOS 接口驱动器。它有 3 个轴可用,与 Kinetix 2000 伺服驱动器兼容。它使用单个数字光纤链路,每个轴可消除多达 18 根数字线。它还允许您使用高速、实时串行通信来控制数字驱动器。1756-M03SE 模块提供的驱动控制模式包括位置、速度和扭矩。
在安装此模块之前,请务必首先安装并接地将要连接的 ControlLogix 机箱以及 ControlLogix 电源,并具有安装所需的光纤电缆电线。这是因为电线将用于连接驱动器和模块。与此模块兼容的 ControlLogix 机箱包括 1756-A4、1756-A7、1756-A10、1756-A13 和 1756-A17。该模块可以安装在机箱的任何可用插槽中,并具有开放式外壳。
该模块的 SERCOS 接口数据速率为 4 Mbps 或 8 Mbps,最多可处理 3 个 SERCOS 接口驱动器。在 4Mbps 时,SERCOS 周期时间为 0.5 ms(最多 2 个驱动器,但仅适用于 Kinetix 6000 驱动器),1 ms(最多 4 个驱动器)和 2 ms(最多 8 个驱动器)。在 8 Mbps 时,SERCOS 周期时间为0.5 ms(最多 4 个驱动器(但也仅适用于 Kinetix 6000 驱动器),1 ms(最多 8 个驱动器)和 2 ms(最多 16 个驱动器)。
它在 24V DC 时的电流消耗为 2.5 mA,在 5.1V DC 时的电流消耗为 760 mA,功耗为 5 W。该模块的工作温度范围为 0 至 60 摄氏度,存储范围为 -40 至 85 摄氏度。它还具有 5% 至 95% 的非冷凝相对湿度。
它还具有光隔离的吸电流输入类型。其标称电压为 24V DC。导通状态最小电压为17V DC,最大导通状态为26.4V DC,最大关断状态电压为8.5V DC。
Allen-Bradley 1756-M03SE 是一款 ControlLogix 串行实时通信系统 (SERCOS) 模块,用于连接到 Allen-Bradley Kinetix 变频器,例如 2093 Kinetix 2000 多轴伺服驱动器、2094 Kinetix 6000 多轴伺服驱动器、2099 Kinetix 7000 大功率伺服驱动器和 2098 Ultra3000 SERCOS 伺服驱动器。
1756-M03SE 接口模块 使用单个数字光纤链路
【英文介绍】
The Allen-Bradley 1756-M03SE is a SERCOS interface module for connecting controllers to SERCOS interface drivers. It is available with 3 axes and is compatible with Kinetix 2000 servo drives. It uses a single digital fiber link that eliminates up to 18 digital wires per axis. It also allows you to control digital drives using high-speed, real-time serial communication. The 1756-M03SE module offers drive control modes including position, speed and torque.
Before installing this module, be sure to first install and ground the ControlLogix chassis to be connected, as well as the ControlLogix power supply, and have the fiber optic cables and wires required for installation. This is because the wires will be used to connect the driver to the module. ControlLogix chassis compatible with this module include 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. The module can be installed in any available slot in the case and has an open housing.
The module has a SERCOS interface data rate of 4 Mbps or 8 Mbps and can handle up to 3 SERCOS interface drives. At 4Mbps, SERCOS cycle times are 0.5 ms (up to 2 drives, but only for Kinetix 6000 drives), 1 ms (up to 4 drives) and 2 ms (up to 8 drives). At 8 Mbps, SERCOS cycle times are 0.5 ms (up to 4 drives (but also only for Kinetix 6000 drives), 1 ms (up to 8 drives) and 2 ms (up to 16 drives).
It has a current consumption of 2.5 mA at 24V DC and 760 mA at 5.1V DC with a power consumption of 5 W. The module has an operating temperature range of 0 to 60 degrees Celsius and a storage range of -40 to 85 degrees Celsius. It also has a non-condensing relative humidity of 5% to 95%.
It also has an optically isolated current absorption input type. Its nominal voltage is 24V DC. The minimum on-state voltage is 17V DC, the maximum on-state voltage is 26.4V DC, and the maximum off state voltage is 8.5V DC.
Allen-Bradley 1756-M03SE is a ControlLogix Serial Real-time Communication System (SERCOS) module for connection to Allen-Bradley Kinetix inverter, Examples include 2093 Kinetix 2000 multi-axis servo drive, 2094 Kinetix 6000 multi-axis servo drive, 2099 Kinetix 7000 High power servo drive and 2098 Ultra3000 SERCOS servo drive.
1756-M03SE 接口模块 使用单个数字光纤链路
