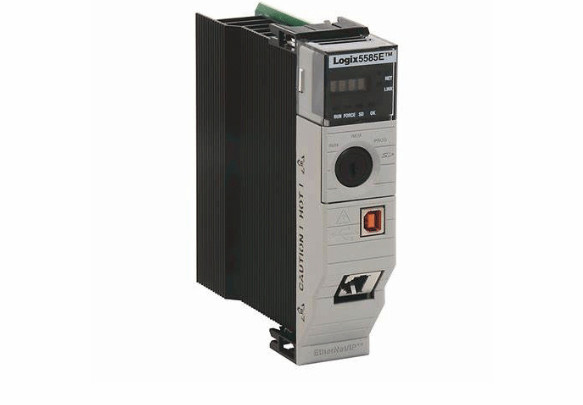

Allen-Bradley 1756-L85E-NSE 控制器 具有多种编程语言

【产品详情】

Allen-Bradley 1756-L85E-NSE 控制器是作为 ControlLogix 5580 控制器系列的一部分制造的 ControlLogix 控制器。它的用户内存容量为 3 MB，在 5.1 伏直流电下电流消耗为 1.2 安培，在 1.2 伏直流电下电流消耗为 5.0 毫安。该控制器具有 2 GB 的可选非易失性存储器容量，散热额定值为每小时 21.2 BTU，额定功耗为 6.2 W。1756-L85E-NSE 控制器的工作温度范围为 0 至 60 摄氏度（C 系列标准机箱）和 0 至 50 摄氏度（B 系列标准机箱）。该装置的其他规格包括 2 至 10 赫兹时的 500g 振动，以及 5% 至 95% 的可容忍相对湿度范围，无冷凝。它可以承受 30g 的工作冲击和非工作冲击。

Allen-Bradley 的 1756-L85E-NSE ControlLogix 控制器具有多种编程语言，包括结构化文本、继电器梯形图逻辑、顺序功能图和功能块图编程语言。它还具有内置通信端口，包括 1 个 USB 端口和一个嵌入式以太网端口。该设备的其他通信选项包括 Ethernet/IP、DeviceNet、SynchLink、ControlNet、Data Highway Plus、第三方过程和设备网络以及远程 I/O 通信选项。通常，这些控制器最多可以运行 32 个控制器任务，每个任务 1000 个程序，并且没有限制地运行本地 I/O 事件触发器。ControlLogix 5580 控制器旨在提供可扩展的控制解决方案，并解决系统中的许多输入和输出点。1756-L85E-NSE 控制器可以放置在 ControlLogix IO 机箱的任何插槽中，用户仍然可以在同一机箱中安装其他控制器。

Allen-Bradley 1756-L85E-NSE 控制器 具有多种编程语言

【英文介绍】

The Allen-Bradley 1756-L85E-NSE controller is a ControlLogix controller manufactured as part of the ControlLogix 5580 controller family. It has a user memory capacity of 3 MB and current consumption of 1.2 amps at 5.1 volts DC and 5.0 mA at 1.2 volts DC. The controller has 2 GB of optional non-volatile memory capacity, a heat dissipation rating of 21.2 BTU per hour, and a power consumption rating of 6.2 W. The 1756-L85E-NSE controller operates in a temperature range of 0 to 60 degrees Celsius (Series C standard case) and 0 to 50 degrees Celsius (Series B standard case). Other specifications for the unit include 500g vibration at 2 to 10 Hz, and a tolerable relative humidity range of 5 to 95 percent with no condensation. It can withstand 30g working shock and non-working shock.

Allen-Bradley's 1756-L85E-NSE ControlLogix controller is available in several programming languages, including structured text, relay ladder logic, sequential function diagram, and function block diagram programming languages. It also has built-in communication ports, including 1 USB port and an embedded Ethernet port. Other communication options for the device include Ethernet/IP, DeviceNet, SynchLink, ControlNet, Data Highway Plus, third-party process and device networking, and remote I/O communication options. Typically, these controllers can run up to 32 controller tasks, 1000 programs per task, and run local I/O event triggers without limit. The ControlLogix 5580 controller is designed to provide a scalable control solution and address many input and output points in the system. The 1756-L85E-NSE controller can be placed in any slot in the ControlLogix IO chassis, and users can still install other controllers in the same chassis.

Allen-Bradley 1756-L85E-NSE 控制器 具有多种编程语言
