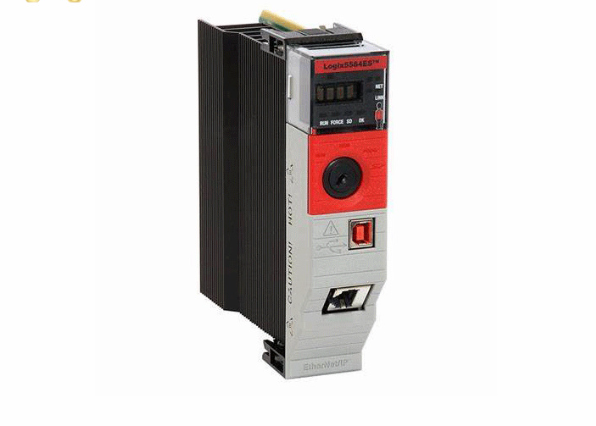

1756-L83ES 控制器 具有嵌入式功能

【产品详情】

目录号为 1756-L83ES 的 GuardLogix 5580 控制器由 Allen-Bradley/Rockwell Automation 制造和设计，是 Bulletin 1756 系列的一部分。Allen-Bradley 提供 ControlLogix 和 GuardLogix 控制器，这些控制器提供具有嵌入式功能和广泛特性的可扩展解决方案。GuardLogix 控制器继承了旧版 ControlLogix 单元的所有功能，并且能够执行在线编辑、强制和类似活动。1756-L83ES 控制器按照 CE、RCM、KC、CSA 和 c-UL-us 标准等标准制造。允许的工作温度范围为 0 至 60 摄氏度或 32 至 140 华氏度，而存储温度范围为 -40 至 85 摄氏度（-40 至 185 华氏度）。除此之外，该装置对工业环境中常见的冲击、振动和其他条件具有适度的耐受性。

1756-L83ES 控制器是基于机箱的组件，可以安装到任何机箱插槽中。该控制器的隔离电压为 50 伏（连续），并在 1000 伏交流电下进行了为期 60 秒的型式测试。该装置在 1.2 伏直流电下的电流消耗为 5 毫安，在 5.1 伏直流电下的电流消耗为 1.2 安培。1756-L83ES 控制器每小时消耗 21.2 BTU 的功率水平，重量为 0.39 千克或 0.86 磅。该控制器变体具有 10 MB 的用户存储器和 5 MB 的安全存储器。1756-L83ES 控制器具有 31 项标准任务和 1 项安全任务。此外，控制器支持每个任务 1000 个程序，并通过内置 USB 端口进行连接。USB 端口支持 USB 2.0 版，全速为每秒 12 兆比特。除此之外，1756-L83ES 控制器还具有嵌入式以太网端口，支持多达 250 个 EtherNet/IP 节点。

1756-L83ES 控制器 具有嵌入式功能

【英文介绍】

The GuardLogix 5580 controller, catalog number 1756-L83ES, was manufactured and designed by Allen-Bradley/Rockwell Automation as part of the Bulletin 1756 series. Allen-Bradley offers ControlLogix and GuardLogix controllers that provide scalable solutions with embedded capabilities and a wide range of features. The GuardLogix controller inherits all the functionality of the older ControlLogix unit and is able to perform online editing, coercion, and similar activities. The 1756-L83ES controller is manufactured according to CE, RCM, KC, CSA and c-UL-us standards. The allowable operating temperature range is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit, while the storage temperature range is -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). In addition, the device is moderately resistant to shock, vibration and other conditions commonly found in industrial environments.

The 1756-L83ES controller is a chassis based component that can be installed into any chassis slot. The controller has an isolation voltage of 50 volts (continuous) and was type-tested for 60 seconds at 1000 volts AC. The device has a current consumption of 5 mA at 1.2 volts DC and 1.2 amps at 5.1 volts DC. The 1756-L83ES controller consumes a power level of 21.2 BTU per hour and weighs 0.39 kg or 0.86 LBS. This controller variant has 10 MB of user memory and 5 MB of secure memory. The 1756-L83ES controller has 31 standard tasks and 1 safety task. In addition, the controller supports 1000 programs per task and is connected via a built-in USB port. The USB port supports USB version 2.0 at full speed of 12 megabits per second. In addition, the 1756-L83ES controller has an embedded EtherNet port that supports up to 250 EtherNet/IP nodes.

1756-L83ES 控制器 具有嵌入式功能
