1756-L55M24 处理器模块 紧凑的封装中提供处理

【产品详情】

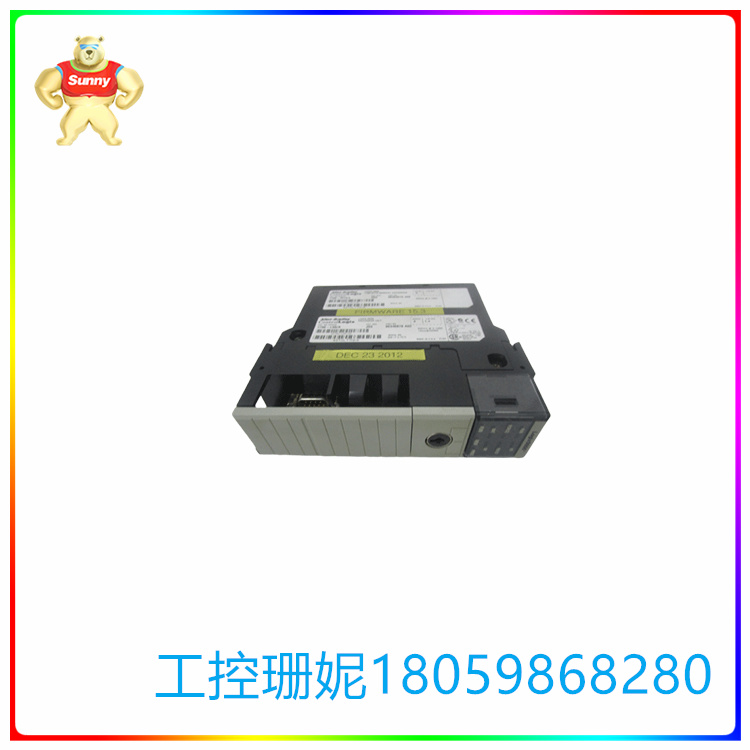

Allen-Bradley 1756-L55M24 是用于 ControlLogix 平台的处理器模块。ControlLogix 系统在紧凑的封装中提供处理、安全、运动、离散和驱动控制以及增强的 I/O。模块化架构可实现高效的设计和修改。ControlLogix 系统由一个机箱组成，该机箱包含处理器模块（也称为控制器）和 I/O 模块。有许多通信模块可用，这些模块可以安装在系统机箱中，以便与其他网络进行通信。ControlLogix 系统非常灵活：多个控制器可以安装在单个机箱中，I/O 可以安装在分布式位置并通过 I/O 链路连接。

1756-L55M24 可以安装在系统机箱的任何插槽中。此外，可以在机箱电源打开时安装或拆卸控制器。但是，在危险场所插入或移除模块是危险的，可能会导致爆炸。因此，在危险场所，在安装或拆卸控制器之前，应先断开系统电源。1756-L55M24 控制器具有 3.5 MB 的非易失性用户存储器，因此无需电池即可使用。它有一个集成的 RS-232 串行端口用于通信。可用的可选通信模块包括以太网、DeviceNet、ControlNet、DH+、SynchLink 和远程 I/O。

1756-L55M24 支持以下编程语言：继电器梯形图、SFC、功能块和结构化文本。控制器支持的编程电缆是 1756-CP3 和 1747-CP3 串行电缆。1756-L55M24 的背板电流消耗在 5.1 V DC 时为 1.25 安培，在 24 V DC 时为 0.014 安培。功耗为 5.7 W，而散热为每小时 19.4 BTU。控制器重 0.36 千克。1756-L55M24 专为环境温度范围在 0 至 60 摄氏度之间且相对湿度为 5 至 95% 的环境而设计。

1756-L55M24 处理器模块 紧凑的封装中提供处理

【英文介绍】

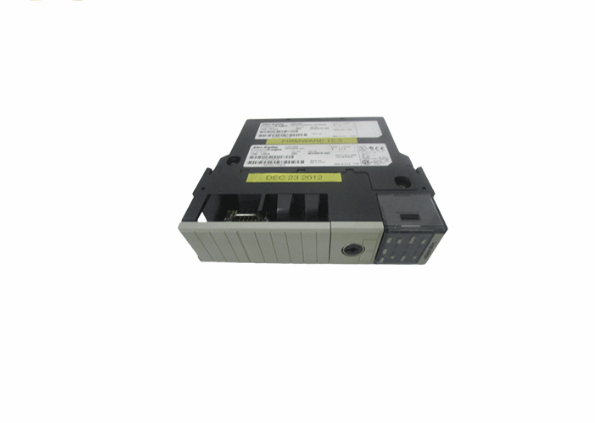

Allen-Bradley 1756-L55M24 is a processor module for the ControlLogix platform. The ControlLogix system provides processing, safety, motion, discrete and drive control, and enhanced I/O in a compact package. Modular architecture enables efficient design and modification. The ControlLogix system consists of a chassis that contains the processor module (also known as the controller) and the I/O module. There are a number of communication modules available, which can be installed in the system chassis to communicate with other networks. The ControlLogix system is very flexible: multiple controllers can be installed in a single chassis, and I/ OS can be installed in distributed locations and connected via I/O links.

The 1756-L55M24 can be installed in any slot in the system chassis. In addition, the controller can be installed or removed while the chassis is powered on. However, inserting or removing a module in a dangerous place is dangerous and may result in an explosion. Therefore, in dangerous places, the system power should be disconnected before installing or removing the controller. The 1756-L55M24 controller has 3.5 MB of non-volatile user memory, so it can be used without a battery. It has an integrated RS-232 serial port for communication. Optional communication modules available include Ethernet, DeviceNet, ControlNet, DH+, SynchLink, and Remote I/O.

The 1756-L55M24 supports the following programming languages: relay ladder, SFC, function blocks, and structured text. The programming cables supported by the controller are 1756-CP3 and 1747-CP3 serial cables. The backplane current consumption of the 1756-L55M24 is 1.25 amps at 5.1 V DC and 0.014 amps at 24 V DC. Power consumption is 5.7 W, while heat dissipation is 19.4 BTU per hour. The controller weighs 0.36 kg. The 1756-L55M24 is designed for environments with ambient temperatures ranging from 0 to 60 degrees Celsius and relative humidity ranging from 5 to 95%.

1756-L55M24 处理器模块 紧凑的封装中提供处理
