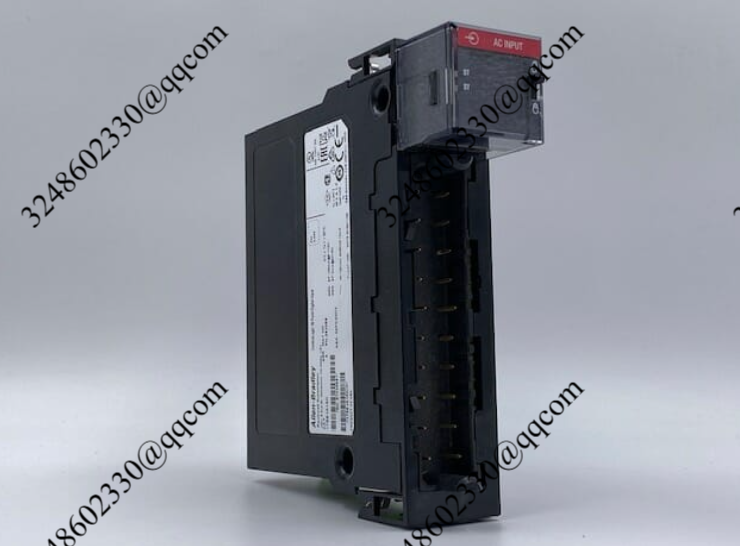

1756-IA16 可编程自动化控制器 用于连接分立信号设备

【产品详情】

Allen-Bradley 1756-IA16 是 ControlLogix 可编程自动化控制器 （PAC） 平台的十六 （16） 通道交流输入模块。该模块用于连接分立信号设备，例如开关、辅助触点和类似操作设备，额定电压为 120VAC，额定电压范围为 74-132VAC，频率为 47-63 Hz.1756-IA32

有两 （2） 个输入组，每个输入组有八 （8） 个通道。它配有单独的通道状态 LED，可激活以提供有关每个通道状态的反馈。每个输入通道的硬件延迟时间最大为 10 ms + OFF 至 ON 信号转换的滤波时间，ON 至 OFF 信号转换的最大 8 ms + 滤波时间。用户可选择的OFF至ON转换滤波时间为1 ms或2 ms，ON至OFF转换的滤波时间为9 ms或18 ms。该模块的循环更新时间为 200 μs-750 ms，

该模块从背板汲取的电流为 100 mA @ 5.1 VDC 和 2 mA @ 24VDC。它消耗的总背板功率为 0.58 W，最大功耗为 5.8 W @ 60 °C （140 °F），散热为 18.41 BTU/hr。 1756-IA32 的最大关断状态电压为 20VAC，最大关断状态电流为 2.5 mA。

同样，最小导通状态电流额定值为 5 mA @ 74V AC，最大导通状态电流为 13 mA @ 132V AC。它能够承受峰值 250 mA 的最大浪涌电流。

它有十六 （16） 个输入通道，分为两 （2） 组，每组八 （8） 个点。1756-IA16 模块的工作电压范围为 74 至 132 伏交流电，频率为 47 至 63 赫兹，而电压类别和输入频率分别为 120 伏交流电和 50/60 赫兹。该模块的输入延迟时间为 10 毫秒，用于 OFF 到 ON 转换配置的滤波器时间（用户可在 1 或 2 毫秒时选择）。对于ON到OFF的转换，硬件延迟最大为8毫秒加上滤波时间（用户可选择9或18毫秒）。在 5.1 伏直流电下，电流消耗为 100 毫安，在 24 伏直流电下有 2 毫安的电流消耗。背板总功率为 0.58 瓦，在 60 摄氏度和 18.41 BTU/小时热能下耗散 5.8 瓦的功率。最大关断状态电压为 20 伏，电流为 2.5 毫安。另一方面，1756-IA16 的导通电流范围从 5 伏交流电下的最小 74 毫安到最大 13 伏交流电下的 132 毫安。记录的最大浪涌电流为 250 毫安峰值，在不激活的情况下在 22 毫秒内衰减至低于 37%。

1756-IA16 可编程自动化控制器 用于连接分立信号设备

【英文介绍】

Allen-Bradley 1756-IA16 is a sixteen (16) channel AC input module for the ControlLogix Programmable Automation Controller (PAC) platform. The module is used to connect discrete signal devices such as switches, auxiliary contacts and similar operating devices with a rated voltage of 120VAC, rated voltage range of 74-132VAC and frequency of 47-63 Hz.1756-IA32

There are two (2) input groups, each of which has eight (8) channels. It comes with a separate channel status LED that can be activated to provide feedback on the status of each channel. The hardware delay time for each input channel is up to 10 ms + filtering time for the OFF to ON signal conversion and up to 8 ms + filtering time for the ON to OFF signal conversion. The user-selectable filtering time for the OFF to ON conversion is 1 ms or 2 ms, and the filtering time for the ON to OFF conversion is 9 ms or 18 ms. The module's cycle update time is 200 μs-750 ms,

The current drawn by the module from the backplane is 100 mA@5.1VDC and 2 mA@24VDC. It consumes a total backplane power of 0.58 W, a maximum power consumption of 5.8 W @ 60 °C (140 °F), and a heat dissipation of 18.41 BTU/hr. The 1756-IA32 has a maximum off state voltage of 20VAC and a maximum off state current of 2.5mA.

Similarly, the minimum on-state current rating is 5 mA@74V AC and the maximum on-state current is 13 mA@132V AC. It can withstand a maximum surge current up to 250 mA.

It has sixteen (16) input channels divided into two (2) groups of eight (8) points each. The 1756-IA16 module operates in a voltage range of 74 to 132 VAC and a frequency of 47 to 63 Hz, while the voltage class and input frequency are 120 VAC and 50/60 Hz, respectively. The module has an input delay time of 10 ms for the filter time of the OFF to ON conversion configuration (user can choose at 1 or 2 ms). For ON-OFF conversion, the hardware delay is up to 8 ms plus filtering time (user can choose 9 or 18 ms). At 5.1 volts DC, the current consumption is 100 mA, and at 24 volts DC there is 2 mA. The backplane has a total power of 0.58 watts and dissipates 5.8 watts of power at 60 degrees Celsius and 18.41 BTU/ hour thermal energy. The maximum off state voltage is 20 volts and the current is 2.5 MA. The 1756-IA16, on the other hand, has conduction currents ranging from a minimum of 74 mah at 5 VAC to a maximum of 132 mah at 13 VAC. The largest surge current recorded was a peak of 250 mA, which decayed to less than 37% in 22 milliseconds without activation.

1756-IA16 可编程自动化控制器 用于连接分立信号设备
