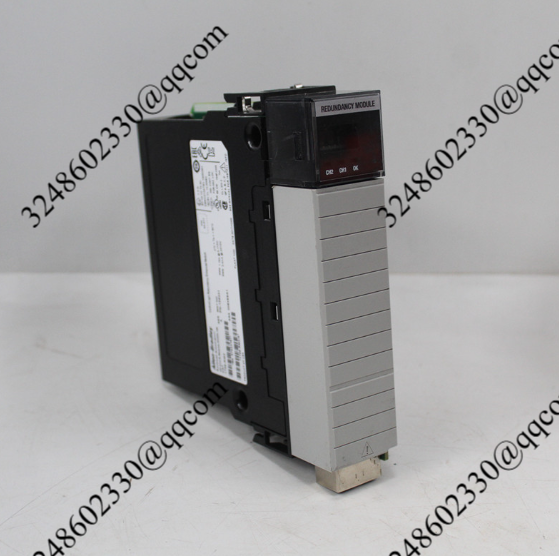

Allen-Bradley 1756-HYDO2 用于液压缸的精确控制和定位

【产品详情】

Allen-Bradley 1756-HYD02 是一个连接到 1756 ControlLogix 控制器的模块，通常用于液压缸的精确控制和定位。它可以连接到线性位移传感器（LDT）进行反馈，也可以连接到比例阀或伺服阀以控制液压轴，一个模块最多可以控制两个轴。LDT 将为阀门提供模拟命令参考。这是为了确保执行器或气缸遵循轮廓。一旦收到反馈，1756-HYD02 模块将借助与其相连的液压系统关闭高速位置环。然后，它将产生一个 +/-10V 模拟输出速度命令。伺服回路类型为比例、积分和差分 （PID），具有前馈和定向缩放功能。1756-HYD02 具有 32 位浮点的增益分辨率和 230,000 LDT 计数的绝对位置范围。它还具有 500 赫兹至 4 千赫兹的可选速率。5.1 伏直流电的电流消耗为 700 毫安，24 伏直流电为 2.5 毫安。散热为 18.77 BTU/小时，隔离电压为 30 伏连续，用户到系统。1756-HYD02 可以安装在 ControlLogix 机箱的任何插槽中。要安装，您只需将其滑入可用插槽中，直到它卡入到位。但是，建议对可拆卸接线盒 （RTB） 进行键控，以防止意外将错误的 RTB 连接到模块。确保对每个插槽使用唯一的键控模式。对于此 1756-HYD02 模块，您可以使用笼式夹具或弹簧夹具。

1756-HYD02 是 Allen-Bradley 和 Rockwell Automation 开发的 ControlLogix 液压伺服模块。这种硬件通常用于液压缸的精确定位和控制。它可以连接到线性位移传感器 （LDT） 进行反馈，连接到比例阀或伺服阀以控制液压轴，并连接到液压系统以关闭高速位置环。该硬件的规格包括最多 2 轴（用于可用轴数）、比例、积分和差分 （PID），具有前馈和定向缩放（适用于伺服环路类型），以及用于增益分辨率的 32 位浮点。该硬件还具有 230,000 LDT 计数的绝对位置范围和 500 赫兹至 4 kHz（可选）的伺服环路速率。

此 1756-HYD02 的模块位置是 1756 ControlLogix 机箱，它使用电子模块键控，最大功耗为 5.5 瓦。该硬件的其他规格包括每小时 18.77 英热单位 （BTU） 的散热、700 毫安时 5.1 伏直流电和 2.5 毫安时 24 伏直流电的背板电流，以及 30 伏连续电压的隔离电压。环境规格包括工作温度保持在 0 到 60 摄氏度（32 到 140 华氏度）之间，存储温度在 -40 到 85 摄氏度（-40 到 185 华氏度）之间，相对湿度在 5% 到 95% 之间（非冷凝）。振动符合 IEC 60068-2-6 标准，在 10-500 赫兹时的额定值为 2g，冲击符合 IEC 60068-2-27 标准，为 30g（工作）和 50g（非工作），排放符合 CISPR 11：第 1 组，A 类。

Allen-Bradley 1756-HYDO2 用于液压缸的精确控制和定位

【英文介绍】

The Allen-Bradley 1756-HYD02 is a module that connects to the 1756 ControlLogix controller and is commonly used for precise control and positioning of hydraulic cylinders. It can be connected to a linear displacement sensor (LDT) for feedback, or to a proportional or servo valve to control the hydraulic shaft, up to two axes can be controlled by one module. The LDT will provide an analog command reference for the valve. This is to ensure that the actuator or cylinder follows the profile. Once feedback is received, the 1756-HYD02 module closes the high speed position loop with the help of a hydraulic system connected to it. It will then produce a +/-10V analog output speed command. The servo loop type is proportional, Integral, and Differential (PID) with feedforward and directional scaling functions. The 1756-HYD02 has a gain resolution of 32-bit floating point and an absolute position range of 230,000 LDT counts. It also has optional speeds from 500 Hz to 4 KHZ. Current consumption is 700 mA for 5.1 volts DC and 2.5 ma for 24 volts DC. The heat dissipation is 18.77 BTU/ hour and the isolation voltage is 30 volts continuous from the user to the system. The 1756-HYD02 can be installed in any slot in the ControlLogix chassis. To install, you simply slide it into the available slot until it snaps into place. However, keying of the removable junction box (RTB) is recommended to prevent accidental connection of the wrong RTB to the module. Make sure to use a unique keying mode for each slot. For this 1756-HYD02 module, you can use a cage clamp or a spring clamp.

The 1756-HYD02 is a ControlLogix hydraulic servo module developed by Allen-Bradley and Rockwell Automation. This hardware is often used for precise positioning and control of hydraulic cylinders. It can be connected to a linear displacement sensor (LDT) for feedback, to a proportional or servo valve to control a hydraulic shaft, and to a hydraulic system to close a high-speed position ring. The hardware's specifications include up to 2 axes (for the number of axes available), proportional, Integral, and differential (PID), with feedforward and directional scaling (for servo loop types), and 32-bit floating point for gain resolution. The hardware also has an absolute position range of 230,000 LDT counts and a servo loop rate of 500 Hz to 4 kHz (optional).

The module location of this 1756-HYD02 is the 1756 ControlLogix chassis, which uses electronic module keying and has a maximum power consumption of 5.5 watts. Other specifications of the hardware include heat dissipation of 18.77 British thermal units (BTU) per hour, backplane current of 5.1 volts DC at 700 mah and 24 volts DC at 2.5 mah, and isolation voltage at 30 volts continuous voltage. Environmental specifications include maintaining operating temperatures between 0 and 60 degrees Celsius (32 to 140 degrees Fahrenheit), storage temperatures between -40 and 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and relative humidity between 5% and 95% (non-condensing). Vibrations comply with IEC 60068-2-6 with A rating of 2g at 10-500 Hz, shocks comply with IEC 60068-2-27 with 30g (working) and 50g (non-working), and emissions comply with CISPR 11: Group 1, Class A.

Allen-Bradley 1756-HYDO2 用于液压缸的精确控制和定位
