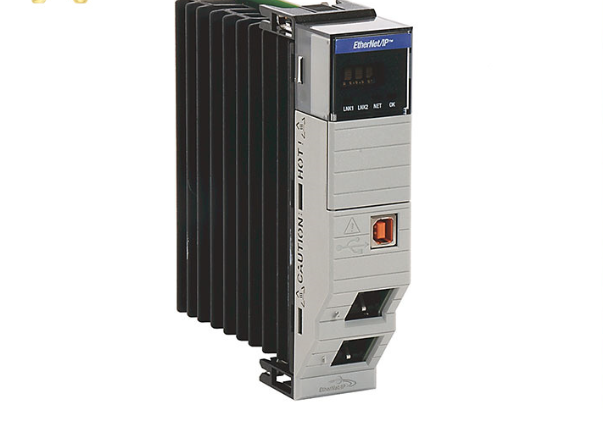

1756-EN4TR 控制器模块 以太网/IP 网络

【产品详情】

1756-EN4TR 模块是由 Allen-Bradley/Rockwell Automation 制造的 ControlLogix 系列控制器模块。该控制器模块专为以太网/IP 网络而设计。1756-EN4TR 控制器模块可用于具有星形拓扑或 DLR 拓扑的控制系统。该控制器可用作使用铜介质并具有嵌入式交换机的以太网/IP 桥接设备。它可以处理 10 Mbps、100 Mbps 或 1 Gbps 的通信速率，并且可以处理多达 256 个以太网/IP 网络轴上的集成运动。1756-EN4TR 控制器模块支持 SNMP ，但请注意，这需要密码。

Allen-Bradley/Rockwell Automation ControlLogix 1756-EN4TR 控制器模块无法支持或在扩展环境中使用。其 I/O 数据包速率容量（以每秒数据包数为单位）因设备设置而异。数据包速率容量可以是每秒 50,000 个数据包（无 CIP 安全性）、25,000 个数据包/秒（具有完整性）和 15,000 个数据包/秒（具有完整性和机密性）。1756-EN4TR 控制器模块的一些关键应用包括控制 I/O 模块和驱动器的应用、用作远程以太网/IP 链路上的 I/O 适配器、与 HMI 和其他以太网/IP 设备通信，以及桥接以太网/IP 链路以将消息路由到其他网络上的设备的应用。它支持冗余适配器。1756-EN4TR 控制器模块可在需要时在显式保护模式下使用，并且此模式不允许在模块处于活动状态时对其进行任何配置更改。

1756-EN4TR 控制器模块 以太网/IP 网络

【英文介绍】

The Allen-Bradley 1756-EN3TR is a communication bridge module that is part of the Allen-Bradley ControlLogix 2-port series of modules. The module contains two 10-100 Mbps RJ-45 ports with embedded switches. The controller supports up to 128 CIP motion axes (position loops) and up to 255 total axes, up to 128 TCP/IP connections and 256 Logix connections. Special features of the Allen-Bradley 1756-EN3TR include embedded switch technology, 10-100 Mbps communication rates, 128 CIP motion axes, 128 TCP/IP connections, and 256 Logix connections. Its backplane current (mA) is 1A at 5.1V DC and 3mA at 24V DC. The 1756-EN3TR has a maximum power consumption of 5.1W and a power consumption of 5.1W. It comes with a USB port. The 1756-EN3TR ™ has an insulation voltage of 30 volts continuous, an open housing, and an operating temperature of 32-140 degrees Fahrenheit. It has a current rating of 1.2 amps, a heat dissipation of 21.28 BTU per hour, and a power consumption of 6.2 watts. Power consumption is 5.1 watts, and backplane currents are 3 mA, 24 V DC, and 1 amp (5V DC). The 1756-EN3TR module supports EtherNet/IP connectivity and linear, star, and device-level ring network (DLR) topologies. The module's ™ default configuration supports linear and star topologies. EtherNet/IP is an open industrial networking standard protocol that supports real-time I/O message exchange. EtherNet/IP networks use off-the-shelf Ethernet communication chips to communicate with physical media.

The 1756-EN3TR is an Ethernet communication module that is part of the ControlLogix Programmable Automation Controller (PAC) platform. This is an optional module that can be installed on any ControlLogix chassis, whether it is a local or distributed I/O station. Specifically designed as an Ethernet bridge module, the module connects Ethernet-enabled processors, remote I/O stations, human machine interface (HMI), monitoring and Data acquisition (SCADA) systems to a public network for high-speed data exchange.

The 1756-EN3TR feature supports both linear and device-level ring network (DLR) topologies, where linear is the smallest and simplest network connection where a single run of Cat5 or Cat6 physical media is used to implement an Ethernet network. It does not provide a certain degree of redundancy, whereas the device level ring network (DLR) provides high availability and redundancy.

The 1756-EN3TR supports up to 128 TCP connections, 256 Common Industrial Protocol (CIP) connections, 128 backplane and 128 Ethernet CIP unconnected messages. These connections can be made via the integrated two (2) RJ45 Ethernet interfaces installed on the module. The module supports transfer speeds of 10/100 Mbps with a maximum coverage distance of 100 meters and can be extended by installing an Ethernet switch or fiber optic media converter.

The 1756-EN3TR is powered by a backplane with a current consumption of 1 amp @ 5.1 volts DC and 3 MA @ 24 volts DC, a power consumption of 5.1 watts and a heat dissipation of 17.4 British thermal units (BTU) per hour.
