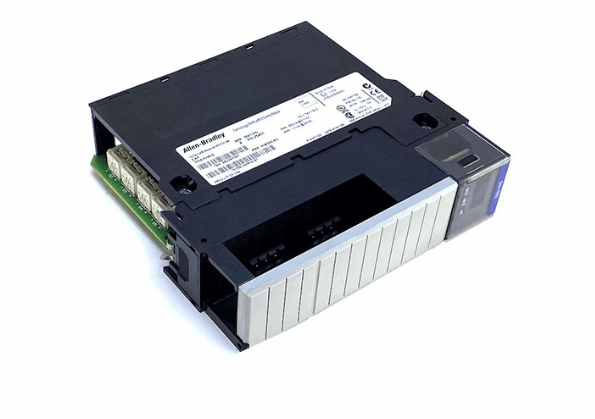

Allen-Bradley 1756-DHRIOXT 通信模块 远程 I/O 通信

Allen-Bradley 1756-DHRIOXT 通信模块 远程 I/O 通信 【产品详情】 制造者罗克韦尔自动化品牌艾伦-布拉德利零件号/目录号1756-DHRIOXT系列ControlLogix模块类型桥接器/扫描仪模块Allen-Bradley 1756-DHRIOXT 是 ControlLogix Data Highway Plus/Remote I/O 通信模块中的一款极端环境产品。

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

Allen-Bradley 1756-DHRIOXT 通信模块 远程 I/O 通信





【产品详情】



制造者罗克韦尔自动化
品牌艾伦-布拉德利
零件号/目录号1756-DHRIOXT
系列ControlLogix
模块类型桥接器/扫描仪模块

Allen-Bradley 1756-DHRIOXT 是 ControlLogix Data Highway Plus/Remote I/O 通信模块中的一款极端环境产品。它支持 Data Highway Plus –DH+ 消息传递、控制和信息协议 – CIP 消息传递以及远程 I/O 通信。1756-DHRIOXT 有助于不同网络上的设备之间的通信,它可以通过多达三个机箱和四个通信网络路由消息。


我们的 ControlLogix® 系统使用连接在设备间建立通信连接。我们基于机架的 Bulletin 1756 通信模块可以帮助建立这些连接并在 1756 机架中对用户、设备和网络实施基于网络的访问控制。我们提供多种支持 EtherNet/IP、DeviceNet、ControlNet 和其他网络协议的模块。


1756-DHRIOXT 在每个远程 I/O 通道上支持 32 个逻辑机架连接,在每个远程 I/O 通道上支持 16 个块传输连接。其 DH+ 连接允许每个 DH+ 通道最多发送 32 条 DH+ 消息。DH+ 的通信速率为 57.6 Kbps;RIO为57.6 Kbps、115.2 Kbps和230.4 Kbps。它在 5.1V DC 时的电流消耗为 850 mA,在 24V DC 时的电流消耗为 1.7 mA。它还支持最多 32 个 Logix 连接。


基于机箱的 1756-DHRIOXT 可以插入背板的任何插槽中。它与 1756-A4LXT、1756-A5XT、1756-A7XT、1756-A7LXT ControlLogix 机箱和标准 1756-PBXT 电源兼容。它具有两个端口,可单独选择用于 DH+ 或远程 I/O。它具有 30V(连续)隔离电压和基本绝缘类型。作为 ControlLogix-XT 型号,它的工作温度范围为 -25-70 °C (-13-158 °F)。


1756 EtherNet/IP 通信模块

通过 EN4TR 和 EN4TRXT 通信模块提供 CIP Security 协议

提供实时 I/O 通信和消息交换

使用现成的以太网通信芯片和物理介质

支持 128 或 256 个 Logix 连接

提供嵌入式交换机技术功能

通过 ControlLogix-XT™ 通信模块提供极端环境支持

使用安全通信模块提供从控制系统到上层系统、编程终端和其他 ControlLogix 控制器的安全连接

提供设备级环网 (DLR) 连接,允许设备构成环形拓扑来提供可复原性

为全冗余网络基础设施提供并行冗余协议 (PRP) 支持

1756 DeviceNet 通信模块

使用通用工业协议 (CIP) 来控制、配置和收集工业级设备的数据

在简单工业设备(传感器和执行器)和高级设备(控制器和计算机)之间提供连接

支持 64 个节点

1756 ControlNet 通信模块

使用通用工业协议 (CIP) 将 I/O 网络和点对点网络的功能相结合,为这两项功能提供高速性能

为实时高吞吐量应用项目提供开放式控制网络

为所有关键任务控制数据提供确定性的可重复传输

支持对时间无苛刻要求的数据传输

支持 64 或 128 个 Logix 连接以及 99 个节点

提供极端环境支持

1756 Data Highway Plus™ 和远程 I/O 通信模块

支持设备间消息传递

远程 I/O 链路连接远程 I/O 机架和其他智能设备

远程 I/O 功能使模块充当扫描器,从而与远程 I/O 设备相互传输数字量数据和块传送数据

支持 32 个 Logix 连接

支持在 DH+™ 网络上的设备间进行通信

1756 SynchLink 通信模块

为分布式运动和协调驱动控制提供时间同步和数据广播

将 ControlLogix 机架连接到 SynchLink™ 光纤通信连接

允许控制器使用其他机架中某个控制器的运动轴数据





Allen-Bradley 1756-DHRIOXT 通信模块 远程 I/O 通信





英文介绍





The Allen-Bradley 1756-DHRIOXT is an extreme environment product in the ControlLogix Data Highway Plus/Remote I/O communication module. It supports Data Highway Plus - DH+ messaging, control and information protocol - CIP messaging, and remote I/O communication. The 1756-DHRIOXT facilitates communication between devices on different networks, and it can route messages through up to three chassis and four communication networks.


Our ControlLogix® systems use connectivity to establish communication between devices. Our rack-based Bulletin 1756 communication module can help establish these connections and implement network-based access control for users, devices, and networks in the 1756 rack. We offer a variety of modules that support EtherNet/IP, DeviceNet, ControlNet, and other networking protocols.


The 1756-DHRIOXT supports 32 logical rack connections per remote I/O channel and 16 block transport connections per remote I/O channel. The DH+ connection allows each DH+ channel to send a maximum of 32 DH+ messages. DH+ communication rate is 57.6 Kbps; RIO is 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps. It has a current consumption of 850 mA at 5.1V DC and 1.7 mA at 24V DC. It also supports up to 32 Logix connections.


The chassis based 1756-DHRIOXT can be inserted into any slot on the backplane. It is compatible with 1756-A4LXT, 1756-A5XT, 1756-A7XT ControlLogix enclosures and standard 1756-PBXT power supplies. It has two ports that can be selected separately for DH+ or remote I/O. It has 30V (continuous) isolation voltage and basic insulation type. As the ControlLogix-XT model, it operates in a temperature range of -25-70 °C (-13-158 °F).


1756 EtherNet/IP communication module

The CIP Security protocol is provided through the EN4TR and EN4TRXT communication modules

Provides real-time I/O communication and message exchange

Use off-the-shelf Ethernet communication chips and physical media

Supports 128 or 256 Logix connections

Provides embedded switch technology functions

Extreme environment support via the ControlLogix-XT™ communication module

Provide secure connections from the control system to the upper layer systems, programming terminals, and other ControlLogix controllers using the secure communication module

Provides device level ring network (DLR) connectivity, allowing devices to form a ring topology to provide resilience

Parallel Redundancy Protocol (PRP) support for fully redundant network infrastructure

1756 DeviceNet communication module

Use the Common Industrial Protocol (CIP) to control, configure and collect data from industrial-grade equipment

Provides connectivity between simple industrial equipment (sensors and actuators) and advanced equipment (controllers and computers)

Supports 64 nodes

1756 ControlNet Communication module

The Common Industrial Protocol (CIP) is used to combine the functions of I/O networks and peer-to-peer networks, providing high-speed performance for both functions

Provides open control network for real-time high throughput application projects

Provide deterministic, repeatable transmission of all mission-critical control data

Supports time-free data transmission

Supports 64 or 128 Logix connections and 99 nodes

Provide extreme environment support

1756 Data Highway Plus™ and remote I/O communication module

Supports message transfer between devices

Remote I/O links Connect remote I/O racks and other smart devices

The remote I/O function enables the module to act as a scanner to transfer digital and block transfer data to and from remote I/O devices

Supports 32 Logix connections

Supports communication between devices on a DH+™ network

1756 SynchLink communication module

Provides time synchronization and data broadcasting for distributed motion and coordinated drive control

Connect the ControlLogix rack to the SynchLink™ fiber optic communications connection

Allows the controller to use the axis of motion data of a controller in another rack
