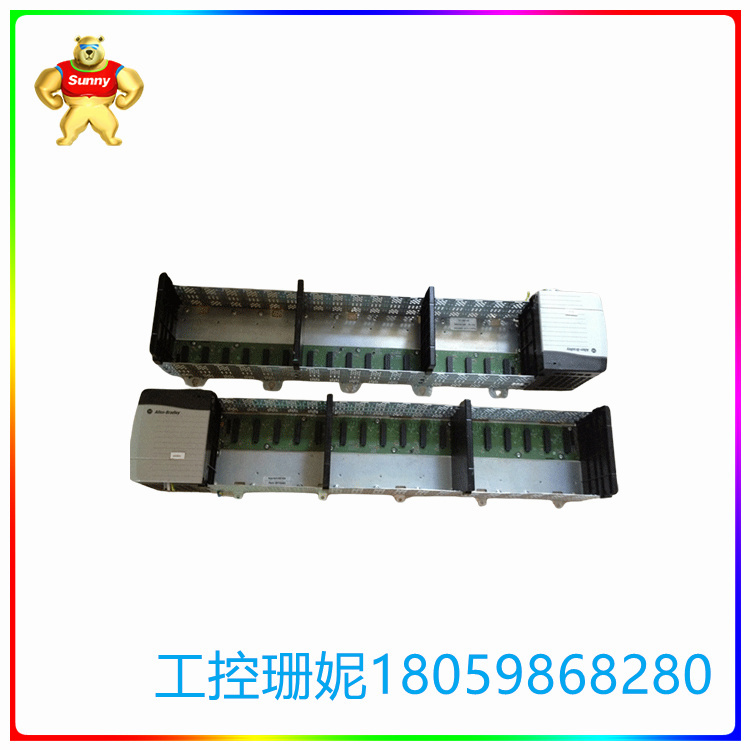

1756-A17K 开放式机箱

【产品详情】

Allen-Bradley 1756-A17K 是一款开放式机箱。此机箱应安装在为特定环境条件设计的适当外壳中。1756-A17K 专为水平后面板组件而设计。如果机箱安装卡舌在固定螺钉之前未平放，请使用额外的垫圈作为垫片，以免机箱被螺钉钉折叠。翘曲的机箱会损坏背板并导致间歇性运行。Allen-Bradley 1756-A17K 包含一条地面总线。接地总线是机柜内每个机箱和机箱本身的公共连接。有关如何在此设备上安装中心总线的更多信息，请参阅《工业自动化灌装和控制指南》，1770-4.1。

Allen-Bradley 1756-A17K 的重量约为 2.2 千克（4.8 磅）。此机箱的最小机柜为 76.2 x 91.4 x 20.3 厘米（30 x 36 x 8 英寸）。该机箱的相对湿度为 5-95%，无冷凝。该机箱在 2-10 Hz 时的工作振动为 500 g。该底盘的工作冲击为 30 g。该底盘的非工作冲击为 30 克。1756-A13K 的最高周围空气温度为 60 °C （140 °F）。此机箱的工作温度为 -25-60 °C （-13-140 °F）。此机箱的非工作温度为 -40-85 °C （-40-185 °F）。该机箱具有 6 kV 接触放电和 8 kV 空气放电的 ESD 抗扰度。

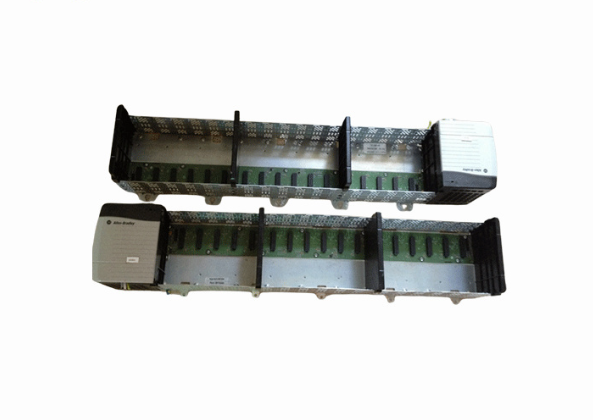

1756-A17K 开放式机箱

【英文介绍】

The Allen-Bradley 1756-A17K is an open chassis. This case should be installed in an appropriate housing designed for specific environmental conditions. The 1756-A17K is designed for horizontal rear panel components. If the chassis mounting latch is not laid flat before securing the screws, use additional washers as spacers to prevent the chassis from being folded by screws. A warped case can damage the backplane and cause intermittent operation. Allen-Bradley 1756-A17K includes a ground bus. The ground bus is a common connection between each chassis in the cabinet and the chassis itself. For more information on how to install a central bus on this device, see the Industrial Automation Filling and Control Guide, 1770-4.1.

The Allen-Bradley 1756-A17K weighs about 2.2 kg (4.8 lb). The minimum cabinet size of this chassis is 76.2 x 91.4 x 20.3 cm (30 x 36 x 8 inches). The relative humidity of the chassis is 5-95%, and there is no condensation. The case has an operating vibration of 500 g at 2-10 Hz. The chassis has a working impact of 30 g. The chassis has a non-working impact of 30 grams. The maximum ambient air temperature of 1756-A13K is 60 °C (140 °F). The operating temperature of this chassis is -25-60 °C (-13-140 °F). The non-operating temperature of this chassis is -40-85 °C (-40-185 °F). The case has ESD immunity of 6 kV contact discharge and 8 kV air discharge.

1756-A17K 开放式机箱
