1756-2WS 双电子秤模块 提供状态更新

【产品详情】

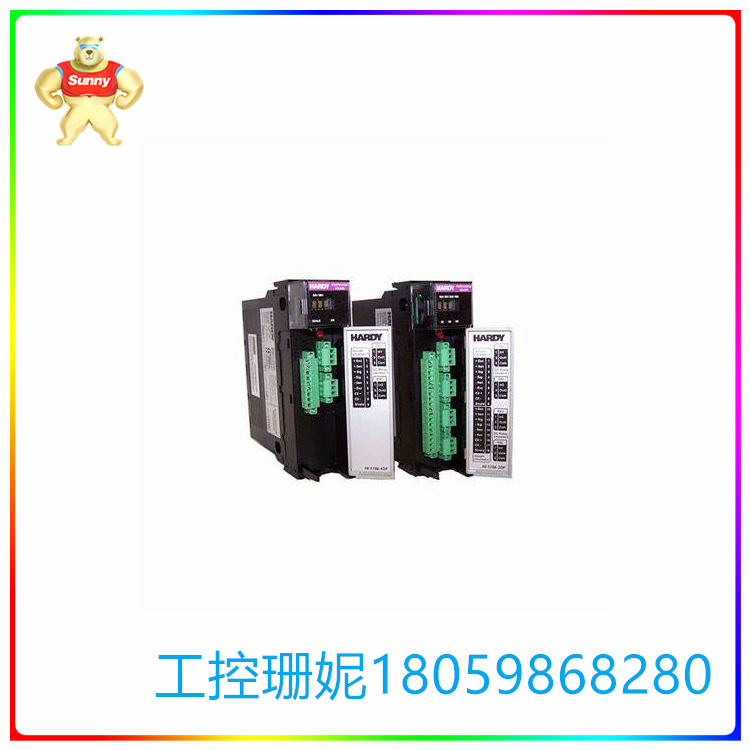

1756-2WS 电子秤模块专为 Allen-Bradley ControlLogix 系统而设计。它由 Hardy Process Solutions 设计和制造。1756-2WS 电子秤模块的典型应用包括配料、混合、灌装、分配、按重量分量和重量检查应用。1756-2WS 模块是一个双秤模块，它在 ControlLogix 机箱中占用一个插槽。该模块降低了安装成本并提高了速度，因为不需要外部以太网交换机和路由器。该模块从称重传感器或传感器收集数据，并通过机箱背板将收集的数据传输到 ControlLogix 处理器。1756-2WS 模块支持 C2 电子校准，无需测试砝码即可进行校准。Wavesaver 模块功能可消除栅尺周围的植物振动影响。1756-2WS 秤模块支持热插拔，也称为通电插拔。

1756-2WS 秤模块前面板上的两个或三个 LED 报告其功能特性并提供状态更新。该模块重 0.5 千克。1756-2WS 秤模块的工作温度范围为 32 至 140 华氏度，运输/储存温度范围为 -40 至 185 华氏度。1756-2WS 模块支持的称重模式包括净值、毛重和变化率模式。该模块还支持使用测试砝码的传统校准。1756-2WS 缩放模块在 24 伏直流电下消耗的电流小于 0.0125 安培，在 5 伏直流电下从机箱背板消耗的电流小于 1 安培。该模块可以感应 5 伏直流电，并且可以接受 -0.3 至 15.3 毫伏的输入信号。模块输出可提供 5 伏直流至 8.75 伏直流的输出电压。1756-2WS 模块已通过 UL、CE、RoHS 和 REACH 标准认证。

1756-2WS 双电子秤模块 提供状态更新

【英文介绍】

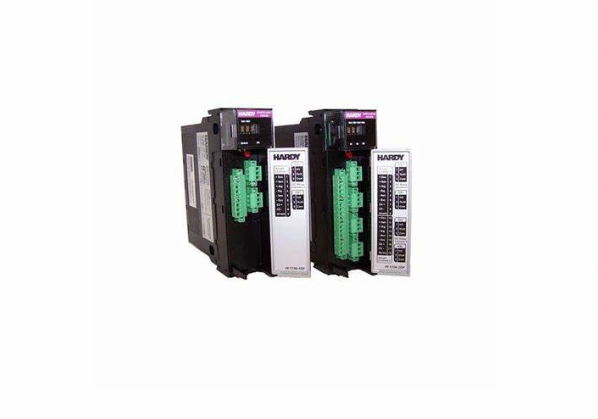

The 1756-2WS electronic scale module is designed for Allen-Bradley ControlLogix systems. It was designed and manufactured by Hardy Process Solutions. Typical applications of the 1756-2WS electronic scale module include batching, mixing, filling, dispensing, weight by weight and weight checking applications. The 1756-2WS module is a dual scale module that occupies a slot in the ControlLogix chassis. The module reduces installation costs and increases speed because external Ethernet switches and routers are not required. The module collects data from a load cell or sensor and transmits the collected data to the ControlLogix processor via the case backplane. The 1756-2WS module supports C2 electronic calibration and can be calibrated without testing weights. The Wavesaver module function eliminates the effects of plant vibrations around the grid ruler. The 1756-2WS scale module supports hot swap, also known as power swap.

Two or three leds on the front panel of the 1756-2WS scale module report their functional characteristics and provide status updates. The module weighs 0.5 kg. The 1756-2WS scale module has an operating temperature range of 32 to 140 degrees Fahrenheit and a transport/storage temperature range of -40 to 185 degrees Fahrenheit. Weighing modes supported by the 1756-2WS module include net value, gross weight and rate of change modes. The module also supports traditional calibration using test weights. The 1756-2WS scale module consumes less than 0.0125 amps at 24 volts DC and less than 1 amp from the chassis backplane at 5 volts DC. The module can sense 5 volts of direct current and can accept input signals from -0.3 to 15.3 millivolts. The module output provides an output voltage from 5 V DC to 8.75 V DC. The 1756-2WS module is certified to UL, CE, RoHS and REACH standards.

1756-2WS 双电子秤模块 提供状态更新
