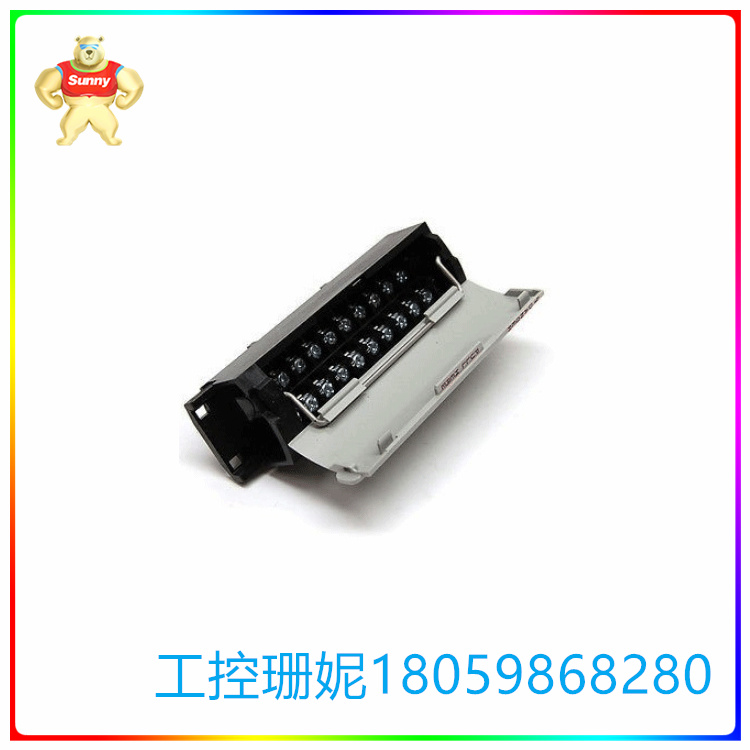

Allen-Bradley1756-TBS6H 可拆卸接线端子
【产品详情】
Allen-Bradley/Rockwell Automation 1756-TBS6H RTB 模块是 ControlLogix 系列的可拆卸接线端子。每个端子只能支持 1 根导线。1756-TBS6H RTB 模块是弹簧夹式 RTB 和 36 位型 RTB。它可以支持 36 至 18 AWG 电线或 23 至 14 AWG 电线。1756-TBS6H RTB 模块是一种标准深度的 RTB,可以使用标准尺寸的电线托管标准接线设置。
Allen-Bradley 1756-TBS6H 是一款用于 1756 I/O 模块的可拆卸接线端子 (RTB)。它是 I/O 模块附件,必须单独订购。它为互连 1756 I/O 模块和工业厂房布线提供了灵活性。它很容易插入 I/O 模块的前部。
1756-TBS6H 可拆卸接线端子是一款36针弹簧夹, 带标准外壳 (接线臂深度< 2.5 〖mm〗^2)。它的尺寸为 5.51 x 4.41 x 5.71 英寸。它重 0.3 磅。接线时,请使用 0.33 – 2.1 ̧–mm〗^2 (22 - 14 AWG) 实心或绞合铜线,额定温度为 90 °C (194 °F) 或更高,最大绝缘规格为 1.2 毫米(3/64 英寸)。在任何单个端子上,请勿使用多个导体。
每个 ControlLogix I/O 模块都可以安装在任何 ControlLogix 机箱中,并且需要一个可拆卸接线端子 (RTB) 来连接所有现场侧接线。每个 I/O 模块都有许多应用,从高速数字处理到过程控制。在 ControlLogix 架构中,输入和输出状态使用生产者-消费者技术在相同或不同机箱中的多个控制器之间共享。1756-TBS6H RTB 适用于工作温度为 0-60 °C、工作冲击为 30g 的清洁干燥工业环境。
Allen-Bradley1756-TBS6H 可拆卸接线端子
【英文介绍】
The Allen-Bradley/Rockwell Automation 1756-TBS6H RTB module is a detachable terminal for the ControlLogix series. Each terminal can support only one wire. The 1756-TBS6H RTB module is a spring-clip RTB and a 36-position RTB. It can support 36 to 18 AWG wires or 23 to 14 AWG wires. The 1756-TBS6H RTB module is a standard depth RTB that can use standard wiring Settings with standard size wire hosting.
The Allen-Bradley 1756-TBS6H is a detachable terminal (RTB) for the 1756 I/O module. It is an I/O module attachment and must be ordered separately. It provides flexibility for interconnecting 1756 I/O modules and industrial plant cabling. It plugs easily into the front of the I/O module.
The 1756-TBS6H detachable terminal is a 36-pin spring clamp with a standard housing (arm depth < 2.5 a €- mma €- ^2). It measures 5.51 x 4.41 x 5.71 inches. It weighs 0.3 pounds. For wiring, use 0.33 -- 2.1 ̧ -- mma €-- ^2 (22-14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or higher with a maximum insulation specification of 1.2 mm (3/64 in). Do not use more than one conductor on any single terminal.
Each ControlLogix I/O module can be installed in any ControlLogix chassis and requires a detachable terminal (RTB) to connect all field side wiring. Each I/O module has many applications, from high-speed digital processing to process control. In the ControlLogix architecture, input and output states are shared between multiple controllers in the same or different chassis using producer-consumer technology. The 1756-TBS6H RTB is suitable for clean and dry industrial environments with an operating temperature of 0-60 °C and a working impact of 30g.
