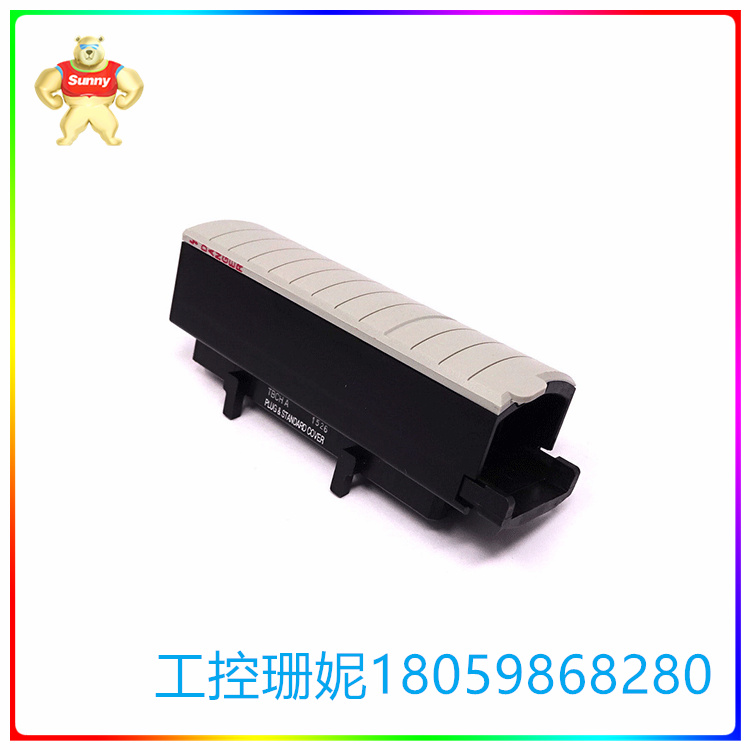

1756-TBCH 可拆卸接线端子 组件




【产品详情】

 Allen-Bradley 1756-TBCH 是一款 ControlLogix 可拆卸接线端子 (RTB) 组件。该组件用作 1756 I/O 模块的模块化接线端子。该元件是带标准外壳的 36 针笼式夹可拆卸接线端子。


Allen-Bradley 1756-TBCH 是一款用于 1756 I/O 模块的可拆卸接线端子 (RTB)。它是 I/O 模块附件,必须单独订购。1756-TBCH 在互连 1756 I/O 模块和工业设备布线方面提供了灵活性。它插入 I/O 模块的前面。


1756-TBCH 可拆卸接线端子是一款 36 针笼式接线端子, 带标准外壳 (接线臂深度为 2.5 mm. sq.)。当向RTB发出信号时,所需的扭矩为0.5 Nm螺钉扭矩。建议使用宽度为 3.2 毫米(1/8 英寸)的螺丝刀螺丝刀宽度。它的尺寸为 5.51 x 4.41 x 5.71 英寸。重 0.3 磅。接线时,使用额定温度为 90 度的实心或绞合铜线。摄氏度(194°。华氏度)或更高,最大绝缘厚度为 1.2 毫米(3/64 英寸)。如果是单线连接,电线尺寸必须为 0.33 - 2.1 mm sq. (22 - 14 AWG),对于双线连接,电线尺寸必须为 0.33 - 1.3 mm sq. (22 - 16 AWG)。在任何单个端子上,不要接线超过两根导体。


每个 ControlLogix I/O 模块都可以安装在任何 ControlLogix 机箱中,它们都需要一个可拆卸接线端子 (RTB) 来连接所有现场侧接线。每个 I/O 模块都有许多应用,从高速数字处理到过程控制。在 ControlLogix 架构中,输入和输出状态使用生产者-消费者技术在相同或不同机箱中的多个控制器之间共享。1756-TBCH RTB 旨在用于 0-60 度的清洁干燥工业环境。摄氏工作温度和 30g 工作冲击。


1756-TBCH 是一款 36 针笼式夹具可拆卸接线端子 (RTB),用于为输入和输出设备提供模块化和灵活的接线端子。此 RTB 是一个模块组件,安装在 ControlLogix I/O 模块的前面,隐藏在模块门盖中。

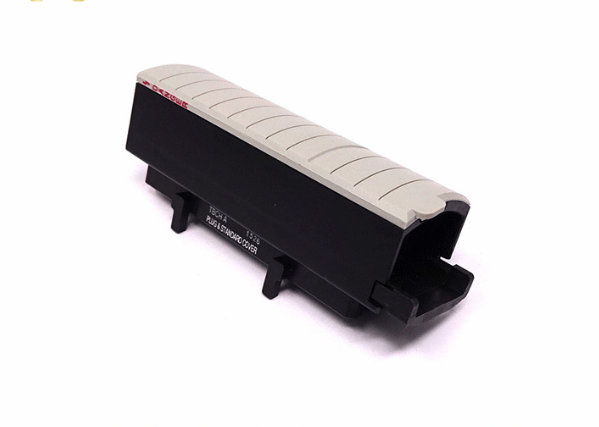

1756-TBCH 可拆卸接线端子 组件


英文介绍





The Allen-Bradley 1756-TBCH is a ControlLogix detachable Terminal (RTB) assembly. This component is used as a modular terminal for the 1756 I/O module. The element is a 36-pin cage clamp removable terminal with a standard housing.


The Allen-Bradley 1756-TBCH is a detachable terminal (RTB) for the 1756 I/O module. It is an I/O module attachment and must be ordered separately. The 1756-TBCH provides flexibility in interconnecting 1756 I/O modules and industrial equipment cabling. It plugs into the front of the I/O module.


The 1756-TBCH detachable terminal is a 36-pin cage terminal with a standard housing (arm depth of 2.5 mm. sq.). When signaling to the RTB, the required torque is 0.5 Nm screw torque. A screwdriver with a width of 3.2 mm (1/8 inch) is recommended. It measures 5.51 x 4.41 x 5.71 inches. It weighs 0.3 pounds. When wiring, use solid or stranded copper wire with a temperature rating of 90 degrees. Degrees Celsius (194° C). Fahrenheit) or higher, with a maximum insulation thickness of 1.2 mm (3/64 inch). For a single wire connection, the wire size must be 0.33-2.1 mm sq. (22-14 AWG), for a two-wire connection, the wire size must be 0.33-1.3 mm sq. (22-16 AWG). Do not connect more than two conductors to any single terminal.


Each ControlLogix I/O module can be installed in any ControlLogix chassis, and they all require a removable terminal (RTB) to connect all field side wiring. Each I/O module has many applications, from high-speed digital processing to process control. In the ControlLogix architecture, input and output states are shared between multiple controllers in the same or different chassis using producer-consumer technology. The 1756-TBCH RTB is designed for use in clean and dry industrial environments of 0-60 degrees. Celsius operating temperature and 30g operating impact.


The 1756-TBCH is a 36-pin cage jig detachable terminal (RTB) designed to provide modular and flexible terminals for input and output devices. This RTB is a module component that is mounted on the front of the ControlLogix I/O module, hidden in the module door cover.
