1756-L55M13 非易失性存储器 开放式控制器

【产品详情】

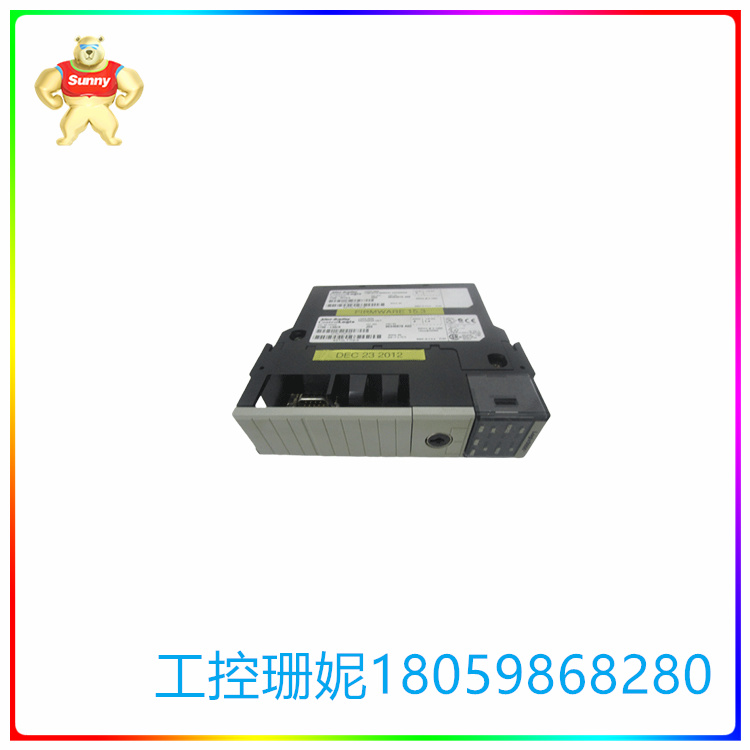

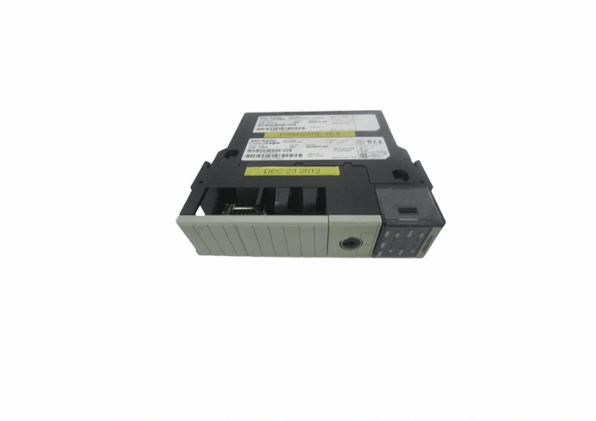

Allen-Bradley 1756-L55M13 是一款 A 系列 ControlLogix 5555 控制器。虽然该特定控制器没有可用的非易失性存储器，但它确实具有 1.5 MB 的数据和逻辑存储器以及 208 KB 的 I/O 存储器。1756-L55M13 控制器的重量为 0.35 克或 12.5 盎司。它没有外壳类型等级，因为它是一个开放式控制器。

它还能够支持以下通信选项：DeviceNet、ControlNet、Ethernet/IP、通用远程 I/O 串行、Data Highway Plus、通过梯形例程的 Modbus、SynchLink 和 DH-485。

1756-L55M13 的背板电流为 0.014A （24V DC） 和 1.23A （5.1V DC）。其散热为 19.1 BTU/hr，而功耗为 5.6W。它具有基本绝缘类型和 30V 的连续隔离电压，并且还经过测试可承受 707V 直流 60 秒。1756-L55M13 控制器的传导射频抗扰度为 10V rms，在 1 kHz 至 80 MHz 范围内具有 150 kHz 正弦波 80%AM。

控制器的存储温度在 -40 至 85 摄氏度之间，工作温度在 0 至 60 摄氏度之间。相对湿度（非冷凝）为 5% 至 95%。它在 2 至 10 Hz 时的振动为 500 g，工作冲击为 30 g，非工作冲击为 50 g。

该控制器具有可以更换的电池，但仅在需要时更换，并且仅与 1756-BA1 锂电池兼容。它只能与 1756-CP3 或 1747-CP3 编程电缆连接。1756-L55M13 控制器可用于冗余控制器系统，但需要位于同一 ControlNet 网络中。

1756-L55M13 非易失性存储器 开放式控制器

【英文介绍】

The Allen-Bradley 1756-L55M13 is an A-series ControlLogix 5555 controller. While this particular controller has no non-volatile memory available, it does have 1.5 MB of data and logic memory and 208 KB of I/O memory. The 1756-L55M13 controller weighs 0.35 grams or 12.5 ounces. It has no shell type rating because it is an open controller.

It also supports the following communication options: DeviceNet, ControlNet, Ethernet/IP, Universal Remote I/O Serial, Data Highway Plus, Modbus via ladder routines, SynchLink, and DH-485.

The backplane currents of the 1756-L55M13 are 0.014A (24V DC) and 1.23A (5.1V DC). The heat dissipation is 19.1 BTU/hr, while the power consumption is 5.6W. It has a basic insulation type and a continuous isolation voltage of 30V, and has also been tested to withstand 707V DC for 60 seconds. The 1756-L55M13 controller has conducted RF immunity of 10V rms with 150 kHz sine wave 80%AM in the range of 1 kHz to 80 MHz.

The storage temperature of the controller is between -40 and 85 degrees Celsius and the operating temperature is between 0 and 60 degrees Celsius. Relative humidity (non-condensing) is 5% to 95%. It has a vibration of 500 g at 2 to 10 Hz, a working shock of 30 g, and a non-working shock of 50 g.

The controller has a replaceable battery, but only when needed, and is only compatible with the 1756-BA1 lithium battery. It can only be connected with a 1756-CP3 or 1747-CP3 programming cable. The 1756-L55M13 controller can be used in redundant controller systems, but needs to be in the same ControlNet network.

1756-L55M13 非易失性存储器 开放式控制器
