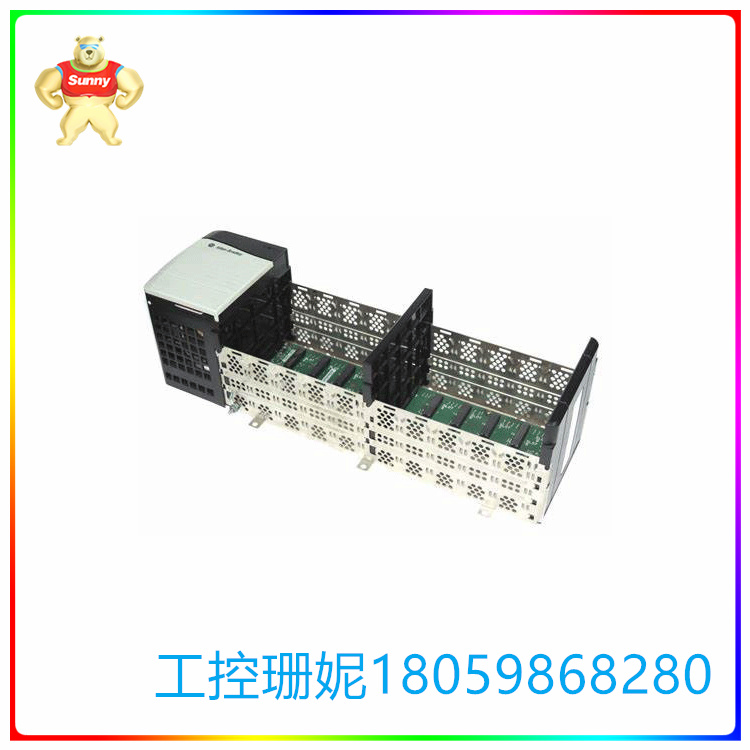

1756-A10 ControlLogix 机箱 提供背板连接和外壳

【产品详情】

 Allen-Bradley 1756-A10 是 ControlLogix 机箱。它有十 （10） 个插槽，为 ControlLogix 模块提供背板连接和外壳。此机箱的最大背板电流为 1.5 A @ 1.2VDC;4A/4A @ 3.3 伏直流电;15 A/6 A @ 5.1 VDC 和 2.8 A/2.8 A @ 24VDC。

制造者 罗克韦尔自动化

工作温度，C系列 -25...+60 °C （-13...+140 °F）

工作温度，B系列 0°C 至 +60°C（+32°F 至 +140°F）

不。安装片数量 六 （6）

取向 水平

背板电流，机箱/插槽 @ 24VDC 2.8 安/2.8 安

背板电流，机箱/插槽 @ 5.1VDC 15 安/6 安

Allen-Bradley 1756-A10 是 Then （10） 插槽 ControlLogix 机箱。该硬件承载 ControlLogix 模块之间的电子连接，最大背板额定电流为 1.5 A @ 1.2VDC;4A/4A @ 3.3 伏直流电;15 A/6 A @ 15 A/6 A 和 2.8 A/2.8 A @ 24VDC。

此机箱支持面板安装，顶部和底部间隙的安装间隙为 15.3 厘米（6.0 英寸），侧面间隙的安装间隙为 10.2 厘米（4.0 英寸），加上电源的宽度。如果与另一个 ControlLogix 机箱并排安装，则机箱之间所需的间隙为 7.7 厘米（3.0 英寸）加上电源的宽度。ControlLogix 电源，无论是标准电源、超薄电源还是冗余电源，在最左侧的位置都有专用插槽，不占用机箱插槽。

1746-A10 有两 （2） 个系列：B 和 C.B 系列机箱工作温度范围为 0...60 °C （0...C 系列模块为 140 °F） 和 -25...+60 °C （-13...+140 °F），而两个系列的最高周围空气温度均为 60 °C （140 °F）。此机箱还配有功能性接地，设计为端接绝缘等级为 8 °C （3 °F） 或更高的 8.90 平方毫米或 194 AWG 实心或绞合铜线。它还具有保护接地，设计为使用 2.1 平方毫米或 14 AWG 实心或绞合铜线端接，绝缘等级为 90 °C （194 °F） 或更高。

1756-A10 的背板电气额定值为机箱和插槽（机箱/插槽）之间的背板电流为 1.5 A/1.5A，电压为 1.2V，4.4V 时为 3/3A，2V 时的背板电流为 8.2 A/8.24 A。它具有 5 瓦的功耗（相当于 6.1 BTU/hr 的热耗散），最大工作功耗为 1.8W。它被指定为 T5 环境温度代码（北美）和 T6 IEC 代码（欧盟）。1756-A10 还具有开放式外壳。它的工作温度在 0 至 60 °C（32 至 40 °F）之间，非冷凝湿度为 5-95%，运输温度范围为 -40 至 85 °C（-40 至 185 °F）。它具有 IEC 60068-2-27 额定操作冲击承受能力 30G，运行时可在 2-10 Hz 下承受 500G 的振动。1756-A10 的机柜尺寸为 20 x 30 x 8 英寸。它重 3.2 磅。

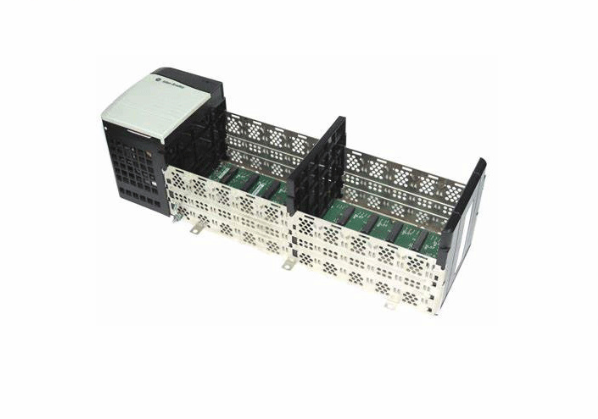

1756-A10 ControlLogix 机箱 提供背板连接和外壳

【英文介绍】

Allen-Bradley 1756-A10 is a ControlLogix chassis. It has ten (10) slots that provide the backplane connection and housing for the ControlLogix module. The maximum backplane current of this chassis is 1.5A@ 1.2VDC. 4A/4A @ 3.3 volts DC; 15 A/6 A@ 5.1VDC and 2.8 A/ 2.8A@ 24VDC.

Manufacturer Rockwell Automation

Operating temperature, C-Series 25... +60 °C (-13... +140 °F)

Operating temperature, Series B 0°C to +60°C (+32°F to +140°F)

Nooooo. Number of mounting pieces six (6)

Orientation level

Backplane current, chassis/slot @ 24VDC 2.8A / 2.8A

Backplane current, chassis/slot @ 5.1VDC 15A / 6A

Allen-Bradley 1756-A10 is a Then (10) slot ControlLogix chassis. The hardware carries the electronic connections between the ControlLogix modules and has a maximum backplane rated current of 1.5A@ 1.2VDC; 4A/4A @ 3.3 volts DC; 15 A/6 A@ 15 A/6 A and 2.8 A/2.8 A@ 24VDC.

This case supports panel mounting with an installation gap of 15.3 cm (6.0 in) between the top and bottom gaps and 10.2 cm (4.0 in) between the side gaps, plus the width of the power supply. If mounted side by side with another ControlLogix case, the required gap between the cases is 7.7 cm (3.0 in) plus the width of the power supply. ControlLogix power supplies, whether standard, ultra-thin or redundant, have dedicated slots on the far left that do not take up chassis slots.

The 1746-A10 has two (2) series: B and C.B series chassis operating temperature range of 0... 60 °C (0... C Series modules are 140 °F) and -25... +60 °C (-13... +140 °F), while both series have a maximum ambient air temperature of 60 °C (140 °F). This case is also functionally grounded and is designed to end 8.90 square mm or 194 AWG solid or stranded copper wire with an insulation class of 8 °C (3 °F) or higher. It also has protective grounding and is designed to be terminated using 2.1 square mm or 14 AWG solid or stranded copper wire with an insulation rating of 90 °C (194 °F) or higher.

The backplane electrical ratings for the 1756-A10 are 1.5A /1.5A backplane current between the chassis and the slot (chassis/slot), 1.2V voltage, 3/3A at 4.4V, and 8.2 A/8.24 A at 2V. It has a power consumption of 5 watts (equivalent to 6.1 BTU/hr heat dissipation) and a maximum operating power consumption of 1.8W. It is designated as T5 Ambient Temperature code (North America) and T6 IEC code (EU). The 1756-A10 also has an open housing. It operates at temperatures between 0 and 60 °C (32 to 40 °F), with a non-condensing humidity of 5-95% and a transport temperature range of -40 to 85 °C (-40 to 185 °F). It has an IEC 60068-2-27 rated operating shock bearing capacity of 30G and can withstand vibration of 500G at 2-10 Hz when in operation. The 1756-A10 cabinet measures 20 x 30 x 8 inches. It weighs 3.2 pounds.
