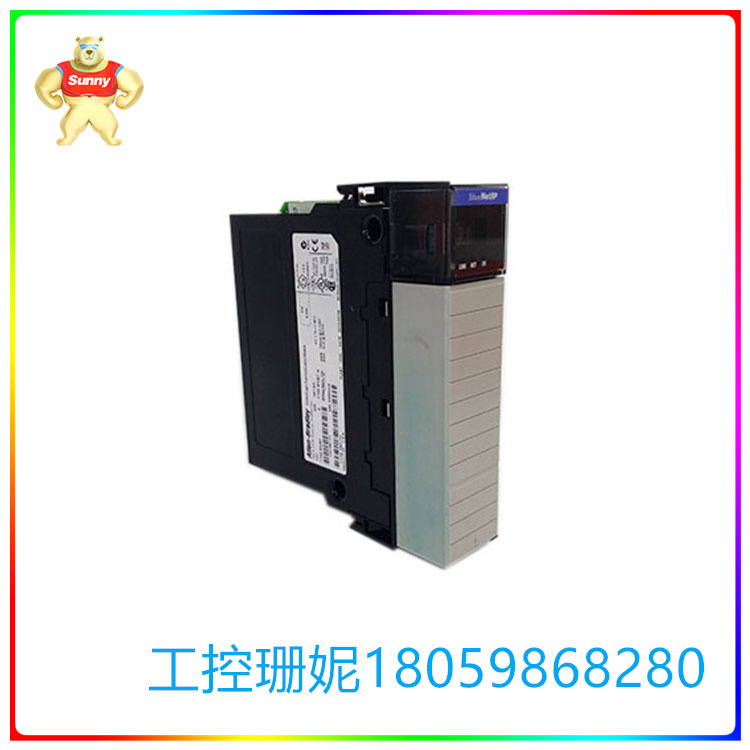

1756-ENBT A 通信模块 支持以太网 I/P 通信协议

【产品详情】

 1756-ENBT 是支持以太网 I/P 通信协议的 Allen-Bradley 通信模块。该模块有一 （1） 个 RJ45 端口，用于连接到以太网。该以太网模块在半双工或全双工模式下支持 10/100 Mbps 传输速度。

Allen-Bradley 1756-ENBT ControlLogix 以太网/IP 桥接模块是一种铜缆通信模块，用于通过以太网连接传输大量数据。该模块可以处理 64 个 TCP 和 128 个 CIP 连接，通信速率为 10 / 100 Mbps。该模块支持高速处理器联锁、控制分布式 I/O，以及使用以太网/IP 网络作为骨干网路由到不同 NetLinx 网络上的设备。这些功能允许用户在一个以太网/IP 网络中控制、配置和收集数据。反过来，这允许用户削减维护和支持成本，然后简化他们的网络架构，因为运行他们的应用程序可能需要更少的网络。

1756-ENBT 支持网络。通过标准 Web 浏览器进行模块的设置和内部诊断，例如 IP 流量、TCP、UDP、冲突直方图、连接管理等。用户还可以获取有关模块修订版、IP、子网、网关和以太网地址、模块正常运行时间、供应商、代码信息、诊断信息、名称服务器、启动状态、1756-L1 处理器模式信息和网络风暴信息的信息。1756-ENBT 模块在 5.1 伏直流电下的电流消耗为 700 毫安。另一方面，对于 3 伏直流电，它的电流消耗为 24 毫安。1756-ENBT 的功耗为 3.7 瓦，散热为 12.6 BTU/小时。当放置在远程 I/O 机箱中时，它还可以充当远程 I/O 适配器。这允许用户收集和配置数据，以及远程控制 ControlLogix 模块，特别是输入、输出、模拟或专用模块。请注意，1756-ENBT 没有旋转开关。1756-ENBT 还向后兼容。

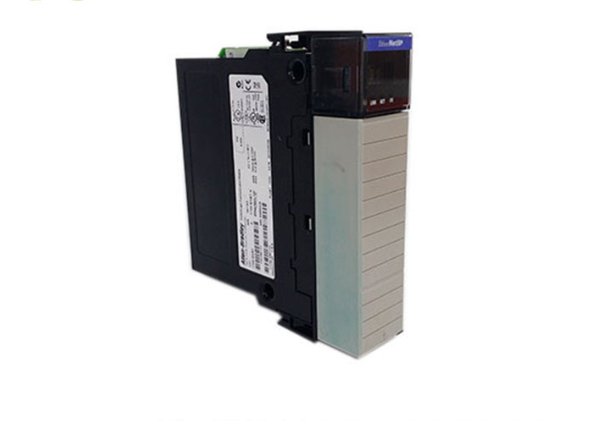

1756-ENBT A 通信模块 支持以太网 I/P 通信协议

【英文介绍】

The 1756-ENBT is an Allen-Bradley communication module that supports Ethernet I/P communication protocols. The module has one (1) RJ45 port for connecting to Ethernet. The Ethernet module supports 10/100 Mbps transmission speeds in half-duplex or full-duplex mode.

The Allen-Bradley 1756-ENBT ControlLogix Ethernet /IP Bridge module is a copper cable communication module for transferring large amounts of data over an Ethernet connection. The module can handle 64 TCP and 128 CIP connections at a communication rate of 10/100 Mbps. The module supports high-speed processor interlocking, controlling distributed I/O, and routing devices to different NetLinx networks using Ethernet /IP networks as the backbone. These features allow users to control, configure, and collect data within an Ethernet /IP network. This, in turn, allows users to cut maintenance and support costs and then simplify their network architecture, as less network may be required to run their applications.

1756-ENBT Support Network. Setup and internal diagnostics of modules such as IP traffic, TCP, UDP, conflict histograms, connection management, etc. via a standard Web browser. Users can also get information about module revisions, IP, subnets, gateway and Ethernet addresses, module uptime, vendors, code information, diagnostics information, name servers, startup status, 1756-L1 processor mode information, and network storm information. The 1756-ENBT module has a current consumption of 700 mA at 5.1 volts DC. On the other hand, for 3 volts of DC, its current consumption is 24 mA. The 1756-ENBT has a power consumption of 3.7 watts and a heat dissipation of 12.6 BTU/ hour. When placed in a remote I/O case, it can also act as a remote I/O adapter. This allows users to collect and configure data, as well as remotely control ControlLogix modules, especially input, output, analog, or dedicated modules. Please note that 1756-ENBT does not have a rotary switch. The 1756-ENBT is also backward compatible.

1756-ENBT A 通信模块 支持以太网 I/P 通信协议
