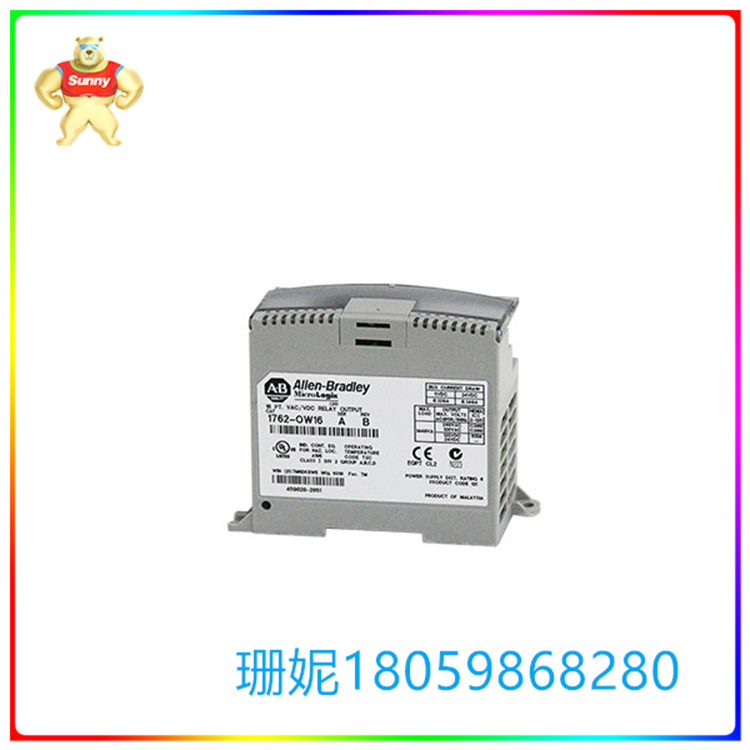

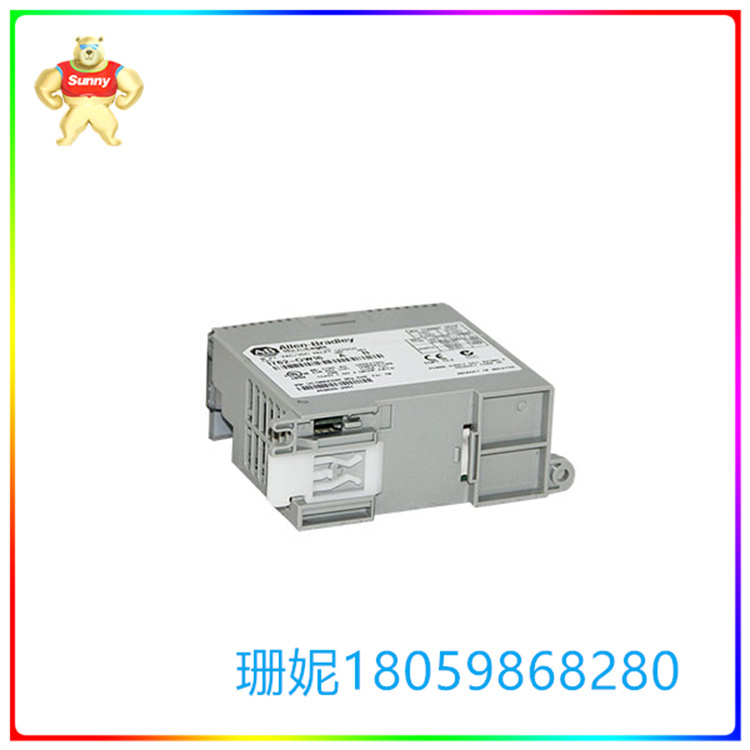

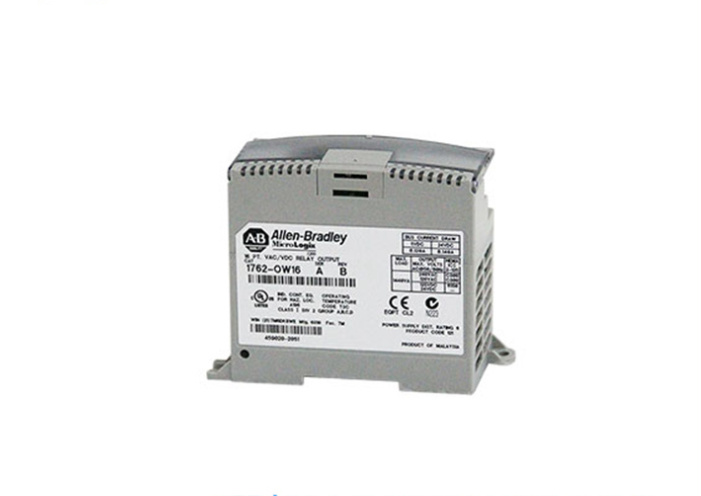

Allen-Bradley 1762-OW16 继电器输出扩展模块

Allen-Bradley 1762-OW16 继电器输出扩展模块 【产品详情】 1762-OW16 是 MicroLogix 扩展模块。该模块有十六 (16) 个继电器输出通道。该模块设计用于 5 - 265VAC 和 5 - 125V DC 的工作电压范围。模块兼容 MicroLogix 1100 / 1200 和 1400 控制器。1762-OW16 是一款 MicroLogix 继电器输出

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

Allen-Bradley 1762-OW16 继电器输出扩展模块





【产品详情】



1762-OW16 是 MicroLogix 扩展模块。该模块有十六 (16) 个继电器输出通道。该模块设计用于 5 - 265VAC 和 5 - 125V DC 的工作电压范围。模块兼容 MicroLogix 1100 / 1200 和 1400 控制器。


1762-OW16 是一款 MicroLogix 继电器输出扩展模块。该模块用于增强 MicroLogix 1100、1200 和 1400 可编程逻辑控制器 (PLC) 的输出能力。它兼容用于电气负载的通电和断电。


该模块具有十六 (16) 个继电器触点输出,可在 24-125VDC 和 120-240 VAC 电压范围内运行。对于ON到OFF和OFF到ON的转换,每个输出通道的信号延迟时间为10 ms。模块每个点的额定连续电流为 2.5 A,每个公共端的连续电流为 8A,每个模块的连续电流为 16A。1762-OW16 有两 (2) 个输出组,每个组由八 (8) 个通道组成。第 0 组由输出 0-7 组成,而第 1 组由输出 8-15 组成。


建议将浪涌抑制器安装在感性负载上。这种浪涌抑制器可以为感性负载的高浪涌电流提供保护,从而有助于延长模块的使用寿命。


当与 MixroLogix 1100 控制器一起使用时,最多可以安装此模块的四 (4) 个实例。如果与 MicroLogix 1200 一起使用,则最多支持六 (6) 个模块,而与 MicroLogix 7 一起使用时允许七 (1500) 个模块。


该模块的物理尺寸为 90 x 40.4 x 87 毫米(3.54 x 1.59 x 3.43 英寸)包括安装片在内的高度为 110 毫米(4.33 英寸)。安装取决于基本控制器。作为 MicroLogix 1100 / 1200 和 1400 控制器的标准配置,该模块支持直接面板安装的 DIN 导轨。


Allen-Bradley 1762-OW16 模块是一个继电器输出模块,可以使用直流电源和交流电源运行。它的设计工作电压范围为 5 至 265 伏交流电和 5 至 125 伏直流电。1762-OW16 有 16 个输出,最大散热为 6.1 瓦,外壳类型等级为 IP20。该模块的重量约为 0.63 磅。该模块的最大总线电流消耗在 140 伏直流电压下为 5 mA,在 180 伏直流电压下为 24 mA。1762-OW16 的最小导通电流为 10 mA。每点最大连续电流为2.5A,公共点最大连续电流为8A,而每个模块的最大连续电流为16A。1762-OW16 的最大受控负载为 1440 VA。


1762-OW16 模块具有 4 个继电器触点额定值。继电器输出的额定电压为 24 伏直流电、125 伏直流电、120 伏交流电和 240 伏交流电。对于 240 至 120 伏交流电,每点的最大连续电流为 2.5 安培。对于 125 伏和 24 伏直流电,每个点的最大连续电流为 2 安培和 1 安培。 在外部感性负载上连接浪涌抑制器设备将延长继电器触点的使用寿命。有关更多详细信息,请参阅 Allen-Bradley 的接线指南。请记住,静电放电会损坏 1762-OW16 的半导体。




Allen-Bradley 1762-OW16 继电器输出扩展模块





英文介绍



The 1762-OW16 is a MicroLogix expansion module. The module has sixteen (16) relay output channels. The module is designed for operating voltage ranges from 5-265VAC and 5-125V DC. Modules are compatible with MicroLogix 1100/1200 and 1400 controllers.


The 1762-OW16 is a MicroLogix relay output expansion module. This module is used to enhance the output capabilities of MicroLogix 1100, 1200 and 1400 programmable logic controllers (PLCS). It is compatible for powering on and off electrical loads.


The module has sixteen (16) relay contact outputs and operates in the 24-125VDC and 120-240 VAC voltage ranges. For ON-to-OFF and off-to-on conversions, the signal delay time for each output channel is 10 ms. The continuous current rating of each point of the module is 2.5 A, the continuous current of each common end is 8A, and the continuous current of each module is 16A. The 1762-OW16 has two (2) output groups, each consisting of eight (8) channels. Group 0 consists of outputs 0-7, while group 1 consists of outputs 8-15.


It is recommended to install the surge suppressor on the inductive load. This surge suppressor provides protection against the high surge current of inductive loads, thereby helping to extend the service life of the module.


When used with the MixroLogix 1100 controller, up to four (4) instances of this module can be installed. Up to six (6) modules are supported if used with the MicroLogix 1200, while seven (1500) modules are allowed when used with the MicroLogix 7.


The module has a physical dimension of 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 inches) and a height of 110 mm (4.33 inches) including mounting pieces. Installation depends on the base controller. As standard with the MicroLogix 1100/1200 and 1400 controllers, the module supports DIN rails for direct panel mounting.


The Allen-Bradley 1762-OW16 module is a relay output module that can operate on both DC and AC power supplies. It is designed to operate in a voltage range of 5 to 265 volts AC and 5 to 125 volts DC. The 1762-OW16 has 16 outputs, a maximum heat dissipation of 6.1 watts, and a housing type rating of IP20. The module weighs about 0.63 pounds. The maximum bus current consumption of the module is 5 mA at 140 volts DC and 24 mA at 180 volts DC. The minimum conduction current of the 1762-OW16 is 10 mA. The maximum continuous current at each point is 2.5A, the maximum continuous current at common points is 8A, and the maximum continuous current at each module is 16A. The 1762-OW16 has a maximum controlled load of 1440 VA.


The 1762-OW16 module has 4 relay contact ratings. The rated voltages of the relay output are 24 volts DC, 125 volts DC, 120 volts AC, and 240 volts AC. For 240 to 120 volts AC, the maximum continuous current per point is 2.5 amps. For 125 volts and 24 volts DC, the maximum continuous current at each point is 2 amps and 1 amp. Attaching a surge suppressor device to an external inductive load will extend the service life of relay contacts. For more details, see Allen-Bradley's wiring guide. Keep in mind that electrostatic discharge can damage the 1762-OW16's semiconductors.
