Allen-Bradley 2711-K5A2 面板视图标准操作终端

【产品详情】

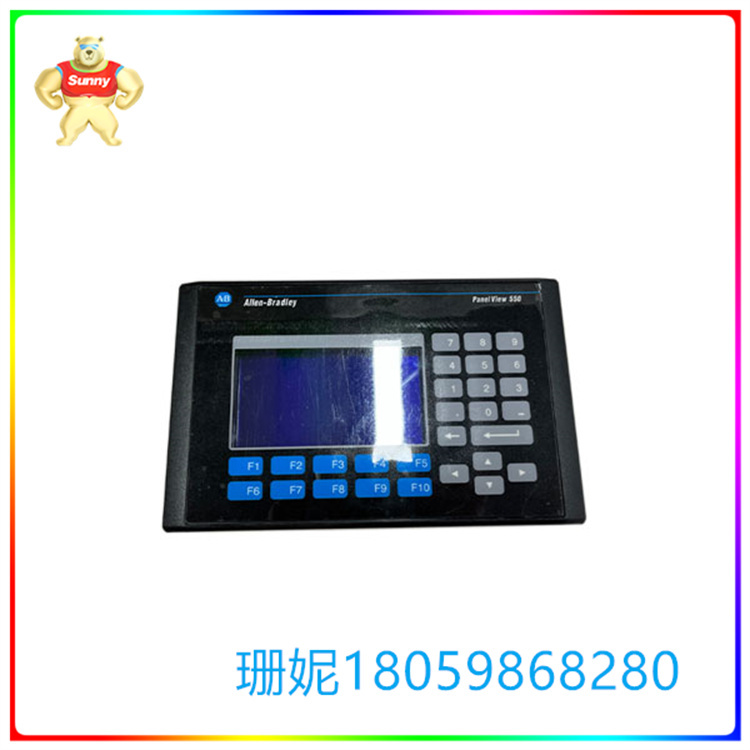

Allen-Bradley 2711-K5A2 是 Panelview 550 标准操作终端。该操作终端由外部 85-264V AC 电源供电，并具有带有嵌入式 DH5 通信端口的 5.485 英寸单色显示屏。它具有十 （10） 个功能键和一个键盘操作界面。

2711-K5A2 是一款 Allen-Bradley PanelView 标准操作终端，具有集成的键盘输入接口、显示区域、通信端口和内部存储器。该电子设备具有紧凑的组件，支持齐平安装到工业级外壳。

2711-K5A2 的键盘输入界面由十 （10） 个功能键组成，可接受局部和全局分配，使任何按钮可用于特定功能或接受变量分配。除了功能键外，键盘组件还设置了一个数字键，用于输入数字变量和常量;导航键用于突出显示屏幕中显示的相应对象。

该操作终端还具有5.5英寸单色屏幕，显示区域为120 x 60毫米（4.75 x 2.38英寸），分辨率为256 x 128像素。它配有可更换的内部背光，设计运行时间长达 100,000 小时。

这缩短并最大限度地利用了工程时间，因为内部测试也可以在不需要物理硬件的情况下完成。

2711-K5A2具有170KB的内部随机存取存储器（RAM）和大小为240KB的非易失性存储器，用于保存应用程序和系统文件，如趋势，日志和用户手册。

2711-K5A2 安装在 NEMA 或 IP 防护等级的外壳上，可提供足够的防水、灰尘、污垢、腐蚀性和爆炸性物质防护。将 2711-K5A2 安装在 NEMA 12/13 型、4X（仅限室内使用）、IP54 和 IP65 或任何同等额定值的外壳中。

2711-K5A2 是 Allen-Bradley PanelView 550 终端。这种过时的操作终端允许用户与其他机器连接。此 PanelView 设备具有 5.5 英寸。单色液晶屏蓝色模式屏幕。它有一个嵌入式DH-485通信端口。用户可以使用位于设备前面板的嵌入式键盘来控制设备。

其DH-485通信端口可以连接到SLC和MicroLogix控制器，DH-485网络或壁挂式电源。2711-K5A2 终端使用 120 伏交流电源供电。本机具有 170 KB 的应用程序运行时内存和 240 KB 的非易失性内存。本机的内部背光更换部件号为 2711-NL1。终端的大致发货重量和尺寸分别为 6 磅和 14 x 11 x 8 英寸。

Allen-Bradley 2711-K5A2 面板视图标准操作终端

【英文介绍】

Allen-Bradley 2711-K5A2 is a Panelview 550 standard operating terminal. The operating terminal is powered by an external 85-264V AC supply and features a 5.485-inch monochrome display with an embedded DH5 communication port. It has ten (10) function keys and a keyboard operating interface.

The 2711-K5A2 is an Allen-Bradley PanelView standard operating terminal with an integrated keyboard input interface, display area, communication port and internal memory. The electronics feature compact components that support flush mounting into an industrial-grade housing.

The 2711-K5A2 keyboard input interface consists of ten (10) function keys that accept local and global assignments, making any button available for a specific function or accepting variable assignments. In addition to function keys, the keyboard component also has a numeric key for entering numeric variables and constants; Navigation keys are used to highlight the corresponding object displayed on the screen.

The operating terminal also features a 5.5-inch monochrome screen with a display area of 120 x 60 mm (4.75 x 2.38 inches) and a resolution of 256 x 128 pixels. It comes with a replaceable internal backlight and is designed for up to 100,000 hours of operation.

This shortens and maximizes engineering time, as internal testing can also be done without the need for physical hardware.

The 2711-K5A2 has 170KB of internal random access memory (RAM) and 240KB of non-volatile memory in size for holding application and system files such as trends, logs, and user manuals.

The 2711-K5A2 is mounted on a NEMA or IP rated housing and provides adequate protection against water, dust, dirt, corrosive and explosive substances. Install the 2711-K5A2 in NEMA Type 12/13, 4X (indoor use only), IP54 and IP65 or any equivalent rated housing.

The 2711-K5A2 is an Allen-Bradley PanelView 550 terminal. This outdated operating terminal allows users to connect to other machines. This PanelView device is 5.5 inches. Monochrome LCD screen Blue mode screen. It has an embedded DH-485 communication port. Users can control the device using an embedded keyboard located on the front panel of the device.

Its DH-485 communication port can be connected to SLC and MicroLogix controllers, DH-485 networks or wall-mounted power supplies. The 2711-K5A2 terminal is powered by a 120 volt AC supply. Native has 170 KB of application runtime memory and 240 KB of non-volatile memory. The internal backlight replacement part number of this unit is 2711-NL1. The approximate shipping weight and dimensions of the terminal are 6 pounds and 14 x 11 x 8 inches, respectively.

Allen-Bradley 2711-K5A2 面板视图标准操作终端
