Allen-Bradley  1769-L32C  网络配置数据

【产品详情】

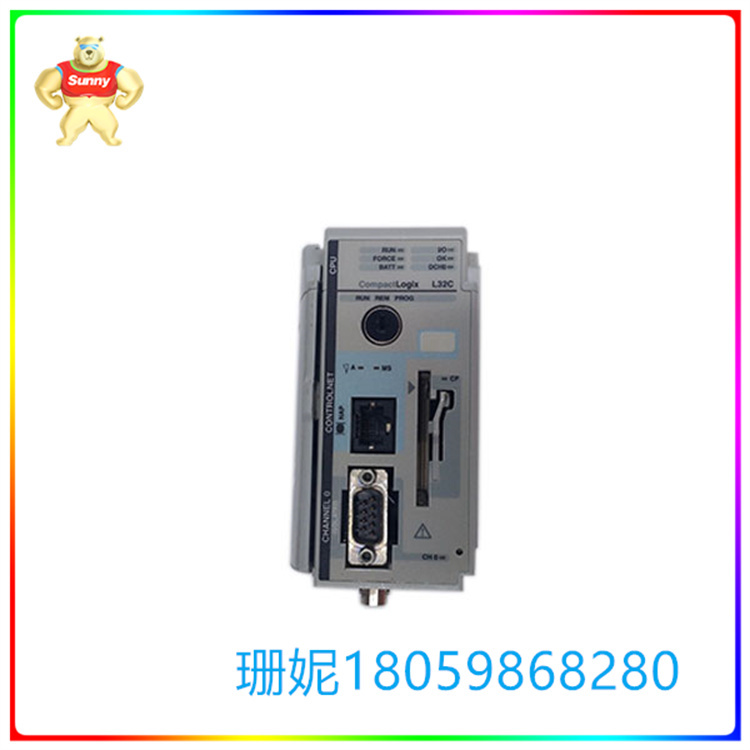

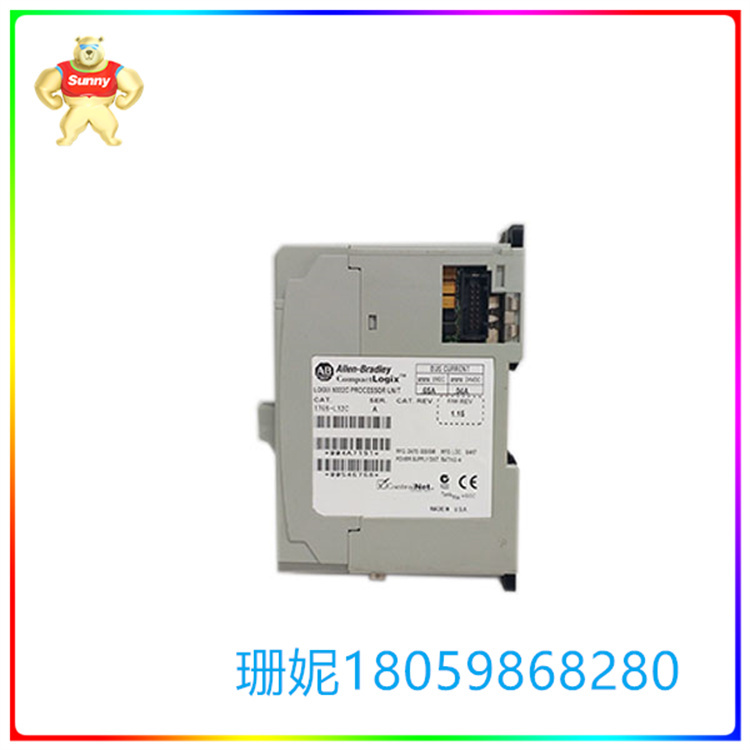

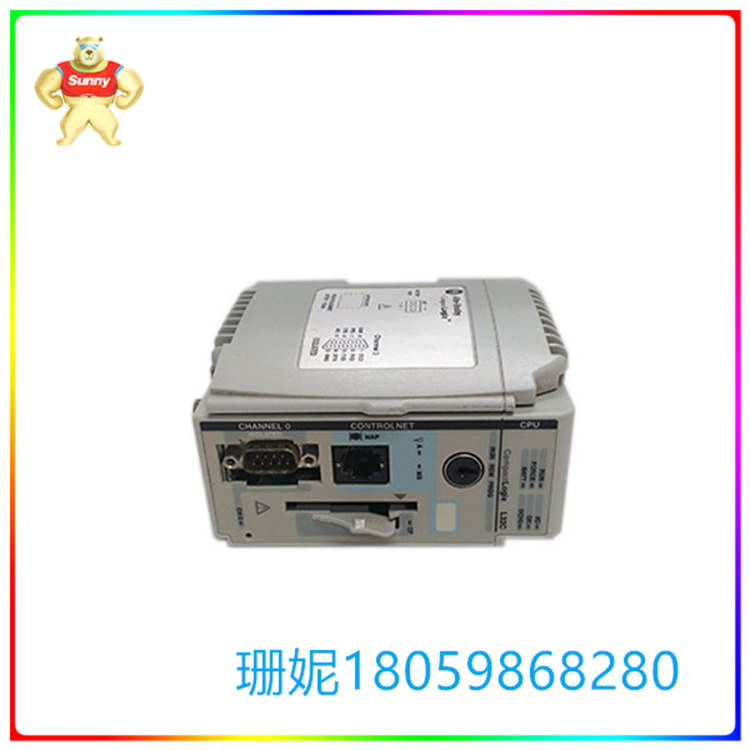

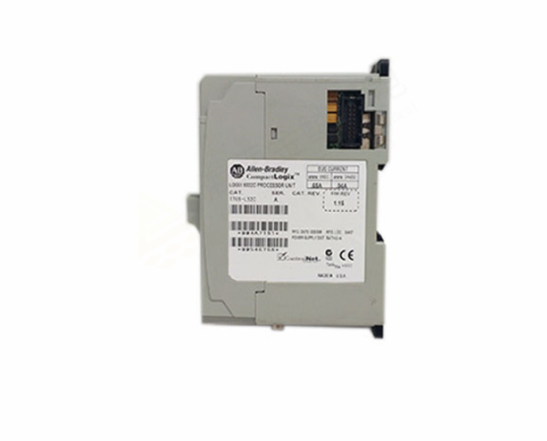

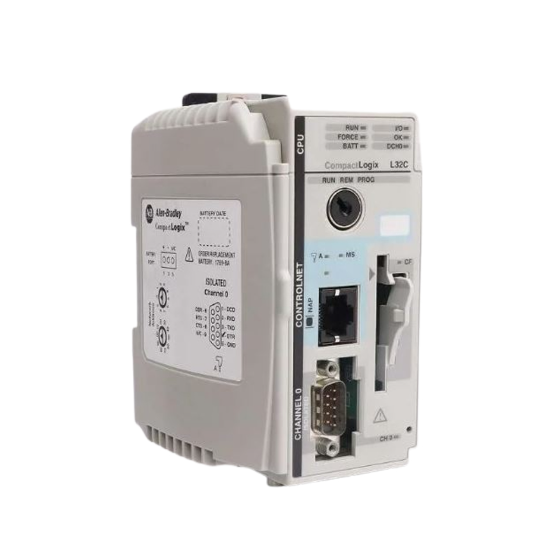

1769-L32C是由Allen-Bradley/Rockwell Automation制造的CompactLogix控制器。该控制器很重要，因为每个 ControlNet 网络至少需要一个类似的模块，该模块能够在启动过程后存储参数和网络配置数据。1769-L32C 可以存储数据，同时作为备份工作。所有这些操作都是自动的。Allen-Bradley 1769-L32C CompactLogix 控制器带有不同的通信端口，分别是通道 232 上的 RS-4、NAP 和 ControlNet 端口。它还使用750 KB的内存，并具有16个I / O模块。Allen-Bradley 1769-L32C CompactLogix 控制器具有 3 个 I/O 组，背板电流在 650 伏直流时为 5 毫安，在 40 伏直流时为 24 毫安。1769-L32C 逻辑模块的功耗为 4.21 瓦。Allen-Bradley 1769-L32C CompactLogix 控制器的电池只能由 Allen-Bradley 1769-BA 电池更换。

Allen-Bradley 1769-L32C CompactLogix 控制器的工作温度范围为 0 至 60 摄氏度，相对湿度为 5% 至 95%。为了延长模块的使用寿命，保持合适的温度非常重要。像这样的模块很容易被腐蚀和损坏。Allen-Bradley 1769-L32C CompactLogix 控制器提供状态指示器，显示模块的当前状态。这些指示灯在亮起时可以是稳定的、交替的或闪烁的。这 3 种类型的灯具有不同的含义，是理解和解决控制器可能遇到的不同问题的好方法。断电、机架上的模块放错位置或主要和次要故障等情况可以通过这些状态指示灯显示。Allen-Bradley 1769-L32C CompactLogix控制器的重量约为0.32公斤。1769-L32C 逻辑模块支持 100 个连接，可以在 CompactFlash 存储器中保存和恢复用户应用程序。

Allen-Bradley  1769-L32C  网络配置数据

【英文介绍】

The 1769-L32C is a CompactLogix controller manufactured by Allen-Bradley/Rockwell Automation. This controller is important because each ControlNet network requires at least one similar module that is capable of storing parameters and network configuration data after the startup process. The 1769-L32C can store data and work as a backup. All of these operations are automatic. The Allen-Bradley 1769-L32C CompactLogix controller comes with different communication ports, namely RS-4, NAP, and ControlNet ports on channel 232. It also uses 750 KB of memory and has 16 I/O modules. The Allen-Bradley 1769-L32C CompactLogix controller has 3 I/O groups with backplane current of 5 mA at 650 volts DC and 24 MA at 40 volts DC. The 1769-L32C logic module has a power consumption of 4.21 watts. The battery of the Allen-Bradley 1769-L32C CompactLogix controller can only be replaced by the Allen-Bradley 1769-BA battery.

The Allen-Bradley 1769-L32C CompactLogix controller operates in a temperature range of 0 to 60 degrees Celsius and relative humidity of 5 to 95 percent. In order to extend the service life of the module, it is very important to maintain the right temperature. Modules like this are easily corroded and damaged. The Allen-Bradley 1769-L32C CompactLogix controller provides a status indicator that shows the current status of the module. These indicators can be steady, alternating, or blinking when lit. These 3 types of lamps have different meanings and are a good way to understand and solve the different problems that your controller may encounter. Power outages, misplaced modules on the rack, or major and minor failures can be indicated by these status indicators. The Allen-Bradley 1769-L32C CompactLogix controller weighs approximately 0.32 kg. The 1769-L32C logic module supports 100 connections and can save and restore user applications in CompactFlash memory.

Allen-Bradley  1769-L32C  网络配置数据
