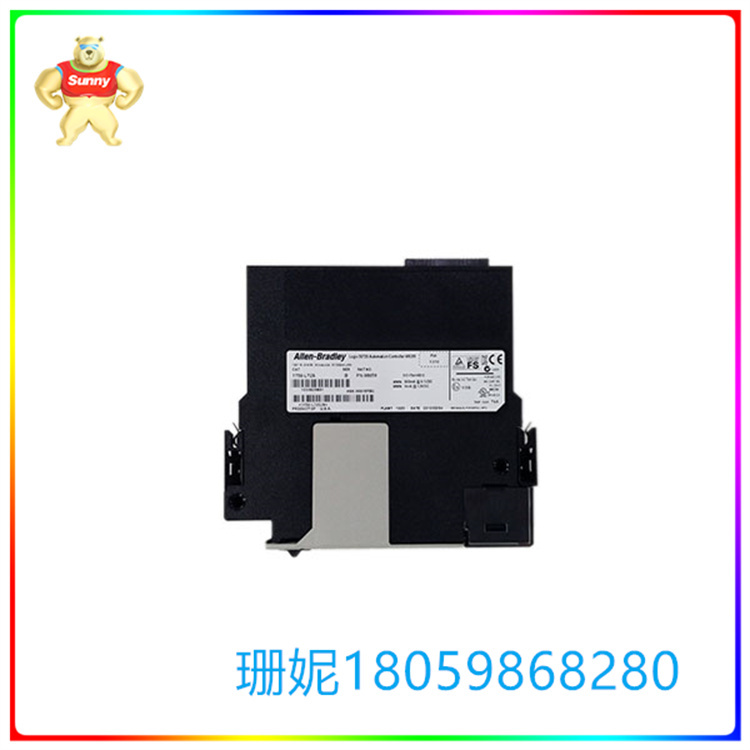

Allen-Bradley 1756-L72S 具有 4 兆字节用户存储器

【产品详情】

 1756-L72S 是 5570 GuardLogix 可编程自动化控制器 （PAC） 的一部分。该控制器具有标准和安全功能，并具有 4 兆字节用户存储器、2 兆字节安全存储器、0.98 兆字节 I/O 存储器和 1 千兆字节非易失性存储器的嵌入式存储器容量，由控制器随附的 1784-SD1 提供。它还带有 1 个 USB 通信端口，用于本地配置控制器。它能够处理多达 128,000 个离散 I/O 和 4000 个模拟 I/O 存储器。该控制器已通过安全完整性等级 （SIL） 3 认证。

Allen-Bradley 1756-L72S 是一款 GuardLogix 5570 控制器，是 Logix5000 系列控制器的一部分。它是具有安全控制功能的ControlLogix控制器。它是一种双处理器解决方案，必须与 1756-L7SP 安全模块配合使用，才能满足 SIL 3 或 Cat 的要求。4/PLe 安全标准。安全合作伙伴控制器是自动配置的，使单个项目受益。它具有强大的处理能力和运动速度以及高性能逻辑。它有一个用于通信的USB端口。它可以支持多达 500 个控制器连接。1756-L72S 控制器具有 4MB 用户内存、2MB 安全内存和 0.98MB I/O 内存。它可以支持 128,000 个数字 I/O 和 4000 个模拟 I/O。它在 5.1V DC 时吸收 2mA 电流，在 800.5V DC 时吸收 1mA 电流。它的功耗为2.5W，热耗散为8.5 BTU/hr。它重 0.55 磅，具有 30V（连续）的隔离电压，用于基本绝缘。它可以安装在 ControlLogix 1756 机箱的任何插槽中，多个控制器也可以安装在同一机箱中。为了安全通信，它使用ControlNet，DeviceNet或EtherNet/IP网络。1756-L72S 控制器可以通过背板或通过 I/O 链路控制或监视 I/O。对于控制器诊断，它有一个提供运行时信息的前面板显示屏。它使用储能模块运行，这意味着不需要锂电池。1 GB （1784-SD1） 安全数字卡作为可选的非易失性存储预装，可扩展至 2 GB （1784-SD2）。

Allen-Bradley 1756-L72S 是一款 5570 GuardLogix 可编程自动化控制器 （PAC）。该控制器具有标准和安全控制器功能。该控制器是主控制器，与目录号为 1756-L7SP 或 1756-L7SPK 的安全合作伙伴一起使用，以实现安全集成级别 （SIL） 类别级别 （CL） 3/性能级别 e （PLe） /Cat。4. 评级。使用 1756-L72S，与专用安全控制器不同，标准和安全项目集成在一个文件中。

1756-L72S 具有大容量标准存储器和专用安全存储器。这些内存区域相当于 4 兆字节用户存储器、2 兆字节安全存储器、0.98 兆字节的 I/O 存储器和 1 千兆字节非易失性存储器，由控制器随附的 1784-SD1 提供。它使 1756-L72S 能够连接多达 128,000 个输入和输出 （I/O） 信号，这些信号可能由 128,000 个离散 I/O 和 4000 个模拟 I/O 组成。

1756-L72S是一款环保控制器，因为它配备了现代储能模块而不是传统的锂电池，以保留随机存取存储器（RAM）。这些内存存储模块包括控制器随附的 1756-ESMCAP;1756-ESMNSE 是可拆卸的、无残留的 WallClockTime 电源备份或不可拆卸的 1756-ESMNRM，有助于防止 USB 连接和 SD 卡的使用，以帮助保护控制器。

1756-L72S 可以安装到任何标准或保形涂层的 ControlLogix 机箱上，例如 1756-A4、1756-A4K、1756-A7、1756-A7K、1756-A10、1756-A10K、1756-A13、1756-A13K、1756-A17 和 1756-A17K，以及标准电源，如 1756-PA50、1756-PA72、1756-PA72K、1756-PA75、1756-PA75K、1756-PB50、 1756-PB72、1756-PB72K、1756-PB75 和 1756-PB75K。

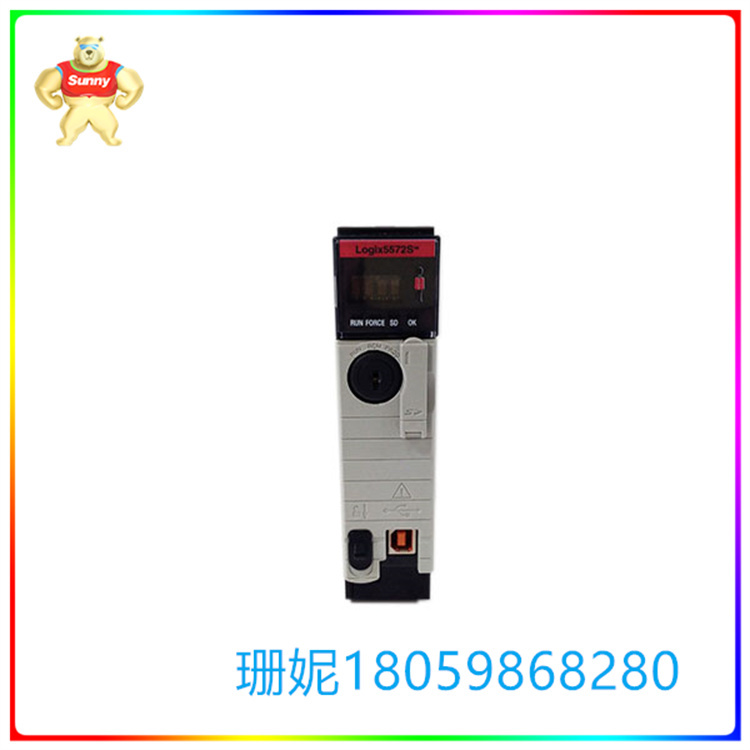

Allen-Bradley 1756-L72S 具有 4 兆字节用户存储器

【英文介绍】

The 1756-L72S is part of the 5570 GuardLogix Programmable Automation Controller (PAC). The controller has standard and safety features and an embedded memory capacity of 4 megabytes of user memory, 2 megabytes of secure memory, 0.98 megabytes of I/O memory, and 1 gigabyte of non-volatile memory, provided by the 1784-SD1 that came with the controller. It also comes with a USB communication port for configuring the controller locally. It is capable of handling up to 128,000 discrete I/O and 4,000 analog I/O memories. The controller is certified to Safety Integrity Level (SIL) 3.

The Allen-Bradley 1756-L72S is a GuardLogix 5570 controller that is part of the Logix5000 family of controllers. It is a ControlLogix controller with security controls. It is a dual-processor solution that must be used in conjunction with the 1756-L7SP safety module to meet the requirements of SIL 3 or Cat. 4/PLe Safety standard. The Security Partner controller is automatically configured to benefit individual projects. It has powerful processing power and motion speed as well as high-performance logic. It has a USB port for communication. It can support up to 500 controller connections. The 1756-L72S controller has 4MB of user memory, 2MB of security memory, and 0.98MB of I/O memory. It can support 128,000 digital I/ OS and 4,000 analog I/ OS. It absorbs 2mA current at 5.1V DC and 1mA current at 800.5V DC. It has a power consumption of 2.5W and a heat dissipation of 8.5 BTU/hr. It weighs 0.55 pounds and has an isolation voltage of 30V (continuous) for basic insulation. It can be installed in any slot in the ControlLogix 1756 case, and multiple controllers can also be installed in the same case. For secure communication, it uses ControlNet, DeviceNet, or EtherNet/IP networks. The 1756-L72S controller can control or monitor I/O through the backplane or through the I/O link. For controller diagnostics, it has a front panel display that provides runtime information. It operates using energy storage modules, which means there is no need for lithium batteries. The 1 GB (1784-SD1) secure digital card comes pre-loaded as optional non-volatile storage, expandable up to 2 GB (1784-SD2).

The Allen-Bradley 1756-L72S is a 5570 GuardLogix programmable Automation controller (PAC). The controller has both standard and safety controller functions. This controller is the master controller and is used with a security partner with directory number 1756-L7SP or 1756-L7SPK to achieve Security Integration Level (SIL) Category Level (CL) 3/ Performance Level e (PLe) /Cat. 4. Rating. With the 1756-L72S, unlike dedicated safety controllers, standards and safety items are integrated in a single file.

The 1756-L72S has a large-capacity standard memory and a dedicated security memory. These memory areas, equivalent to 4 megabytes of user memory, 2 megabytes of secure memory, 0.98 megabytes of I/O memory, and 1 gigabyte of non-volatile memory, are provided by the 1784-SD1 that came with the controller. It enables the 1756-L72S to connect up to 128,000 input and output (I/O) signals, which may consist of 128,000 discrete I/ OS and 4,000 analog I/ OS.

The 1756-L72S is an environmentally friendly controller as it is equipped with a modern energy storage module instead of a traditional lithium battery to retain random access memory (RAM). These memory storage modules include the 1756-ESMCAP that comes with the controller; The 1756-ESMNSE is either a removable, residual-free WallClockTime power backup or a non-removable 1756-ESMNRM that helps prevent USB connections and SD card use to help protect the controller.

The 1756-L72S can be mounted to any standard or conformal coated ControlLogix chassis. Examples include 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, and 1756-A17K, as well as standard power supplies, Such as 1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75 and 1756-PB75K.

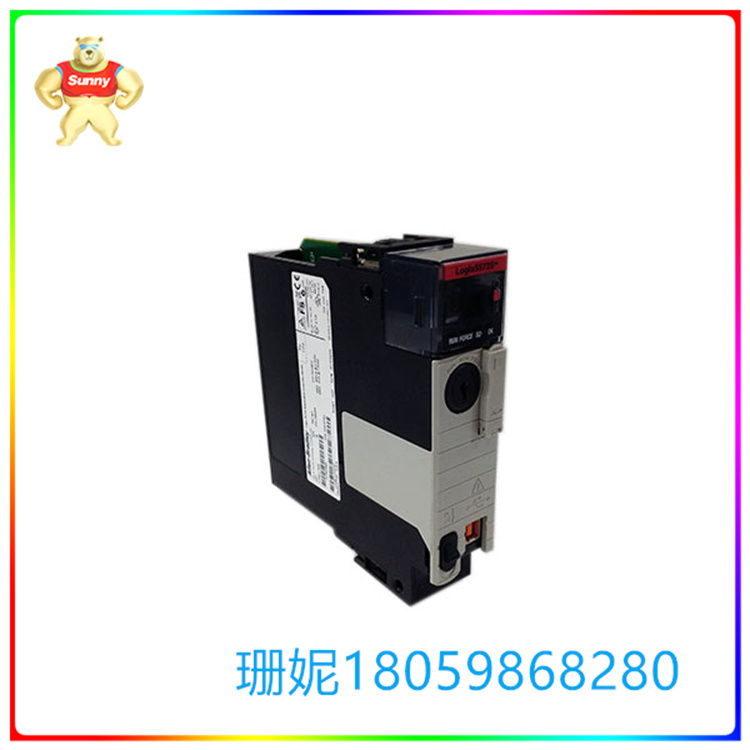

Allen-Bradley 1756-L72S 具有 4 兆字节用户存储器
