1336-MOD-L2 直流电压供电 逻辑接口板 Allen-Bradley

【产品详情】

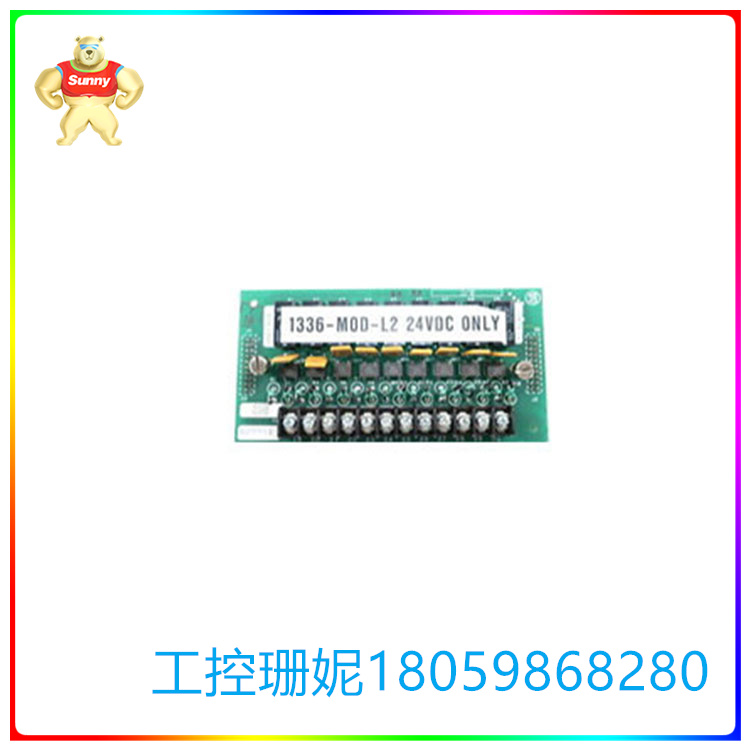

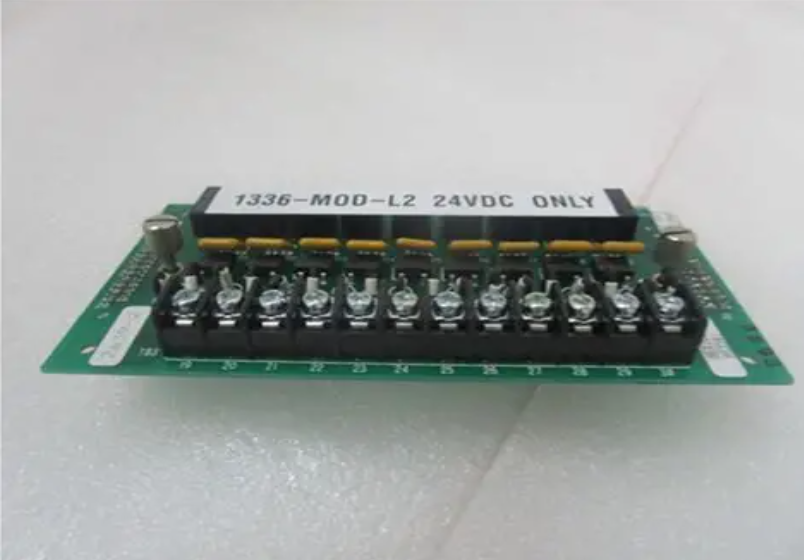

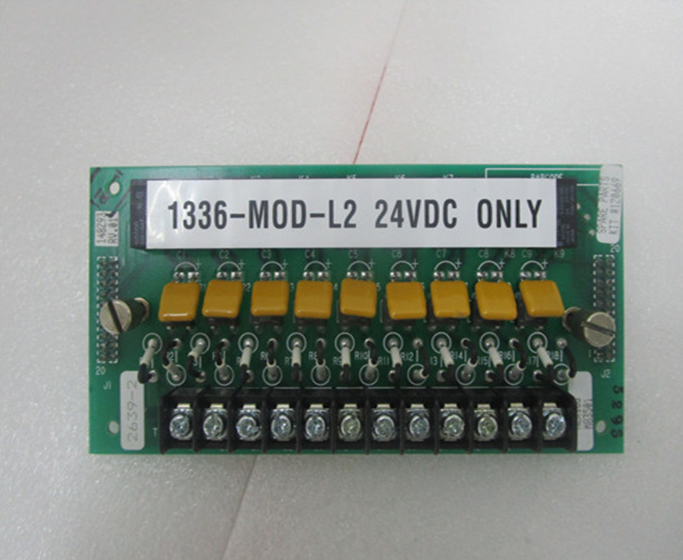

 Allen-Bradley 1336-MOD-L2 板是由罗克韦尔自动化制造的产品，由直流电压供电。Allen-Bradley 1336-MOD-L2 是一款 5V DC TTL 逻辑接口板。它与 1336 驱动器系列兼容并配合良好。该逻辑接口板始终与驱动器的触点闭合一起使用。

Allen-Bradley 1336-MOD-L2 板是由罗克韦尔自动化制造的产品，由直流电压供电。Allen-Bradley 1336-MOD-L2 是一款 5V DC TTL 逻辑接口板。它与 1336 驱动器系列兼容并配合良好。该逻辑接口板始终与驱动器的触点闭合一起使用。它还具有 NEMA Type 12 基本控制面板，带有启动、停止和 JOG 按钮、反向或正向开关以及单圈速度电位器。此驱动器和整个 1336 驱动器的 HP 额定功率范围为 3 HP 到 800 HP。

1336 系列具有不同类型的驱动器，例如 FORCE、IMPACT、CLASSIC、PLUS 和 PLUS II 驱动器。这些类型中的任何一种都可以与Allen-Bradley 1336-MOD-L2逻辑接口板一起使用。这些驱动器还配备了 UL 面板识别以及不同的通信和 I/O 端口。其中一些是模拟I / O，一些是增强型DeviceNet端口，一些是RS232 / 422 / 485端口，一些是DeviceNet端口，一些是单点RIO。

1336 系列驱动器以及 Allen-Bradley 1336-MOD-L2 逻辑接口板具有电机过载、输出短路、输出接地故障、过压和欠压保护等安全功能。此外，这些驱动器的硬件使能器位于驱动器的非可编程输入端，精确地位于端子 30。一般性能应用最适合与 PLUS、PLUS II 和 CLASSIC 1336 驱动器配合使用。另一方面，高性能应用最适合与 FORCE 和 IMPACT 1336 驱动器配合使用。

 1336-MOD-L2 直流电压供电 逻辑接口板 Allen-Bradley

【英文介绍】

The Allen-Bradley 1336-MOD-L2 board is a product manufactured by Rockwell Automation and is powered by DC voltage. Allen-Bradley 1336-MOD-L2 is a 5V DC TTL logical interface board. It is compatible and works well with the 1336 drive family. The logical interface board is always used with the contact closure of the drive.

The Allen-Bradley 1336-MOD-L2 board is a product manufactured by Rockwell Automation and is powered by DC voltage. Allen-Bradley 1336-MOD-L2 is a 5V DC TTL logical interface board. It is compatible and works well with the 1336 drive family. The logical interface board is always used with the contact closure of the drive. It also features the NEMA Type 12 basic control panel with start, stop and JOG buttons, reverse or forward switches, and a single-turn speed potentiometer. The HP rating for this drive and the entire 1336 drive ranges from 3 HP to 800 HP.

The 1336 series has different types of drives, such as FORCE, IMPACT, CLASSIC, PLUS, and PLUS II drives. Any of these types can be used with the Allen-Bradley 1336-MOD-L2 logical interface board. These drives are also equipped with UL panel recognition and different communication and I/O ports. Some of them are analog I/O, some are enhanced DeviceNet ports, some are RS232/422/485 ports, some are DeviceNet ports, and some are single-point RIOs.

The 1336 series driver and Allen-Bradley 1336-MoD-L2 logic interface board have safety features such as motor overload, output short circuit, output ground fault, overvoltage and undervoltage protection. In addition, the hardware enablers for these drivers are located on the non-programmable input side of the drive, precisely at terminal 30. General performance applications are best suited for use with the PLUS, PLUS II and CLASSIC 1336 drives. High-performance applications, on the other hand, are best suited for use with FORCE and IMPACT 1336 drives.

 1336-MOD-L2 直流电压供电 逻辑接口板 Allen-Bradley
