1336-L5可调频交流变频器 该控制接口板安装在主控制板的底部

【产品详情】

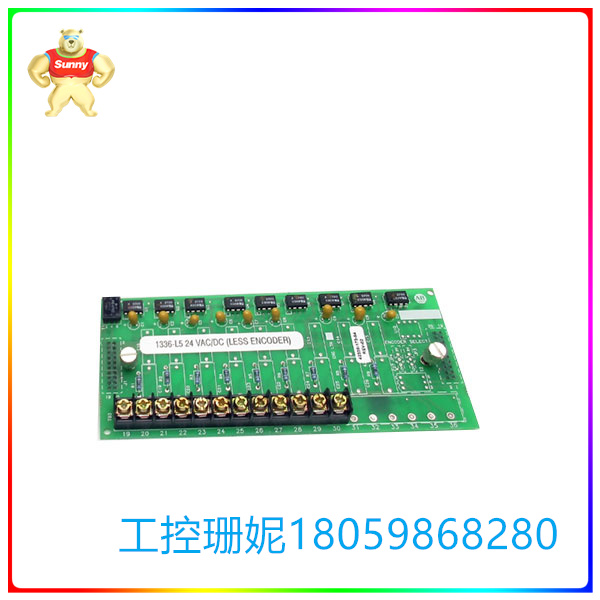

1336-L5 是控制接口板，属于 1336 系列可调频交流变频器。它是一个不带编码器的 24 VDC/VAC 逻辑板。它设计用于 1336 Plus、1336 力和 1336 冲击驱动器，特别是机架 A-H，但额定功率为 25 HP 和 30 HP 的机架 C 驱动器除外。该板允许通过触点闭合连接各种外部信号。

1336-L5 是控制接口选件卡，是 Allen-Bradley 的 1336 Plus 可调频率交流变频器的一部分。它特别兼容 1336 Plus、1336 Force 和 1336 冲击驱动器，特别是机架 A-H 驱动器，但额定功率为 25 HP 和 30 HP 的机架 C 驱动器除外。该控制接口板安装在主控制板的底部，位于TB2端子条的顶部。1336-L5 是 24 VDC / 24 VAC 逻辑板，用于接收额外的外部触点闭合信号。这些信号可以是提供高 = 真逻辑状态的任何电路，例如硬连线电路、可编程逻辑控制器 （PLC） 输出模块、辅助触点、定序器以及提供 24 VDC/VAC 额定信号电压的类似电路。1366-L5 具有十二 （12） 个螺钉式端子，设计为端接尺寸为 2.1 和 0.30 mm2（14 和 22 AWG）铜线的电线。拧紧扭矩为 0.90-1.13 牛米（8-10 磅英寸）的连接。端子 19 和 20 仅用于启动/停止功能，端子 19 可编程以接受状态、运行、前进和启动输入，而端子 20 可配置为停止/故障复位信号。其他可连接到控制接口板可用的 TB3 端子条的输入包括反向/正向;慢跑;辅助和速度选择 1-3 个输入。该接口板支持 2 线和 3 线控制接线配置。可通过控制接口板启动的其他命令包括加速、减速、同步和遍历。

Allen-Bradley 1336-L5 +24 V AC/DC 控制接口板是用于 1336 可调频率交流变频器的逻辑控制接口选件板，它提供了一种连接各种变频器命令和功能的方法。与所有其他逻辑接口板一样，该板位于主控制板的端口A上，具有9个控制输入，可以针对任何选定的功能进行编程。为了正常工作，1336-L5 逻辑控制接口板需要一个能够在高 = 真逻辑下工作的电路，并且需要 24 伏 AC/DC 用户提供的电压才能工作。该板还可以正常工作，电路能够产生不超过 8 伏直流电/10 伏交流电，低电平状态下产生 1.5/2.5 mA 电流，电压范围为 +20 至 +26 伏交流电，高电平状态下每个输入的源电流为 10 mA。1336-L5可用于对各种驱动命令和功能进行编程，其中包括2个驱动加速/减速控制输入，允许用户选择驱动使用的加速和减速时间。1336-L5 还可用于本地控制，使用户能够独占驱动逻辑，还有助于控制前驱/反向功能，该功能控制反向和正向操作。该板还可用于控制其他各种驱动功能，如使能、磁通使能、点动、数字电位计、斜坡、复位和启动功能。1336-L5 安装在主控制板上 J2 跳线的引脚 3 和 17 以及 18 和 1 的主控制板上，与 1771-OB、-OQ、-OBB、-OBD、-OBN 和 -OQ16 PLC 模块兼容。

1336-L5可调频交流变频器 该控制接口板安装在主控制板的底部

【英文介绍】

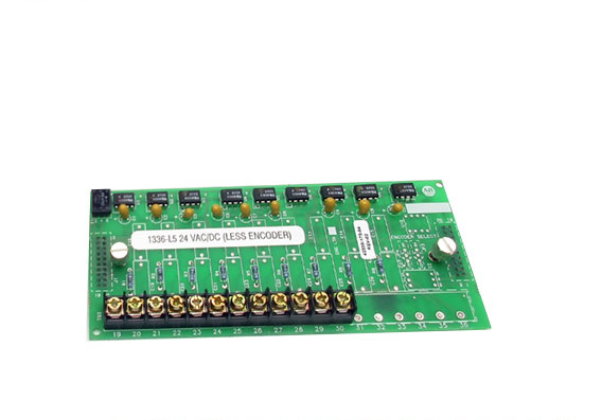

1336-L5 is a control interface board, belonging to the 1336 series of adjustable AC frequency converter. It is a 24 VDC/VAC logic board without encoder. It is designed for use with 1336 Plus, 1336 force, and 1336 impact drives, especially Rack A-H, with the exception of rack C drives rated at 25 HP and 30 HP. The board allows various external signals to be connected via contact closure.

The 1336-L5 is a control interface option card that is part of Allen-Bradley's 1336 Plus adjustable frequency AC inverter. It is particularly compatible with 1336 Plus, 1336 Force, and 1336 impact drives, especially rack A-H drives, with the exception of rack C drives rated at 25 HP and 30 HP. The control interface board is installed at the bottom of the main control board, on top of the TB2 terminal strip. The 1336-L5 is a 24 VDC / 24 VAC logic board designed to receive additional external contact closure signals. These signals can be any circuit that provides a high = true logic state, such as hardwired circuits, programmable logic controller (PLC) output modules, auxiliary contacts, sequencer, and similar circuits that provide a 24 VDC/VAC rated signal voltage. The 1366-L5 features twelve (12) screw type terminals designed to end wires with copper wires of 2.1 and 0.30 mm2 (14 and 22 AWG) in size. Tighten the connection with a torque of 0.90-1.13 nm (8-10 lb. In.). Terminals 19 and 20 are only used for start/stop functions, terminals 19 can be programmed to accept status, run, forward, and start inputs, while terminals 20 can be configured for stop/fault reset signals. Other inputs to the TB3 terminal strip available for connection to the control interface board include reverse/forward; Jogging; Assist and speed select 1-3 inputs. The LPU supports 2-wire and 3-wire control cable configuration. Other commands that can be initiated through the control interface board include acceleration, deceleration, synchronization, and traversal.

The Allen-Bradley 1336-L5 +24 V AC/DC Control interface board is a logical control interface option board for the 1336 adjustable frequency AC converter, which provides a way to connect various inverter commands and functions. Like all other logical interface boards, this board is located on port A of the main control board and has 9 control inputs that can be programmed for any selected function. In order to function properly, the 1336-L5 logic control interface board requires a circuit that can operate under high = true logic and requires a voltage supplied by a 24 volt AC/DC user to function. The board also works properly, and the circuit is capable of producing no more than 8 volts DC /10 volts AC, 1.5/2.5 mA current in the low state with a voltage range of +20 to +26 volts AC, and 10 mA source current per input in the high state. The 1336-L5 can be used to program a variety of drive commands and functions, including 2 drive acceleration/deceleration control inputs that allow the user to select the acceleration and deceleration times used by the drive. The 1336-L5 can also be used for local control, giving the user exclusive control of the drive logic, and also helps to control the front/reverse function, which controls both reverse and forward operations. The board can also be used to control various other drive functions such as enable, flux enable, point, digital potentiometer, ramp, reset, and start functions. The 1336-L5 is installed on the main control board on pins 3 and 17 of the J2 jumper and on the main control board on 18 and 1 and is compatible with the 1771-OB, -OQ, -OBB, -OBD, -OBN and -OQ16 PLC modules.

1336-L5可调频交流变频器 该控制接口板安装在主控制板的底部
