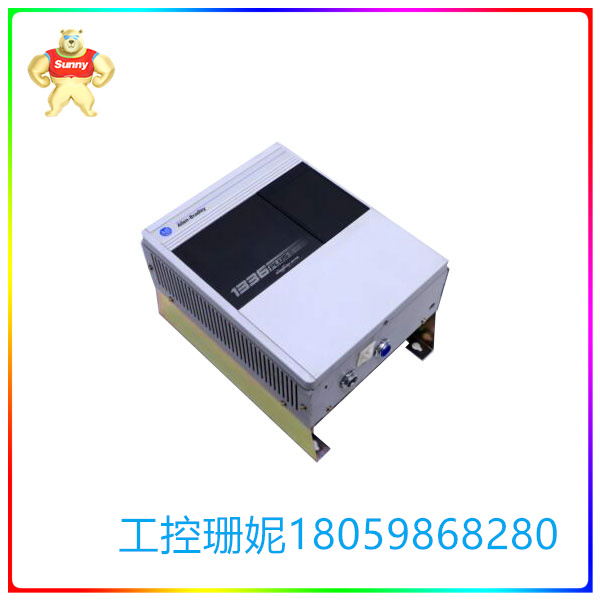

1336F-BRF15-AA-EN 可调频率驱动器 框架驱动器

【产品详情】

这款由艾伦·布拉德利制造的可调频率驱动器需要 380-480V AC 或 513-620V DC 电源。此可调频率驱动器也是A1尺寸的框架驱动器。它是一个 1.2 千瓦的交流驱动器，是一个 1.5 马力的驱动器。此VFD带有英语。此外，此VFD具有IP 20（NEMA 1）外壳。

Allen-Bradley 1336S-BRF15-AA-EN 是一款可调频率交流变频器。它是 1336S PLUS 系列的产品之一，旨在为三相感应电机带来最佳的速度控制和软启动。它使用获得专利的无传感器矢量算法来实现这种控制。它的一大特点是能够提供交流和直流电压（380 至 480 伏交流或 513 至 620 伏直流电压）。它只能控制产生不超过1.5马力（1.2kW）的较小尺寸电机。1336S-BRF15-AA-EN 输出 2.8 安培电流。它采用 IP20 （NEMA 1） 外壳，因此您必须记住在具有更高 IP 等级的电气柜内保护此设备。

Allen-Bradley 1336S-BRF15-AA-EN 提供带显示屏的 HMI，便于对设备进行编程和故障排除。此功能支持高级状态和故障报告。每次启动设备时都会启动故障检查例程。该装置还具有MOV以保护其免受浪涌的影响。框架尺寸尺寸（框架“A1”尺寸）为 215.9 x 290 x 160.0 毫米（8.5 x 11.42 x 6.3 英寸）。此商品的重量约为 4.31 千克（9.5 磅）。此交流变频器采用风扇冷却。风扇位于驱动器的底部。它有助于保持驱动器的最佳温度。驱动器的环境温度应在 0 到 40 摄氏度之间波动。

1336F-BRF15-AA-EN 可调频率驱动器 框架驱动器

【英文介绍】

This tunable frequency driver, built by Alan Bradley, requires either 380-480V AC or 513-620V DC power. This adjustable frequency driver is also an A1 size frame driver. It is a 1.2 kW AC drive and is a 1.5 HP drive. This VFD is available in English. In addition, this VFD has an IP 20 (NEMA 1) housing.

Allen-Bradley 1336S-BRF15-AA-EN is an adjustable frequency AC inverter. It is part of the 1336S PLUS series, designed to bring optimal speed control and soft start to three-phase induction motors. It uses a patented sensorless vector algorithm to achieve this control. One of its main features is the ability to provide AC and DC voltages (380 to 480 volts AC or 513 to 620 volts DC). It can only be controlled to produce smaller motors that do not exceed 1.5 horsepower (1.2kW). 1336S-BRF15-AA-EN Output 2.8 amps. It comes in an IP20 (NEMA 1) housing, so you must remember to protect this device in an electrical cabinet with a higher IP rating.

Allen-Bradley 1336S-BRF15-AA-EN offers HMI with display for easy programming and troubleshooting of the device. This feature supports advanced status and fault reporting. The fault checking routine is started each time the device is started. The unit also has MOV to protect it from surges. The frame dimensions (frame "A1" dimensions) are 215.9 x 290 x 160.0 mm (8.5 x 11.42 x 6.3 in). The weight of this item is about 4.31 kg (9.5 lb). This AC inverter uses fan cooling. The fan is located at the bottom of the drive. It helps maintain the optimal temperature of the drive. The ambient temperature of the drive should fluctuate between 0 and 40 degrees Celsius.

1336F-BRF15-AA-EN 可调频率驱动器 框架驱动器
