1336-BDB-SP37C 印刷电路板栅极驱动板  PCB 套件

【产品详情】

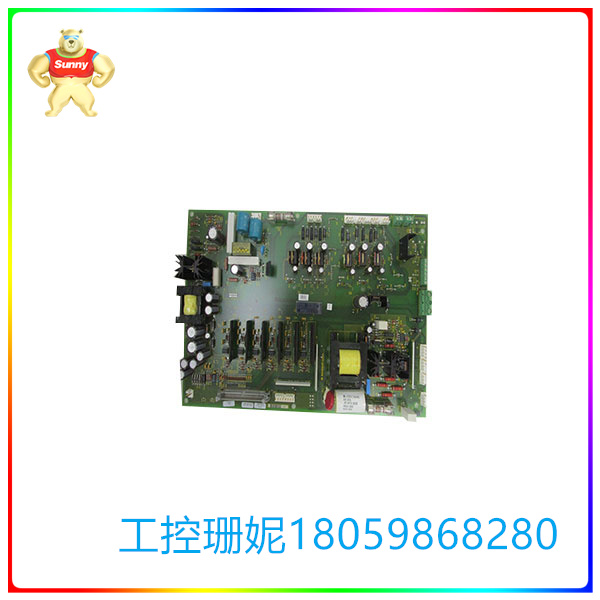

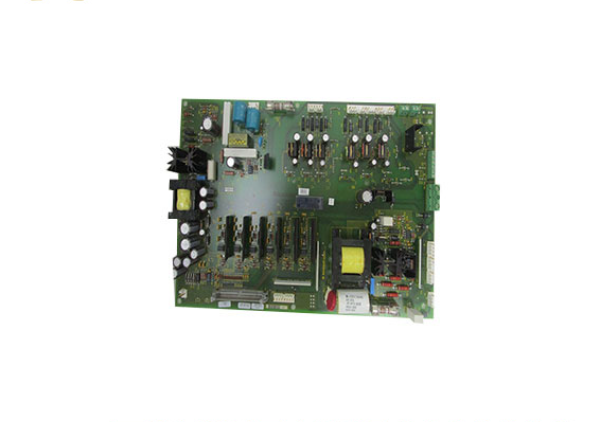

Allen-Bradley 1336-BDB-SP37C PCB 套件专为 Allen-Bradley 1336 Plus、Impact、ForceAC 变频器而设计。它与具有 1336 伏交流电压额定值和 460 马力输出额定值的 E-Frame 150 驱动器兼容。

Allen-Bradley 1336-BDB-SP37C PCB（印刷电路板）是已停产的栅极驱动板。它是属于 Allen-Bradley 1336（力、冲击、Plus、Plus II 和 REGEN）驱动组件系列的替换部件。1336-BDB-SP37C 栅极驱动板为 SCR 提供栅极控制，它位于主机箱和主机驱动器的主控制板之间。1336-BDB-SP37C 栅极驱动板向后兼容，可作为 1336-BDB-SP37-A/B 板的合适替代品。该板专为 1336 Plus II、Plus、冲击和力驱动器而设计，具有 460 伏交流输入电压额定值和 150 马力的总额定功率。此驱动器与 E 框架驱动器兼容，并且支持每个机箱额定值。

1336-BDB-SP37C PCB 组装套件包含一个备用板和安装工具。一般建议在更换电源模块后测试栅极驱动板。为了测试栅极驱动板，使用设置在电阻模式下的测试仪表测试板上的保险丝 F1 和 F3 是否开路条件。要安装 1336-BDB-SP37C PCB，请关闭电源并检查端子上的零电压（-DC 和 +DC）以及是否没有控制电压。卸下主控制板并拆下旧的栅极驱动板。将 6 个跳线连接器（J2 和 J6 到 J10）和单个风扇连接器连接到新的栅极驱动板。重新连接主控制板并恢复驱动器电源。有关安装过程的更多信息，请查看在线 Allen-Bradley 资源手册（1336 IMPACT-6.2、1336 FORCE-6.2 或 1336 PLUS-6.2）。

1336-BDB-SP37C  印刷电路板栅极驱动板  PCB 套件

【英文介绍】

Allen-Bradley 1336-BDB-SP37C PCB kit is designed for Allen-Bradley 1336 Plus, Impact, ForceAC inverters. It is compatible with E-Frame 150 drivers with a 1336 volt AC voltage rating and 460 HP output rating.

Allen-Bradley 1336-BDB-SP37C PCB (printed circuit board) is a discontinued gate drive board. It is a replacement part of the Allen-Bradley 1336 (Force, Impact, Plus, Plus II and REGEN) drive assembly family. The 1336-BDB-SP37C gate driver board provides gate control for the SCR and is located between the main case and the main control board of the host driver. The 1336-BDB-SP37C gate driver is backward compatible and can be used as a suitable replacement for the 1336-BDB-SP37-A/B board. The board is designed for the 1336 Plus II, Plus, shock and force drivers with a 460 volt AC input voltage rating and a total rated power of 150 HP. This drive is compatible with E-frame drives and supports every case rating.

The 1336-BDB-SP37C PCB Assembly kit includes a spare board and installation tools. It is generally recommended to test the grid driver after replacing the power module. To test the gate drive board, test the fuses F1 and F3 on the board for open conditions using a test meter set in resistance mode. To install a 1336-BDB-SP37C PCB, turn off the power and check for zero voltage (-DC and +DC) on the terminals and for no control voltage. Remove the main control panel and remove the old grid drive panel. Connect 6 jumper connectors (J2 and J6 to J10) and a single fan connector to the new gate driver plate. Reconnect the main control board and restore power to the driver. For more information about the installation process, check out the online Allen-Bradley Resource Manual (1336 IMPACT-6.2, 1336 FORCE-6.2, or 1336 PLUS-6.2).
