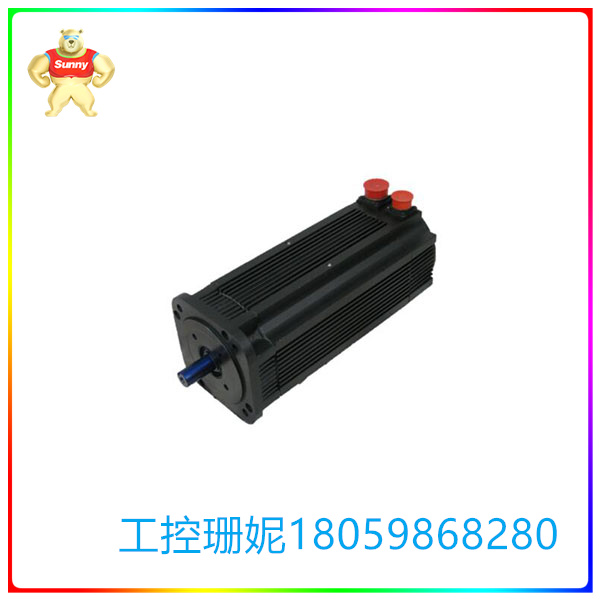

1326AB-B720E-21 伺服电机采用2英寸永磁组设计

【产品详情】

1326AB-B720E-21 伺服电机是额定转速为 3500 RPM 的艾伦-布拉德利伺服电机。它是作为Allen-Bradley 1326AB系列伺服电机的一部分设计和制造的。1326AB 系列伺服电机的应用包括金属成型、包装、汽车和机床应用。1326AB-B720E-21 伺服电机在 3000 伏和 3500 伏交流电下分别提供 380 和 460 RPM 的转速。其他电机规格包括 27.3 磅一英寸电机扭矩、6.8 千瓦功率输出和 0.14 lb-in-s2 转子惯量。1326AB-B720E-21伺服电机设计用于Allen-Bradley 1394电机控制系统。电机可与 2 个不同的 1394 轴模块一起使用。对于Allen-Bradley AM50和AM75模块，电机在一英寸的稳态失速扭矩上提供273磅，而AM518模块的最大失速扭矩为50磅，AM780模块在一英寸上为75磅。对于 AM50 和 AM75 模块，1326AB-B720E-21 伺服电机可提供 17.5 安培的连续失速电流，而 AM33 模块的最大失速电流为 2.50 安培，AM50 模块的最大失速电流为 75 安培。

1326AB-B720E-21伺服电机的机械规格包括194毫米的框架直径，20毫米的磁铁堆叠长度和102磅的电机重量。伺服电机上还提供 IEC 72-1 公制法兰和基于旋转变压器的反馈。Allen-Bradley 建议 1326AB-B720E-21 伺服电机应在电机周围空气温度不超过 104 华氏度的环境中运行。电机可以垂直朝下或朝上安装。1326AB-B720E-21伺服电机的挤压铝制外壳使其具有改进的传热。电机的环保等级为IP 65。

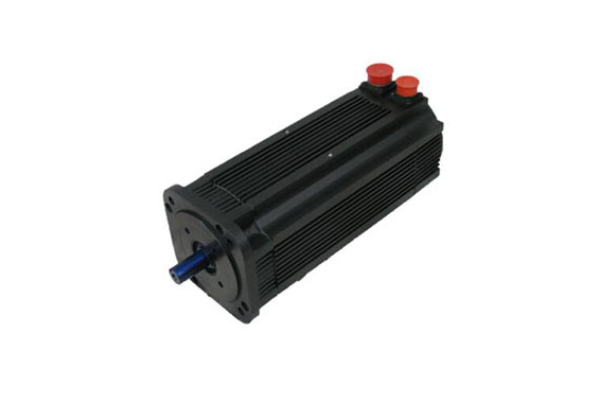

1326AB-B720E-21 伺服电机采用2英寸永磁组设计

【英文介绍】

The 1326AB-B720E-21 servo motor is an Allen-Bradley servo motor rated at 3500 RPM. It is designed and manufactured as part of the Allen-Bradley 1326AB series of servo motors. Applications of the 1326AB series servo motors include metal forming, packaging, automotive and machine tool applications. The 1326AB-B720E-21 servo motor offers speeds of 380 and 460 RPM at 3,000 volts and 3,500 volts AC, respectively. Other motor specifications include 27.3 pounds of one-inch motor torque, 6.8 kilowatts of power output, and 0.14 lb-in-s2 rotor inertia. The 1326AB-B720E-21 servo motor is designed for the Allen-Bradley 1394 motor control system. The motor can be used with 2 different 1394 axis modules. For the Allen-Bradley AM50 and AM75 modules, the motor delivers 273 pounds of steady-state stall torque in one inch, while the AM518 module has a maximum stall torque of 50 pounds and the AM780 module has 75 pounds in one inch. For the AM50 and AM75 modules, the 1326AB-B720E-21 servo motor provides a continuous stall current of 17.5 amps, while the AM33 module has a maximum stall current of 2.50 amps and the AM50 module has a maximum stall current of 75 amps.

Mechanical specifications for the 1326AB-B720E-21 servo motor include a frame diameter of 194 mm, a magnet stack length of 20 mm and a motor weight of 102 LBS. IEC 72-1 metric flanges and rotary transformer based feedback are also available on the servo motor. Allen-Bradley recommends that the 1326AB-B720E-21 servo motor should be operated in an environment where the air temperature around the motor does not exceed 104 degrees Fahrenheit. The motor can be mounted vertically down or up. The extruded aluminum housing of the 1326AB-B720E-21 servo motor enables improved heat transfer. The motor's environmental protection rating is IP 65.

1326AB-B720E-21 伺服电机采用2英寸永磁组设计
