193-ECM-DNT 过载继电器 设备网络

【产品详情】

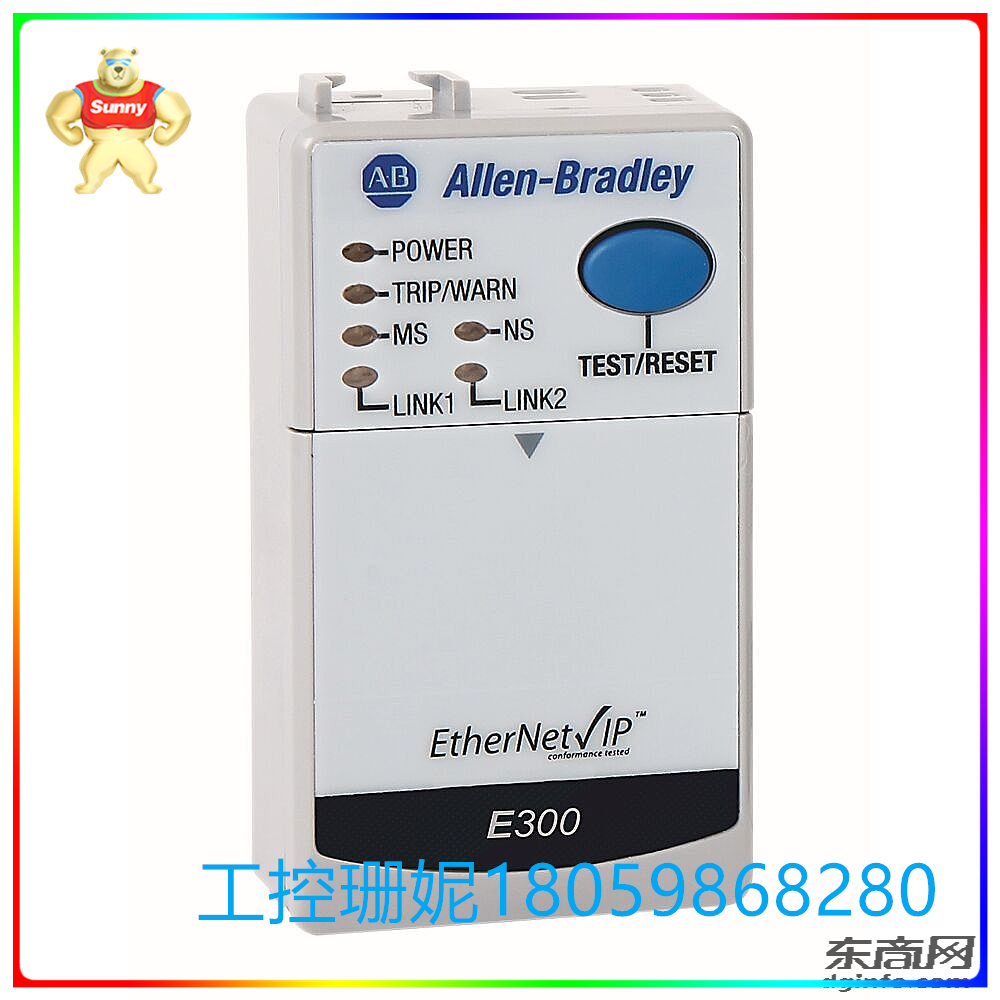

E300™ 和 E200™ 电子过载继电器是目前最新的过载保护产品。 其采用模块化设计，提供丰富的通信选项

和诊断信息，接线更简便，并且能够整合 Logix 技术，因此是自动化系统电机控制应用的理想之选。

E300/E200 继电器由感应、控制和通信模块组成。 每种模块都提供多种选择，可根据确切的应用需

求量身定制电子过载继电器。 可根据是否具有通信模块确定完整组装的设备是 E300 还是 E200 过载

继电器

特性

E300/E200 电子过载继电器是目前最新的过载保护产品。其采用模块化设计，提供丰富的通信选项和诊断信息，接线更简便，

并且能够整合 Logix 技术，因此是自动化系统电机控制应用的理想之选。

E300 过载继电器提供多种通信选项。除双端口 EtherNet/IP 连接外，继电器现在还支持 DeviceNet （单端口）。

E200 过载继电器（使用参数配置模块）是另一种通信模块选件，适用于未连接网络（远程应用）的电子电机过载保护应用。

E200 过载继电器属于 E300 产品系列，可使用 Connected Components Workbench 软件进行配置。 E200 继电器具有一个 B 型

USB 接口，三个可用于为应用设置 FLA 的转盘，以及一个可用于选择脱扣等级和功能的 8 位 DIP 开关。

注：在本文档中， E300 和 E200 基本可以互换。配置有 193-ECM-PCM 通信选件的过载系统与 E200 组件相关。

有关本产品操作和维护的详细信息，请参阅用户手册，出版号 193-UM015

193-ECM-DNT 过载继电器 设备网络

【英文介绍】

E300™ and E200™ electronic overload relays are the latest overload protection products available today. Its modular design provides a wealth of communication options

With easier wiring and diagnostic information, and the ability to integrate Logix technology, it is ideal for motor control applications in automated systems.

The E300/E200 relay consists of sensing, control and communication modules. Each module offers a variety of options, depending on the exact application needs

Tailor made electronic overload relays. It is possible to determine whether a fully assembled device is E300 or E200 overloaded depending on whether it has a communication module

relay

peculiarity

E300/E200 electronic overload relay is the latest overload protection product. Its modular design provides a wealth of communication options and diagnostic information, easier wiring,

It also integrates Logix technology, making it ideal for motor control applications in automated systems.

The E300 overload relay offers a variety of communication options. In addition to dual-port EtherNet/IP connectivity, relays now also support DeviceNet (single-port).

The E200 overload relay (using the parameter configuration module) is another communication module option for electromotor overload protection applications that are not connected to a network (remote applications).

The E200 overload relay belongs to the E300 product family and can be configured using the Connected Components Workbench software. The E200 relay has a Type B

USB interface, three turntables that can be used to set the FLA for the application, and an 8-bit DIP switch that can be used to select trip levels and functions.

Note: In this document, E300 and E200 are basically interchangeable. Overload systems configured with 193-ECM-PCM communication options are associated with E200 components.

For more information on the operation and maintenance of this product, please refer to the User Manual, Publication No. 193-UM015
