150-C85NBD  智能电机控制器 软启动器 SMC-3 系列

【产品详情】

产品详细信息

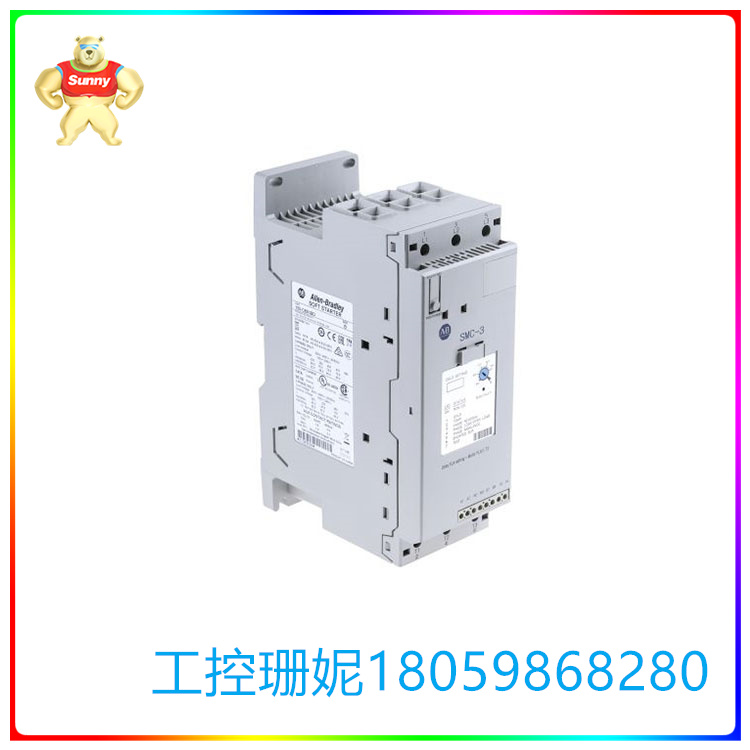

Allen Bradley SMC-3 控制器

Allen Bradley SMC-3 固态软启动器是低电压，紧凑且经济实惠的智能电动机控制器，具有真正的三相控制，可实现卓越的速度控制，并可实现更平稳，更安全的电动机启动和停止。SMC-3 包括过载保护，一体式旁通以及电动机和系统诊断，为您提供灵活的电动机控制解决方案，可减少停机时间并提高生产率。

当电动机达到全速以生成有效减少热时，嵌入式旁路会自动关闭。用于快速诊断， SMC-3 还具有保持测试 / 按下重置按钮，可检测故障并使设备重置。LED 显示屏提供即时状态指示，并有助于故障诊断。由于其方便的紧凑型尺寸，此设备使用更少的面板空间，且易于安装。DIP 开关可确保设置高效且安全，因为它们允许设置启动 / 停止剖面，内置过载，连接类型，跳闸等级和辅助触点特性。

SMC-3 集成在您的电动机控制系统中，由于启动扭矩减小，可减少对机械组件的应力 / 冲击，有助于延长设备的使用寿命。当线路和电动机诊断检测到单相条件时，它可防止机器损坏。由于启动期间 Peak 电流降低，系统维护减少，从而降低了运营成本。

Allen Bradley 提供一系列智能电动机启动器，可确保可靠的高性能和精密性，为您的应用提供持久的解决方案。

特点和优势：

•由于简单的用户界面，安装快速，轻松

•包括内置硅控整流器 (SCR) 旁路 / 运行接触器

•提供 3 至 480 A 电流范围，以满足您的要求

•使用额定电压： 200…690V 交流， 50/60 Hz

•包括五种启动和停止模式

•提供嵌入式可编程电子电动机过载保护 (DIP 开关可选 - 跳闸等级 10 ， 15 或 20)

•包括保持测试 / 按下重置按钮，可进行故障查找和简单重置，从而减少停机时间

•使用 DIP 开关简化和安全设置

•通过 Connected Components Workbench ™软件编程

•设计用于与 Allen-Bradley MCS 系列完全集成

应用：

泵

输送机

风扇

电梯

混频器

冷却器

其他信息：

框架尺寸 1：宽 45mm；3 相控制，推动软启动能力高达 20 kW

框架尺寸 2：宽 72 mm；3 相控制，推动软启动能力高达 45 kW

七级额定值：3A 至 37 A

相位旋转检查

两个额定控制电压： 418-6934 24 V 交流/直流和 418-6861 100 V 至 240 V 交流。50/60 Hz，覆盖 0 至 40 ℃

DIP 开关——可选择启动方法（软启动 2 至 15 秒，限流，踢动启动）和停止方法（软停止为启动时间的 100%、200% 或 300%，滑行到停止）

注意：

kW 额定值基于电流限制值 350%。 产品应始终按马达满载电流选择

150-C85NBD  智能电机控制器 软启动器 SMC-3 系列

【英文介绍】

Product Details

Allen Bradley SMC-3 controller

The Allen Bradley SMC-3 Solid State Soft Starter is a low voltage, compact and affordable smart motor controller with true three-phase control for superior speed control and smoother, safer motor start and stop. The SMC-3 includes overload protection, integrated bypass, and motor and system diagnostics to give you a flexible motor control solution that reduces downtime and increases productivity.

When the motor reaches full speed to generate effective heat reduction, the embedded bypass automatically shuts off. For quick diagnosis, the SMC-3 also has a hold test/press reset button that detects faults and resets the device. LED display provides real-time status indication and AIDS in fault diagnosis. Due to its convenient compact size, this device uses less panel space and is easy to install. DIP switches ensure efficient and safe setup as they allow setting start/stop profiles, built-in overloads, connection types, trip levels and auxiliary contact characteristics.

Integrated into your motor control system, the SMC-3 reduces stress/impact on mechanical components due to reduced starting torque, helping to extend the service life of the equipment. It prevents machine damage when single-phase conditions are detected by line and motor diagnostics. Due to lower Peak current during start-up, system maintenance is reduced, resulting in lower operating costs.

Allen Bradley offers a range of intelligent motor starters that ensure reliable high performance and precision to provide a lasting solution for your application.

Features and advantages:

• Installation is fast and easy thanks to the simple user interface

• Includes built-in silicon controlled rectifier (SCR) bypass/run contactor

• Current range from 3 to 480 A is available to meet your requirements

• Rated voltage: 200... 690V AC, 50/60 Hz

• Includes five start and stop modes

• Provides embedded programmable electronic motor overload protection (DIP switch optional - trip class 10, 15 or 20)

• Includes holding the test/pressing the reset button for trouble-finding and simple resets to reduce downtime

• Simplify and secure setup with DIP switches

• Programming via Connected Components Workbench ™ software

• Designed for full integration with Allen-Bradley MCS series

Applications:

pump

conveyor

fan

elevator

mixer

cooler

Additional information:

Frame size 1: width 45mm; 3 phase control, push soft start capability up to 20 kW

Frame size 2: width 72 mm; 3 phase control, push soft start capability up to 45 kW

Grade 7 ratings: 3A to 37A

Phase rotation check

Two rated control voltages: 418-6934 24 V AC/DC and 418-6861 100 V to 240 V AC. 50/60 Hz, covering 0 to 40 ℃

DIP switch - optional start method (soft start 2 to 15 seconds, current limiting, kick start) and stop method (soft stop 100%, 200% or 300% of start time, slide to stop)

Attention:

The kW rating is based on 350% of the current limit. Products should always be selected by motor full load current
