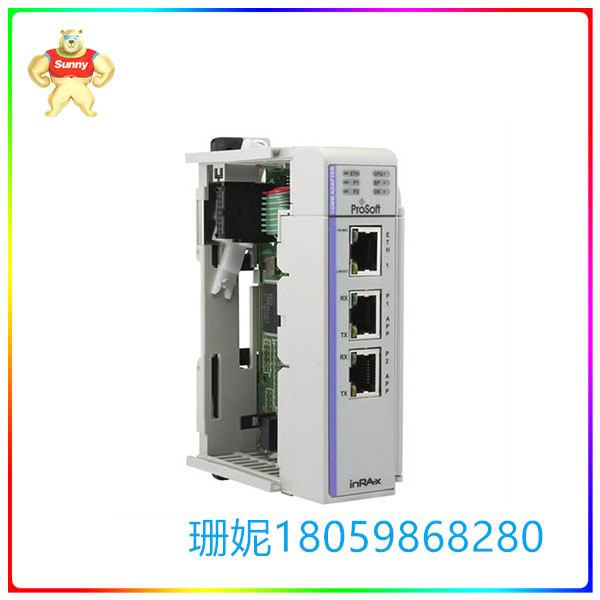

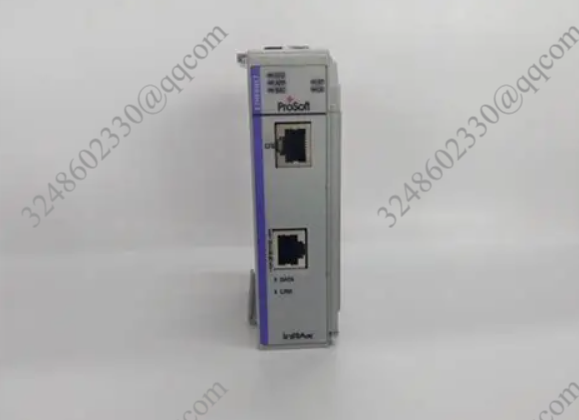

MVI69E-GSC 增强型通信模块

【产品详情】

通用 ASCII 串行增强型通信模块

MVI69E-GSC

MVI69E-GSC 通用 ASCII 串行接口模块是一种快速简便的方法，可将两个完全可配置的 ASCII 通信端口添加到 CompactLogix / MicroLogix™™ 平台，而无需消耗处理器的前端口或占用宝贵的处理时间。

MVI69E-GSC模块是用于CompactLogix / MicroLogix平台的单插槽背板兼容解决方案。该模块具有两个功能强大且完全可配置的 ASCII 通信端口，每个端口都支持发送和接收大型 ASCII 字符串。

通过在处理器中实现一些支持梯形逻辑，支持ASCII通信的许多不同设备可以集成到CompactLogix / MicroLogix平台中。

特点和优点

单插槽 - 兼容 1769 背板

该模块被识别为输入/输出模块，并可以访问处理器内存，以便在处理器和模块之间传输数据

梯形图逻辑用于模块存储器和处理器控制器标签之间的数据传输。包括带有AOI的示例梯形图文件

从下载到模块的配置文本文件中获取的配置数据。

支持 CompactLogix 和 MicroLogix 1500 LRP 控制器，但 1769-QBFC1B、1769-L16x 和 1769-L18x 除外

规格

ASCII 通信端口 1 和 2（PRT1、PRT2）

两个端口都能够发送和/或接收 ASCII 字符串。每个端口均可单独配置：

波特率：110 至 115.2K 波特

奇偶校验：无、偶数、奇数

停止位：1 或 2

数据位：5 至 8

RTS 开/关定时：0 到 65535 毫秒

最小响应延迟：0 到 65535 毫秒

握手（可选）

硬件： RTS/CTS， DTR/DSR

软件：XON/XOFF

支持 ASCII 字符串，最大支持 4096 个字符

全硬件握手控制提供无线电、调制解调器和多点支持

用户可定义的模块存储器使用，支持多达 4000 个寄存器与控制处理器之间的存储和传输

模块错误和状态条件返回到处理器以进行诊断

与模块相关的所有数据都包含在带有定义对象的单个控制器标签中，以简化监控和与模块的接口

模块通信数据通过处理器中预定义的用户数据类型传输到模块

MVI69E-GSC 增强型通信模块

【英文介绍】

Generic ASCII serial enhanced communication module

MVI69E-GSC

The MVI69E-GSC Universal ASCII Serial Interface Module is a quick and easy way to add two fully configurable ASCII communication ports to the CompactLogix/MicroLogix™ platform without consuming the processor's front port or taking up valuable processing time.

The MVI69E-GSC module is a single-slot backplane compatible solution for the CompactLogix/MicroLogix platform. The module has two powerful and fully configurable ASCII communication ports, each of which supports sending and receiving large ASCII strings.

By implementing some support for ladder logic in the processor, many different devices that support ASCII communication can be integrated into the CompactLogix/MicroLogix platform.

Features and advantages

Single slot - Compatible with 1769 backplane

The module is recognized as an input/output module and has access to processor memory to transfer data between the processor and the module

Ladder logic is used for data transfer between module memory and processor controller labels. Includes a sample ladder diagram file with AOI

The configuration data obtained from the configuration text file downloaded to the module.

CompactLogix and MicroLogix 1500 LRP controllers are supported, with the exception of 1769-QBFC1B, 1769-L16x, and 1769-L18x

specification

ASCII communication ports 1 and 2 (PRT1, PRT2)

Both ports are capable of sending and/or receiving ASCII strings. Each port can be configured individually:

Baud rate: 110 to 115.2K baud

Parity check: None, even number, or odd number

Stop bit: 1 or 2

Data bits: 5 to 8

RTS On/Off timing: 0 to 65535 ms

Minimum response delay: 0 to 65535 ms

Handshake (optional)

Hardware: RTS/CTS, DTR/DSR

Software: XON/XOFF

The value can contain a maximum of 4096 ASCII characters

Full hardware handshake control offers radio, modem, and multipoint support

User definable module memory usage that supports storage and transfer between up to 4000 registers and the control processor

Module errors and status conditions are returned to the processor for diagnosis

All data related to the module is contained in a single controller label with defined objects to simplify monitoring and interface with the module

The module communication data is transmitted to the module via a predefined user data type in the processor
