1394-SR9A 外部分流电阻器套件 分流模块

【产品详情】

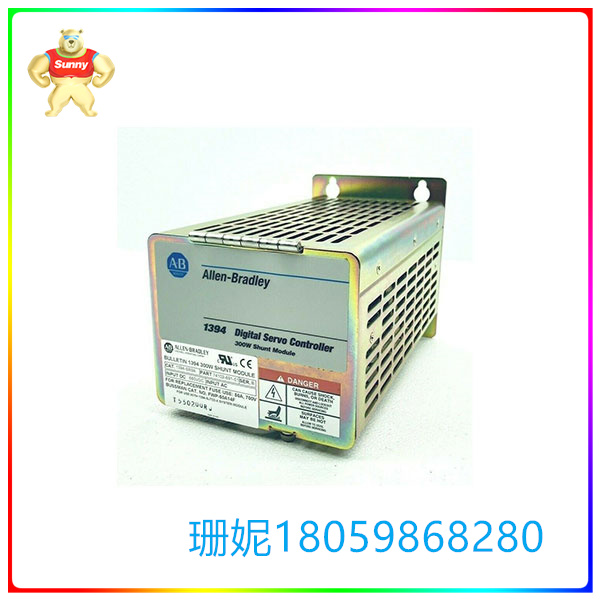

1394- sr9af外部分流电阻器套件或分流模块已由艾伦-布拉德利制造，作为艾伦-布拉德利1394系列设备和系统的附件。一些1394系列设备没有自己的分流电阻模块，而其他设备有分流电阻模块，但它们也经常处理超过内置分流模块容量的应用负载。对于这两种设备，1394-SR9AF外部分流电阻套件是必不可少的配件。它会耗散多余的能量，否则会损坏一个超载的系统，这个系统本身没有办法耗散能量，或者正在经历比它能处理的更多的能量。

Allen-Bradley 1394-SR9AF外部分流电阻套件是B系列分流电阻套件，它使用Bussman FWP-50A14F熔断器。它是UL和cUL上市和CE认证，用于世界许多地方的各种行业。1394-SR9AF外部分流电阻套件在发货时重约8磅，并且不附带风扇。其额定功率为16万瓦峰值功率和900瓦连续功率。其额定电阻为4欧姆。当不使用时，该分流模块可以存储在清洁干燥的地方，非冷凝相对湿度为5%至95%，温度范围在32至149华氏度之间，大气中没有腐蚀性物质。该1394- sr9af外部分流电阻套件和1394系统，它是不应该安装或在工业环境中使用的环境温度高于122华氏度的一部分。

1394-SR9A 外部分流电阻器套件 分流模块

【英文介绍】

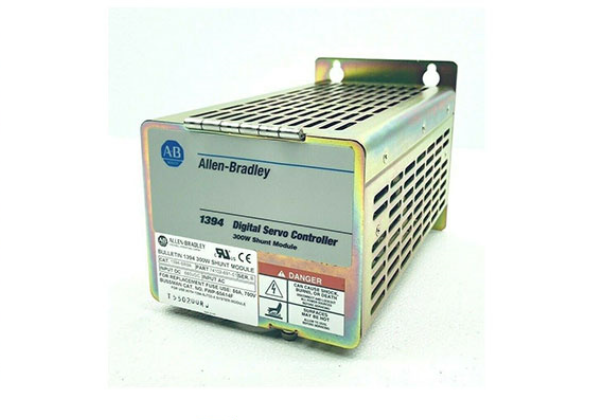

The 1394-SR9AF external shunt resistor kit or shunt module has been manufactured by Allen Bradley as an accessory to the Allen Bradley 1394 series of equipment and systems. Some 1394 series devices do not have their own shunt resistance module, while others do, but they also often handle application loads that exceed the capacity of the built-in shunt module. For both devices, the 1394-SR9AF external shunt resistor kit is an essential accessory. It dissipates excess energy that would otherwise damage an overloaded system that has no way of dissipating energy on its own, or is experiencing more energy than it can handle.

The Allen-Bradley 1394-SR9AF external Shunt Resistor kit is a B-series shunt resistor kit that uses a Bussman FWP-50A14F fuse. It is UL and cUL listed and CE certified for use in various industries in many parts of the world. The 1394-SR9AF external shunt resistor kit weighs about 8 pounds when shipped and does not come with a fan. It is rated at 160,000 watts peak power and 900 watts continuous power. Its rated resistance is 4 ohms. When not in use, the shunt module can be stored in a clean, dry place with a non-condensing relative humidity of 5 to 95 percent, a temperature range of 32 to 149 degrees Fahrenheit, and no corrosive substances in the atmosphere. The 1394-SR9AF external shunt resistor kit and 1394 system are not part of an industrial environment that should be installed or used at ambient temperatures higher than 122 degrees Fahrenheit.

1394-SR9A 外部分流电阻器套件 分流模块
