1394-SJT22-A 涡轮增压系统模块 多轴运动控制系统

【产品详情】

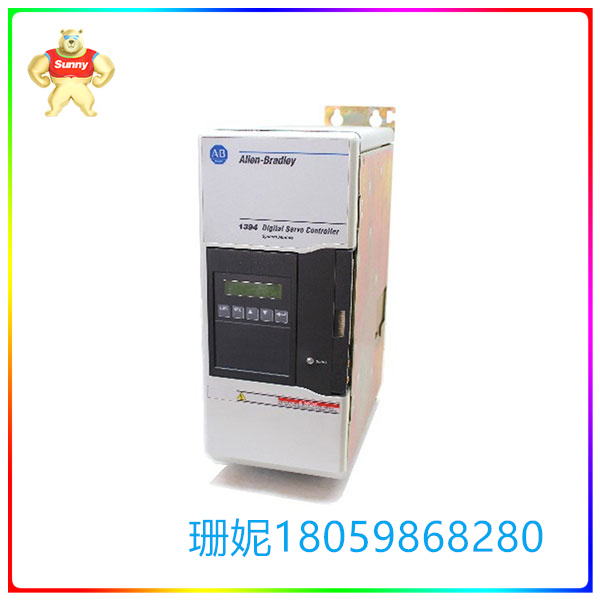

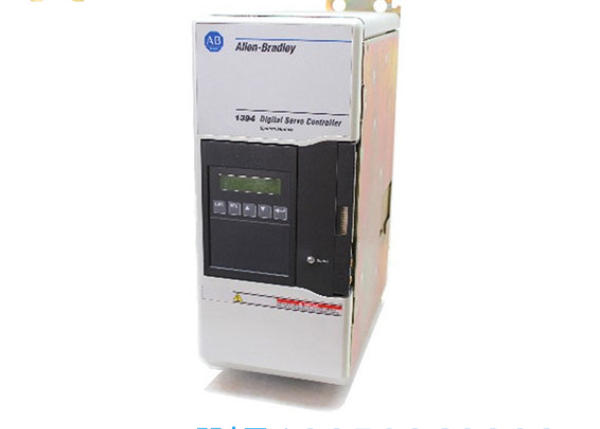

1394- sjt22 - a是1394 GMC涡轮增压系统模块，是艾伦-布拉德利的1394多轴运动控制系统的一部分。该系统模块基本用于模拟伺服系统，并提供带有+/- 10VDC接口的数字伺服驱动器。

系统模块安装在1394组件的最左边，其中包括轴模块，总线连接器和终端电阻。每个模块都是通过滑动锁机制和紧固件安装的，它们彼此精确对齐。

本系统模块采用RS232 / 422通讯方式，支持DH485通讯协议。它可以选择安装远程I/O通信(RIO)和AxisLink通信接口。

当在1394系统内安装此系统模块或任何其他产品时，安装位置的环境温度不得大于50.0摄氏度，并安装在平坦，稳定的垂直表面上。安装面板应具有最小的冲击和振动，环境应无湿气、油污、灰尘和腐蚀性气体。

这个系统模块不带内部分流电阻。必须安装外部分流模块。兼容的分流电阻包括艾伦-布拉德利制造的1394-SR9A， -SR9AF， -SR36A或-SR36AF。分流模块产生大量的热量。由于热空气自然上升，可能受热空气影响的仪器或组件不得安装在外部分流模块的顶部。顶部间隙为254 mm(10.0英寸)，两侧为155 mm(6.1英寸)，包括系统模块的底部区域。

1394-SJT22-A模块是艾伦-布拉德利/罗克韦尔自动化公司的GMC涡轮增压系统模块。该模块具有32位中央处理器。此外，它还具有+/-10伏的直流模拟输入。该模块由交流电源供电，额定电压在380伏至460伏之间，频率为50至60赫兹。标称输出功率为17至22千瓦，母线电压额定在530伏特直流至680伏特直流。1394-SJT22-A系统模块与外置轴驱动接口时，推荐使用1394-DIM驱动接口模块。驱动器接口模块作为1394-SJT22-A模块和外部轴驱动器之间的接口。Allen-Bradley 1394- sjt22 -a模块属于Allen-Bradley 1394模块化多轴运动控制和驱动系统家族。与该系列中的其他模块一样，该模块提供了三相输入电源的直接连接线，高效的IGBT功率转换，以及滑动锁定模块到模块的连接系统。根据所使用的系统模块不同，可支持的最大轴数为4轴。其中轴可以连接到电机。Allen-Bradley 1394-SJT22-A模块是完全可编程的，并支持图形运动控制语言(GML)的配置。此外，该模块支持标准通信选项，如RS-232, RS-422和DH-485选项。通过具有涡轮选项，1394-SJT22-A模块执行程序比同一系列的标准模块快得多。

1394-SJT22-A 涡轮增压系统模块 多轴运动控制系统

【英文介绍】

The 1394-SJT22-A is a 1394 GMC turbocharging system module that is part of Alan Bradley's 1394 multi-axis motion control system. The system module is basically used for analog servo systems and provides digital servo drivers with +/ -10VDC interface.

The system module is installed on the far left of the 1394 assembly, which includes the shaft module, the bus connector, and the terminal resistor. Each module is mounted via a sliding lock mechanism and fasteners that are precisely aligned with each other.

This system module adopts RS232/422 communication mode and supports DH485 communication protocol. It has the option to install Remote I/O communication (RIO) and AxisLink communication interfaces.

When installing this system module or any other product in a 1394 system, the ambient temperature of the installation location must not be greater than 50.0 degrees Celsius, and the installation is on a flat, stable vertical surface. The installation panel should have minimal impact and vibration, and the environment should be free of moisture, oil, dust, and corrosive gases.

This system module has no internal shunt resistance. An external shunt module must be installed. Compatible shunt resistors include 1394-SR9A, -SR9AF, -SR36A or -SR36AF manufactured by Allen Bradley. The shunt module generates a lot of heat. Due to the natural rise of hot air, instruments or components that may be affected by hot air may not be installed on top of the external shunt module. The top clearance is 254 mm(10.0 in) and the sides 155 mm(6.1 in), including the bottom area of the system module.

The 1394-SJT22-A module is a GMC turbocharging system module from Allen Bradley/Rockwell Automation. The module has a 32-bit central processing unit. In addition, it has a DC analog input of +/-10 volts. The module is powered by an AC power supply with a voltage rating between 380 and 460 volts and a frequency of 50 to 60 Hz. The nominal output power is 17 to 22 kW, and the bus voltage is rated from 530 V DC to 680 V DC. When the 1394-SJT22-A system module and the external shaft drive interface, the 1394-DIM drive interface module is recommended. The driver interface module acts as the interface between the 1394-SJT22-A module and the external shaft driver. The Allen-Bradley 1394-SJT22-A module belongs to the Allen-Bradley 1394 family of modular multi-axis motion control and drive systems. Like the other modules in the series, this module offers a direct connection line to a three-phase input power supply, efficient IGBT power conversion, and a sliding lock module to module connection system. Depending on the system module used, the maximum number of axes that can be supported is 4. The shaft can be connected to the motor. The Allen-Bradley 1394-SJT22-A module is fully programmable and supports the configuration of Graphics Motion Control Language (GML). In addition, the module supports standard communication options such as RS-232, RS-422 and DH-485 options. By having a turbine option, the 1394-SJT22-A module executes programs much faster than standard modules in the same series.
